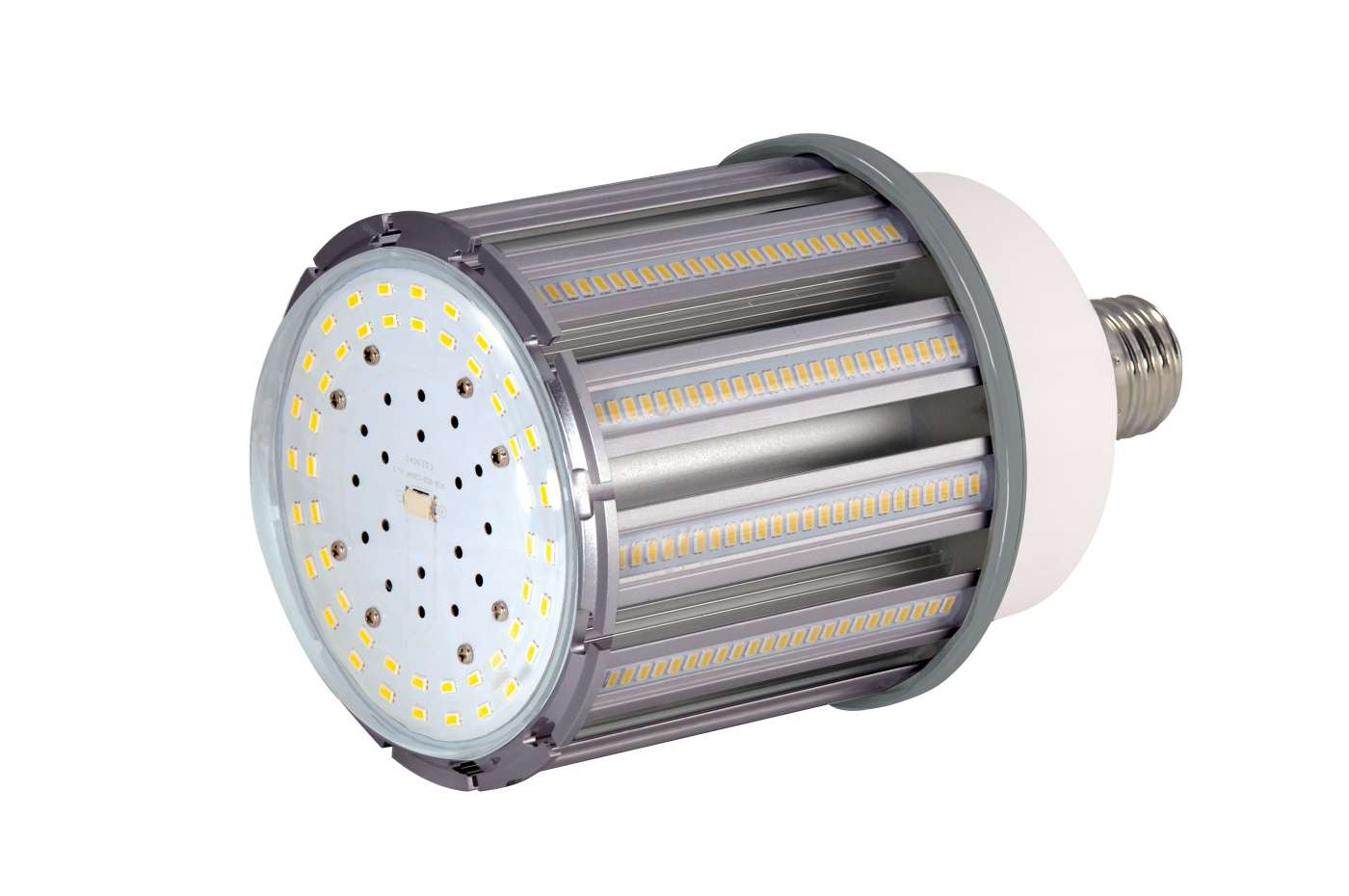

120W/LED/HID/5000K/100-277V EX - S9397
120W/LED/HID/5000K/100-277V EX - S9397
120W/LED/HID/5000K/100-277V EX - S9397
S9397

120W/LED/HID/5000K/100-277V EX

Discontinued - Suggested Replacement: S49397
  • 120 Watt - LED HID Replacement (up to 600 Watt)
  • 5000K
  • Mogul extended base
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S9397 SpecificationsS9397 Photometrics.iesHi-Pro LED High lumen, omni-directional lamps for industrial and commercial applications
Tools
Lighting Layout Analysis For S9397
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
120 Watt - LED HID Replacement (up to 600 Watt); 5000K; Mogul extended base; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Lamp FilamentLED
Fixture TypeCorncob

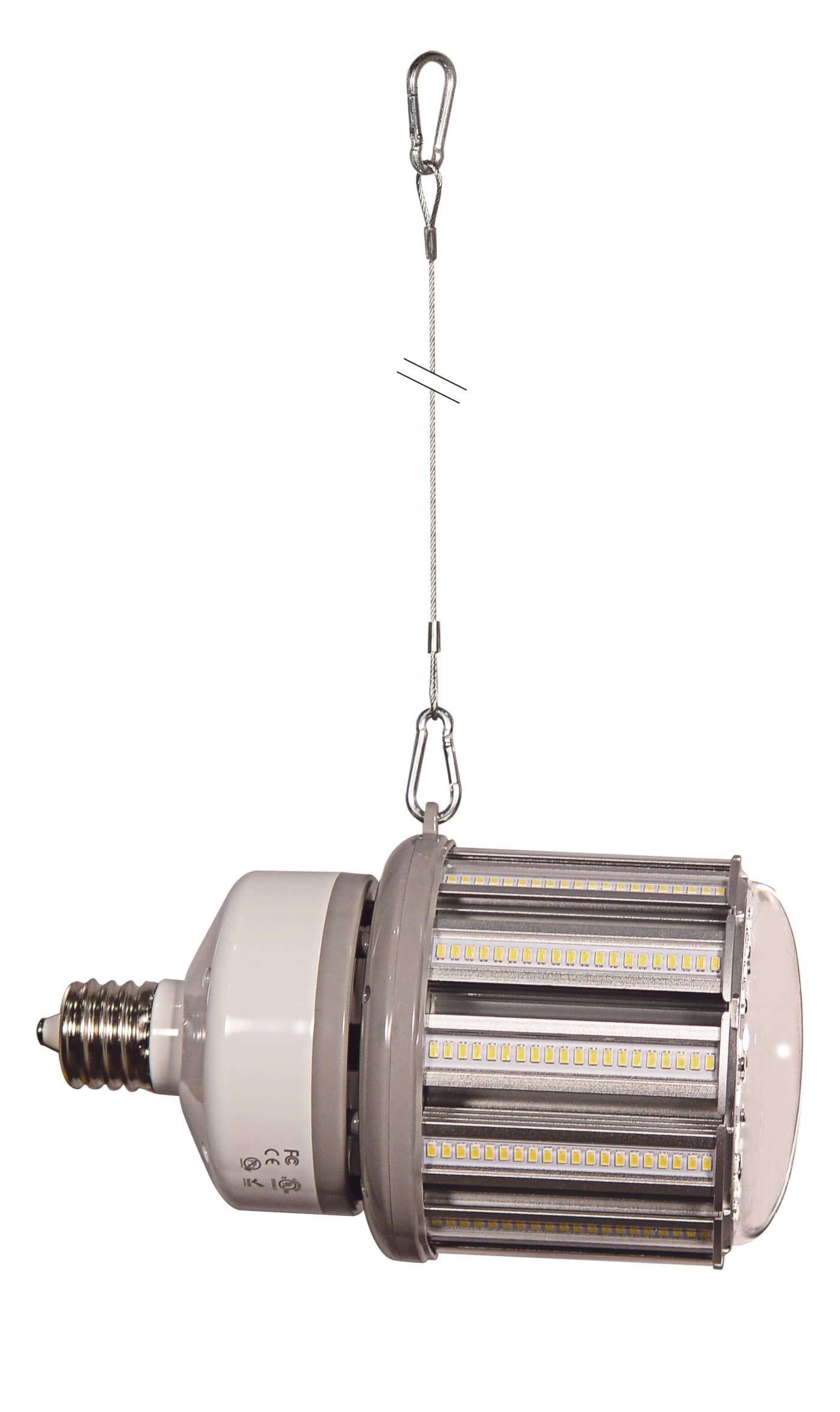

IncludesSafety chain
StatusObsolete
Surge ProtectionBuilt-in surge protection
Working VoltageAC 90-305V
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Amps1.200-0.433A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Minimum Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Operating PositionUniversal
Power Factor0.96
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv200W
Incandescent Equivalent750W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempNatural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +65C (+149F)
HID Equivalent600W
Lumens16000L
Volts120V-277V
Watts120W
Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhiteGrey
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps5.88
MOL10.38
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP65
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923093975
Case Cube1.729
Case Height12.68
Case Length15.35
Case Quantity4
Case UPC10045923093972
Case Weight21.38
Case Width15.35
EA Cube0.3781
EA Height11.93
EA Length7.4
EA Quantity1
EA Weight5.07
EA Width7.4
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length10.38
Web Width5.88
