SKU S9560 - Image 1
S9560

4.5A15/CL/LED/E26/27K/120V

Discontinued - Suggested Replacement: S12400

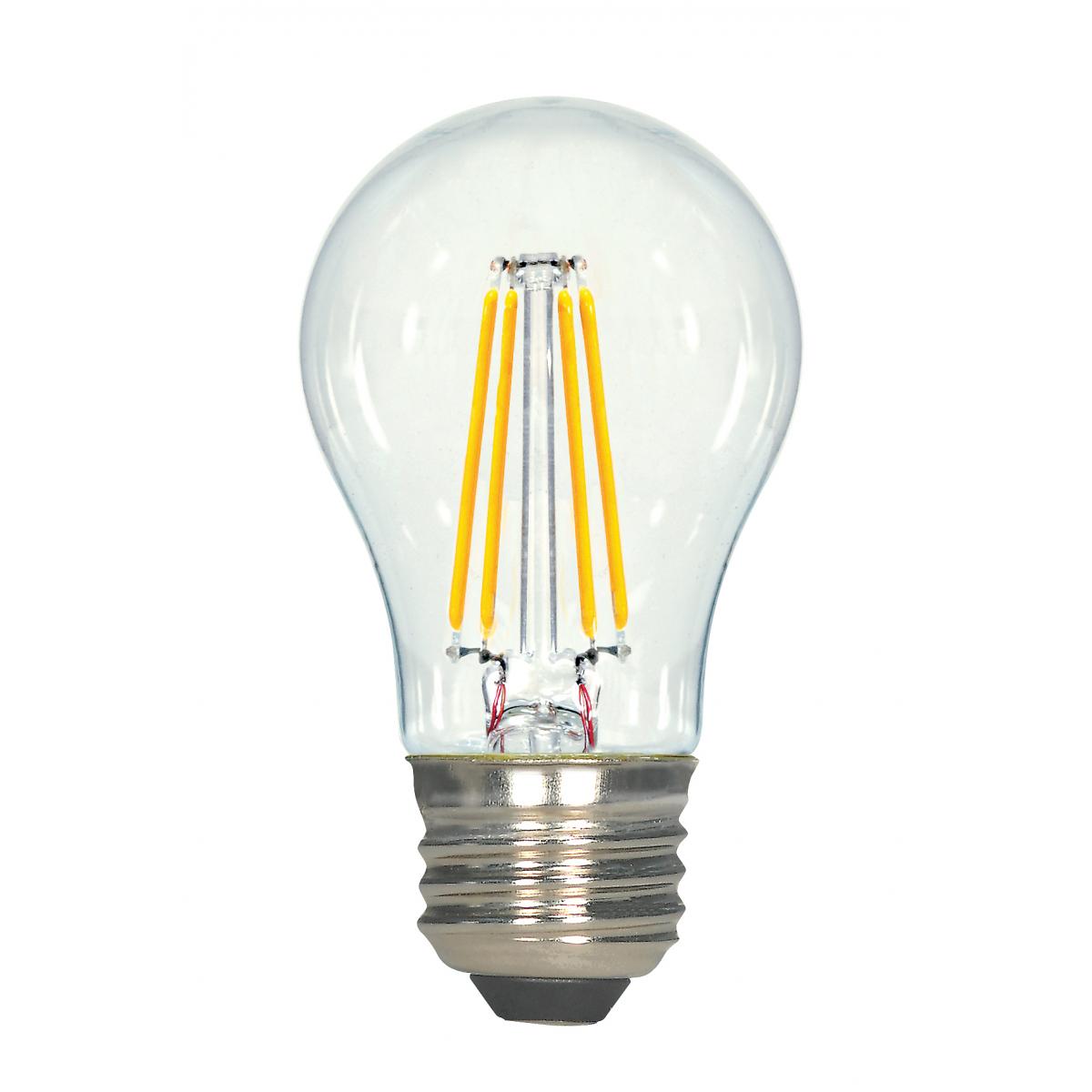

  • 4.5 Watt A15 LED Filament
  • Clear
  • Medium base
  • 2700K
  • 450 Lumens
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S9560 SpecificationsSA1760 LED Filament V2 PI Sheet LIT 3 25
Tools
Lighting Layout Analysis For S9560
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4.5 Watt A15 LED Filament; Clear; Medium base; 2700K; 450 Lumens; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED Filament
Fixture TypeType A
Product NotesReplaces up to 40 watt lamps; Shatterproof option available on request
StatusDiscontinued
StyleTraditional
Most Current GenerationS12400
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.038A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Operating PositionUniversal
Power Factor>.7
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Dimming TypeReverse Phase
Operating Temp-20C (-4F) to +45C (+113F)
Lumens450L
Volts120v
Watts4.5W
Physical
Lamp BaseMedium
FinishClear
ANSI BaseE26
Lamp TypeA15
MOD Lamps1.88
MOL3.38
Additional Info
Warranty2-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - <82 CRI
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923095603
Case Cube0.4956
Case Height6.1
Case Length14.21
Case Quantity24
Case UPC10045923095600
Case Weight5.62
Case Width9.88
EA Cube0.0104
EA Height4.13
EA Length2.09
EA Quantity1
EA Weight0.11
EA Width2.09
Inner Cube0.0876
Inner Height4.92
Inner Length6.73
Inner Quantity6
Inner UPC20045923095607
Inner Weight1.16
Inner Width4.57
Pack TypeBox
Web Length3.38
Web Width1.88
