S9566

7G40/CL/LED/E26/27K/120V

Discontinued - Suggested Replacement: S21252
  • 7 Watt G40 LED Filament
  • Clear
  • Medium base
  • 2700K
  • 810 Lumens
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S9566 SpecificationsSA1760 LED Filament V2 PI Sheet LIT 3 25SA1980 LEDFilamentLamps FullLine low res 8 3 22
Tools
Lighting Layout Analysis For S9566
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

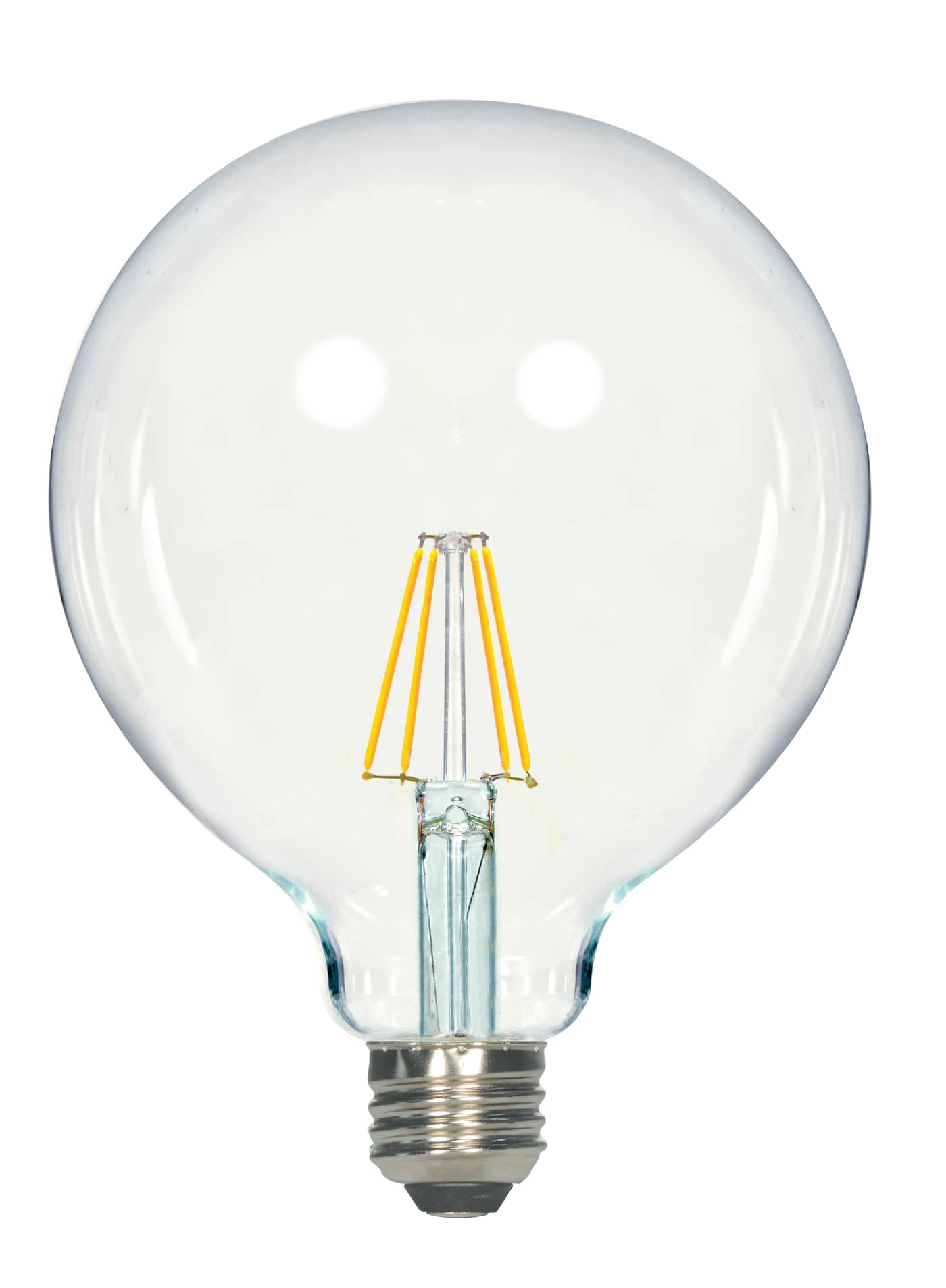

7 Watt G40 LED Filament; Clear; Medium base; 2700K; 810 Lumens; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED Filament
MaterialGlass / Metal
Fixture TypeGlobe
Product NotesReplaces up to 60 watt lamps; Shatterproof option available on request
StatusDiscontinued
Most Current GenerationS21252
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.058A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Operating PositionUniversal
Power Factor>.7
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Dimming TypeReverse Phase
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens810L
Volts120v
Watts7W
Physical
Lamp BaseMedium
FinishClear
ANSI BaseE26
Lamp TypeG40

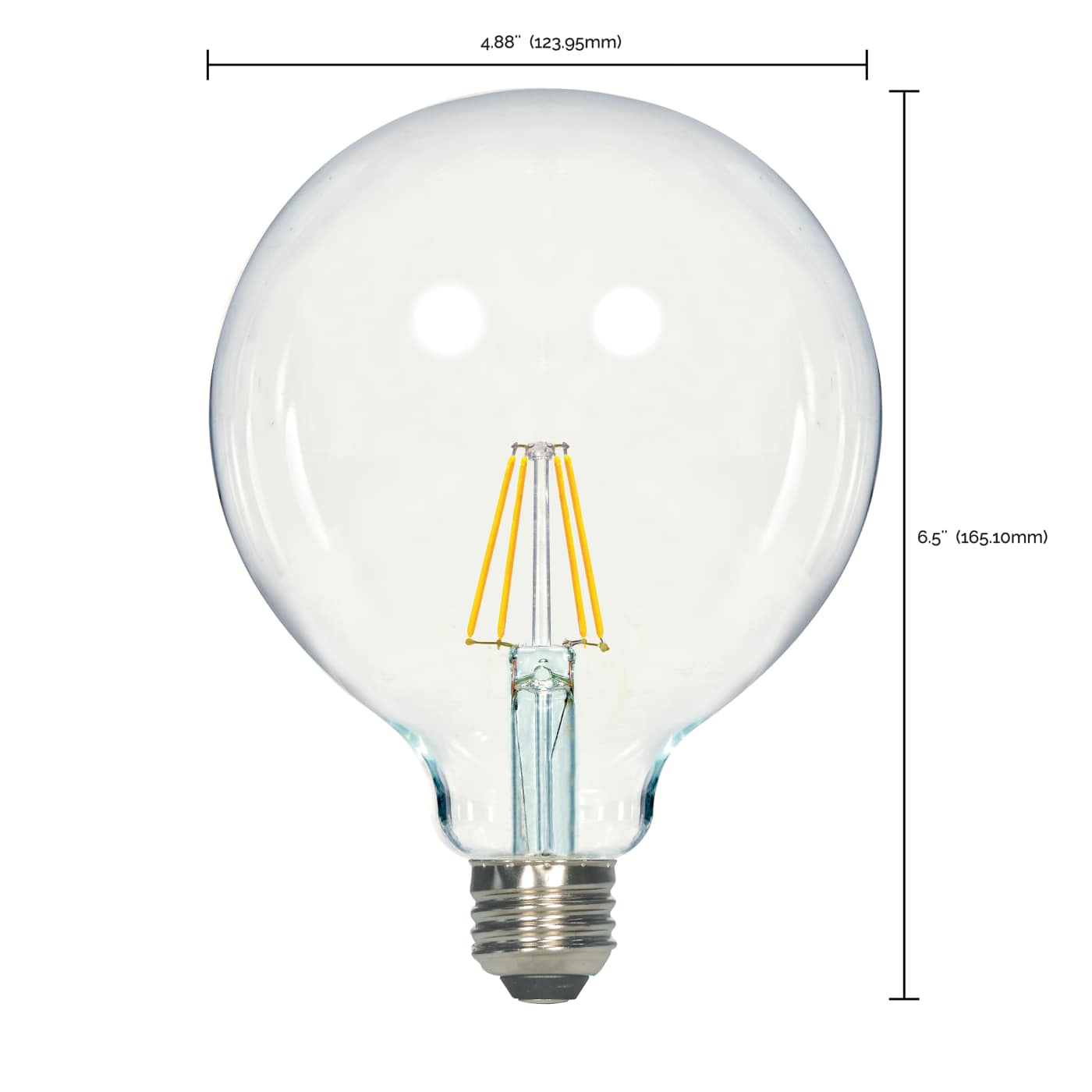

MOD Lamps4.88
MOL6.5
Additional Info
Warranty2-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - <82 CRI
CA T20 Compliant SubstituteS29877
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923095665
Case Cube2.0715
Case Height9.45
Case Length22.48
Case Quantity12
Case UPC10045923095662
Case Weight7.41
Case Width16.85
EA Cube0.1117
EA Height7.36
EA Length5.12
EA Quantity1
EA Weight0.18
EA Width5.12
Inner Cube0.8417
Inner Height8.27
Inner Length16.18
Inner Quantity6
Inner UPC20045923095669
Inner Weight0.53
Inner Width10.87
Pack TypeBox
Web Length6.5
Web Width4.88
