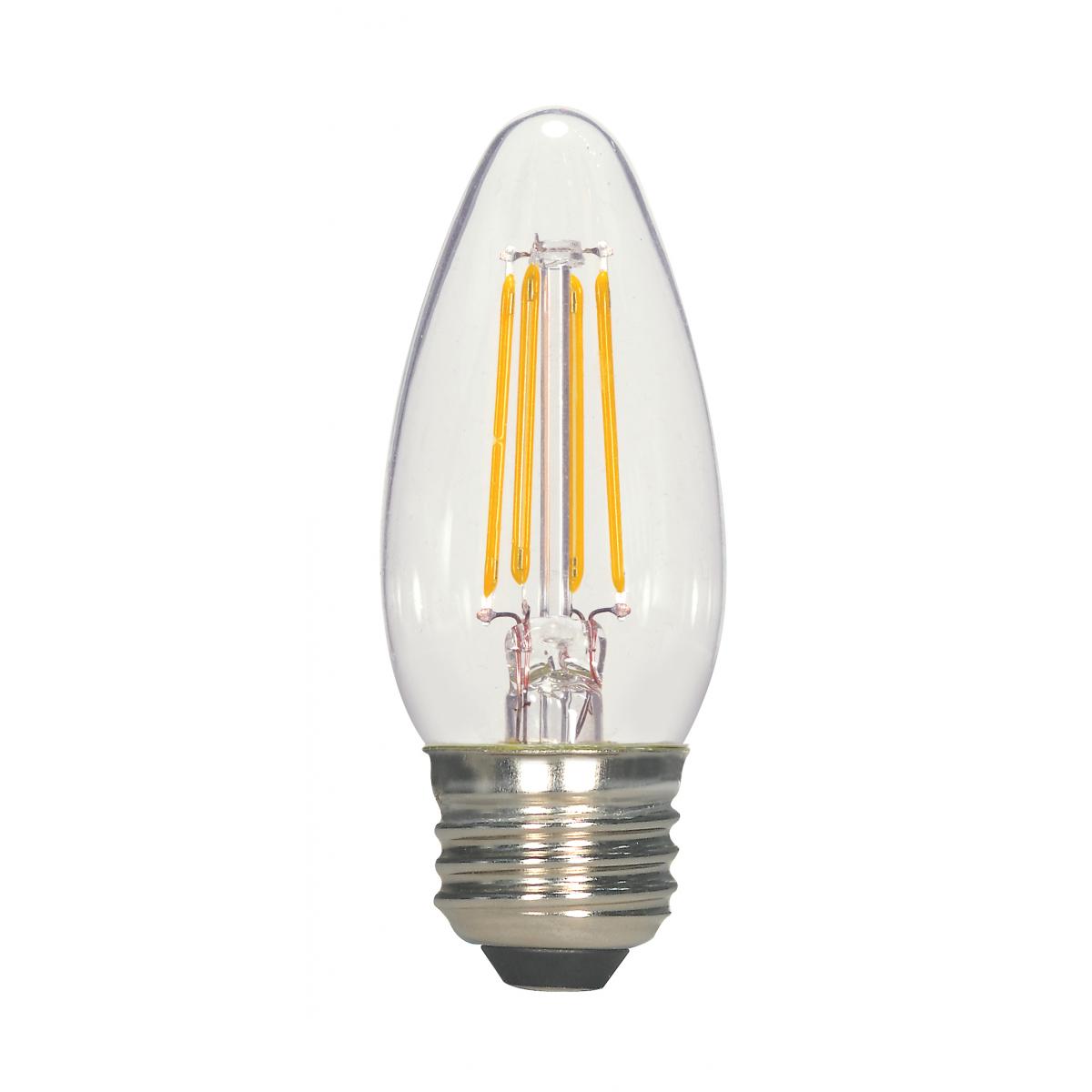

S9567

2.5W ETC/LED/27K/120V

  • 2.5 Watt B10 LED
  • Clear
  • Medium base
  • 2700K
  • 250 Lumens
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S9567 SpecificationsS9567 LFLSA1760 LED Filament V2 PI Sheet LIT 3 25
Tools
Lighting Layout Analysis For S9567
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
2.5 Watt B10 LED; Clear; Medium base; 2700K; 250 Lumens; 120 Volt
Products Specs
General
CompanySATCO
CA RegulationsNon-Compliant - <82 CRI
Lamp FilamentLED Filament
Fixture TypeCandle
Product NotesReplaces up to 25 watt lamps; Shatterproof option available on request
StatusDiscontinued
Most Current GenerationS21282
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.021A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent25W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Dimming TypeReverse Phase
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens200L
Volts120v
Watts2.5W
Physical
Lamp BaseMedium
FinishClear
ANSI BaseE26
Lamp TypeB11
MOD Lamps1.38
MOL3.5
Additional Info
Warranty2-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA T20 Compliant SubstituteS21284
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923095672
Case Cube0.3336
Case Height6.34
Case Length11.38
Case Quantity24
Case UPC10045923095679
Case Weight3.52
Case Width7.99
EA Cube0.0066
EA Height4.37
EA Length1.61
EA Quantity1
EA Weight0.02
EA Width1.61
Inner Cube0.0574
Inner Height5.16
Inner Length5.31
Inner Quantity6
Inner UPC20045923095676
Inner Weight0.63
Inner Width3.62
Pack TypeBox
Web Length3.5
Web Width1.38
