SKU S9570 - Image 1
S9570

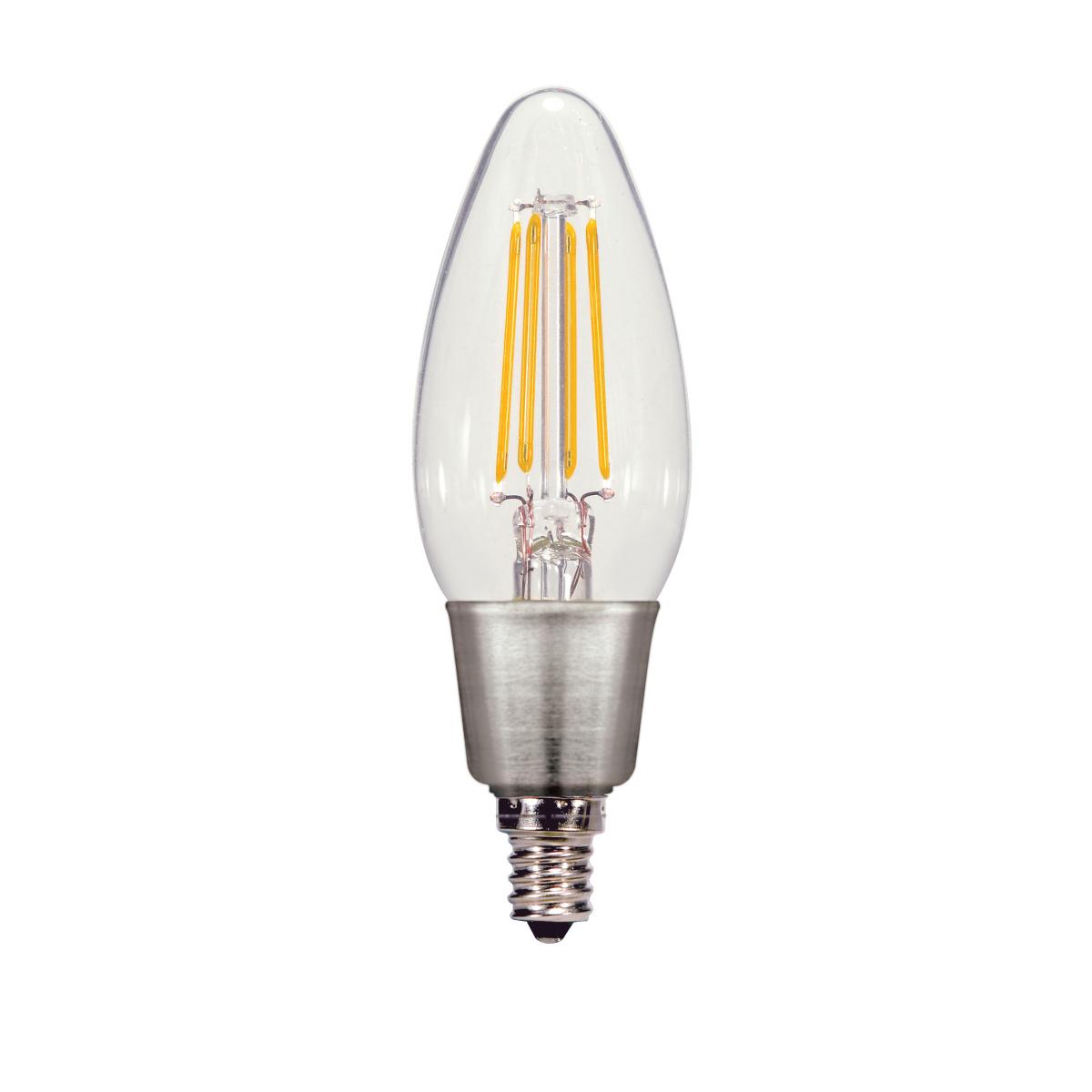

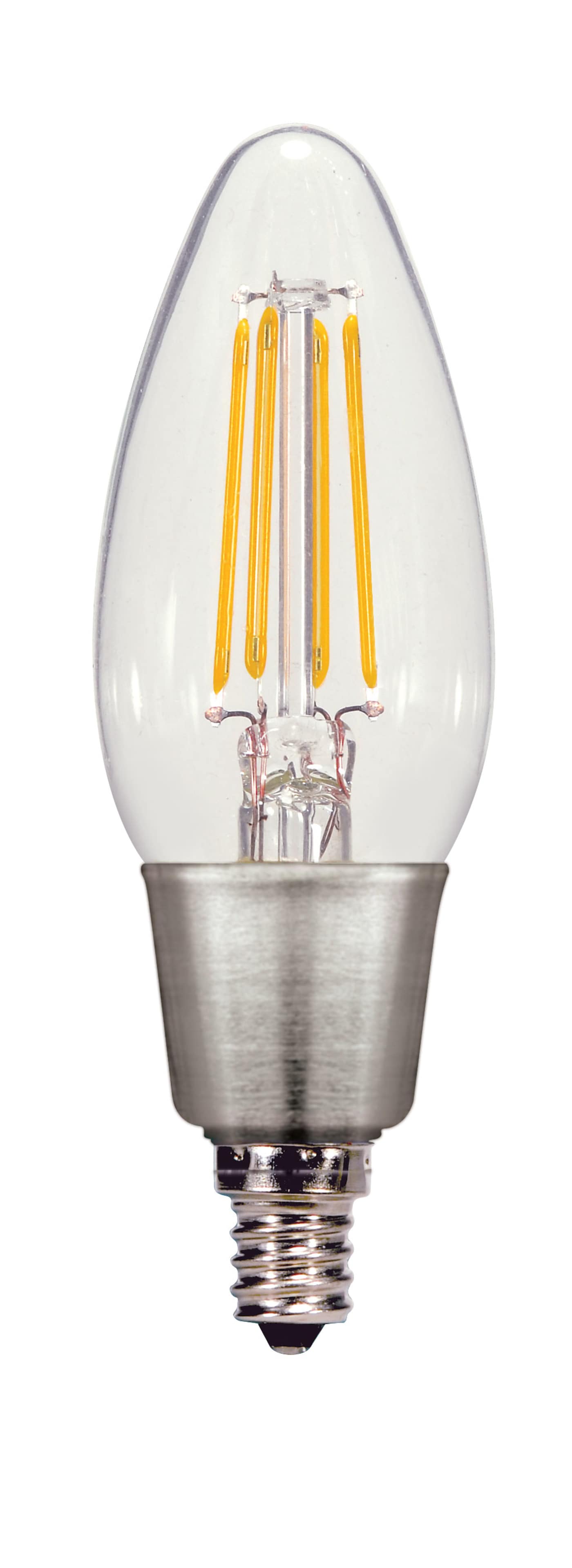

4.5W CTC/LED/27K/120V

Discontinued - Suggested Replacement: S21273
  • 4.5 Watt B11 LED Filament
  • Clear
  • Candelabra base
  • 2700K
  • 470 Lumens
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S9570 SpecificationsS9570 LFLSA1760 LED Filament V2 PI Sheet LIT 3 25
Tools
Lighting Layout Analysis For S9570
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4.5 Watt B11 LED Filament; Clear; Candelabra base; 2700K; 470 Lumens; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED Filament
Fixture TypeCandle
StatusDiscontinued
Most Current GenerationS21273
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.038A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Dimming TypeReverse Phase
Operating Temp-20C (-4F) to +45C (+113F)
Lumens470L
Volts120v
Watts4.5W
Physical
Lamp BaseCandelabra
FinishClear
Housing ColorSilver
ANSI BaseE12
Lamp TypeB11
MOD Lamps1.38
MOL4.31
Additional Info
Warranty2-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - <82 CRI
CA T20 Compliant SubstituteS29877
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923095702
Case Cube0.3562
Case Height6.77
Case Length11.38
Case Quantity24
Case UPC10045923095709
Case Weight3.52
Case Width7.99
EA Cube0.0072
EA Height4.8
EA Length1.61
EA Quantity1
EA Weight0.02
EA Width1.61
Inner Cube0.0622
Inner Height5.59
Inner Length5.31
Inner Quantity6
Inner UPC20045923095706
Inner Weight0.63
Inner Width3.62
Pack TypeBox
Web Length4.31
Web Width1.38
