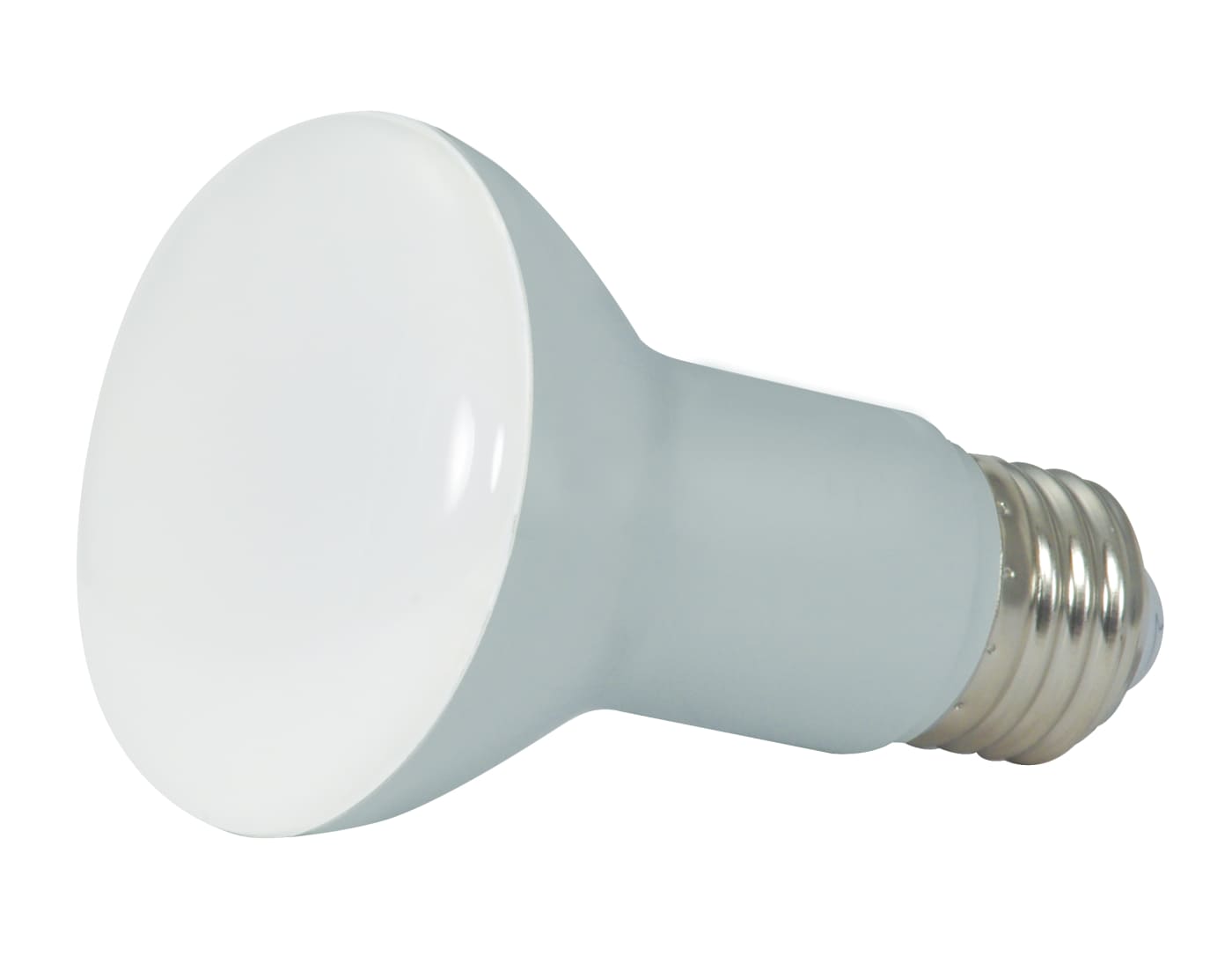

S9630

6.5R20/LED/2700K/525L/120V

6.5watt; LED R20; 2700K; 107 deg. beam spread; Medium base; 120V; Dimmable

Lights

S9630

6.5R20/LED/2700K/525L/120V

6.5watt; LED R20; 2700K; 107 deg. beam spread; Medium base; 120V; Dimmable

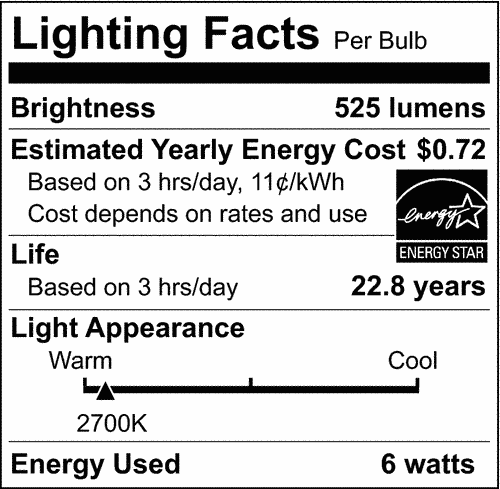

Specifications

General
StatusActive
Watts6.5
Incandescent Equivalent50
Volts120V
ShapeR20
BaseMedium
ANSI BaseE26
FinishFrosted White
CCT (Kelvin)2700
TemperatureWarm White
CRI83
Lumens525
Beam Spread107
DimmableYes Dimmable
Hours Rated25000
Lamp TypeReflector
TechnologyLED
Electrical
Watts6.5
Incandescent Equivalent50
Volts120V
CCT (Kelvin)2700
TemperatureWarm White
CRI83
Lumens525
CBCP180
Candlepower180
Beam Spread107
DimmableYes Dimmable
Dimmable Down To5
Power Factor0.92
Hours Rated25000
Operating Temperature-25C (-13F) to a maximum of +45C (+113F)

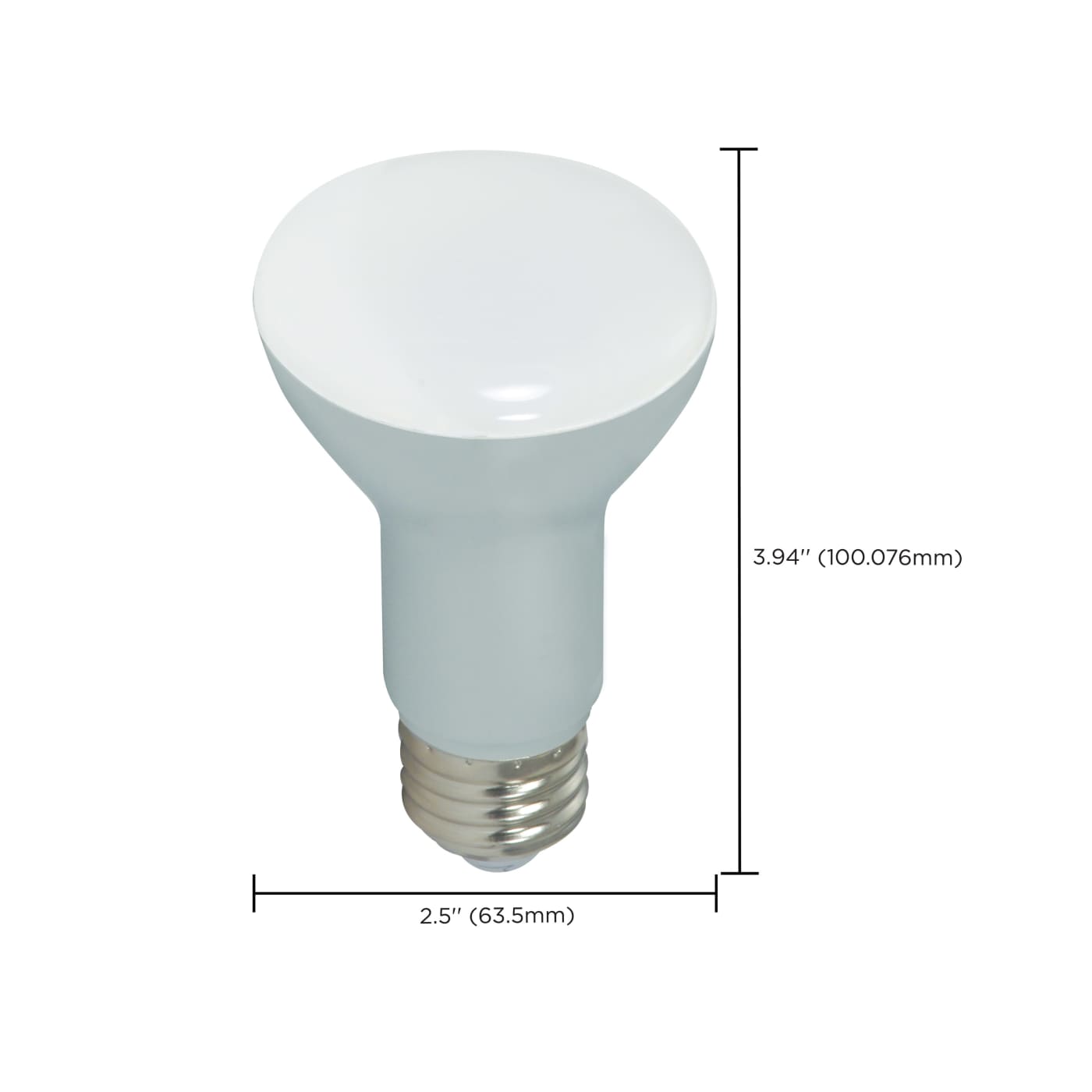

Physical
MOL3.94
MOD2.5
ShapeR20
BaseMedium
ANSI BaseE26
FinishFrosted White
Housing ColorGray
Additional Information
Enclosure RatingEnclosed Rated Lamp
Rated For Enclosed FixtureYes
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarYes
ES Unique IDESID-2263888
CEC StatusNon-Compliant
CEC Compliant SubstituteS9614
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923096303
Each Quantity1
Each Length (in.)2.60
Each Width (in.)2.60
Each Height (in.)4.25
Each Weight (lb.)0.19
Each Cube (CuFt.)0.02
Pack TypeBox
Inner UPC20045923096307
Inner Quantity6
Inner Length (in.)8.31
Inner Width (in.)5.59
Inner Height (in.)4.65
Inner Weight (lb.)1.28
Inner Cube (CuFt.)0.12
Case UPC10045923096300
Case Quantity24
Case Length (in.)12.05
Case Width (in.)8.98
Case Height (in.)10.43
Case Weight (lb.)5.60
Case Cube (CuFt.)0.63
×

Dimmer Compatibility

Dimmer Model Number Brand Website
SELV-300P Lutron Visit
DVCL-153P Lutron Visit
SCL-153P Lutron Visit
CTCL-153P Lutron Visit
DVELV-300P Lutron Visit
NTELV-300 Lutron Visit
HW-RPM-4A-120 Lutron Visit
HW-RPM-4U-120 Lutron Visit
GP-Card Lutron Visit
GT-5NEM Lutron Visit
GTJ-5NEM Lutron Visit
MRF2S-6ELV Lutron Visit
HQRD-10ND Lutron Visit
RRD-6NA Lutron Visit
HQRD-6NA Lutron Visit
RRD-HN6BRL Lutron Visit
HQRD-HN6BRL Lutron Visit
AYCL-153P Lutron Visit
MACL-153M Lutron Visit
MRF2-6ELV Lutron Visit
MSCL-OP153M Lutron Visit
PD-6WCL Lutron Visit
DVRP-253P Lutron Visit
CTRP-253P Lutron Visit
NTRP-250 Lutron Visit
PD-5NE Lutron Visit
VPE04-1LZ Leviton Visit
PHPM-WBX-120 Lutron Visit
×

Precautions

No precautions available at this time.
