Lights

S9672

36W/LED/HID/2700K/100-277V E26

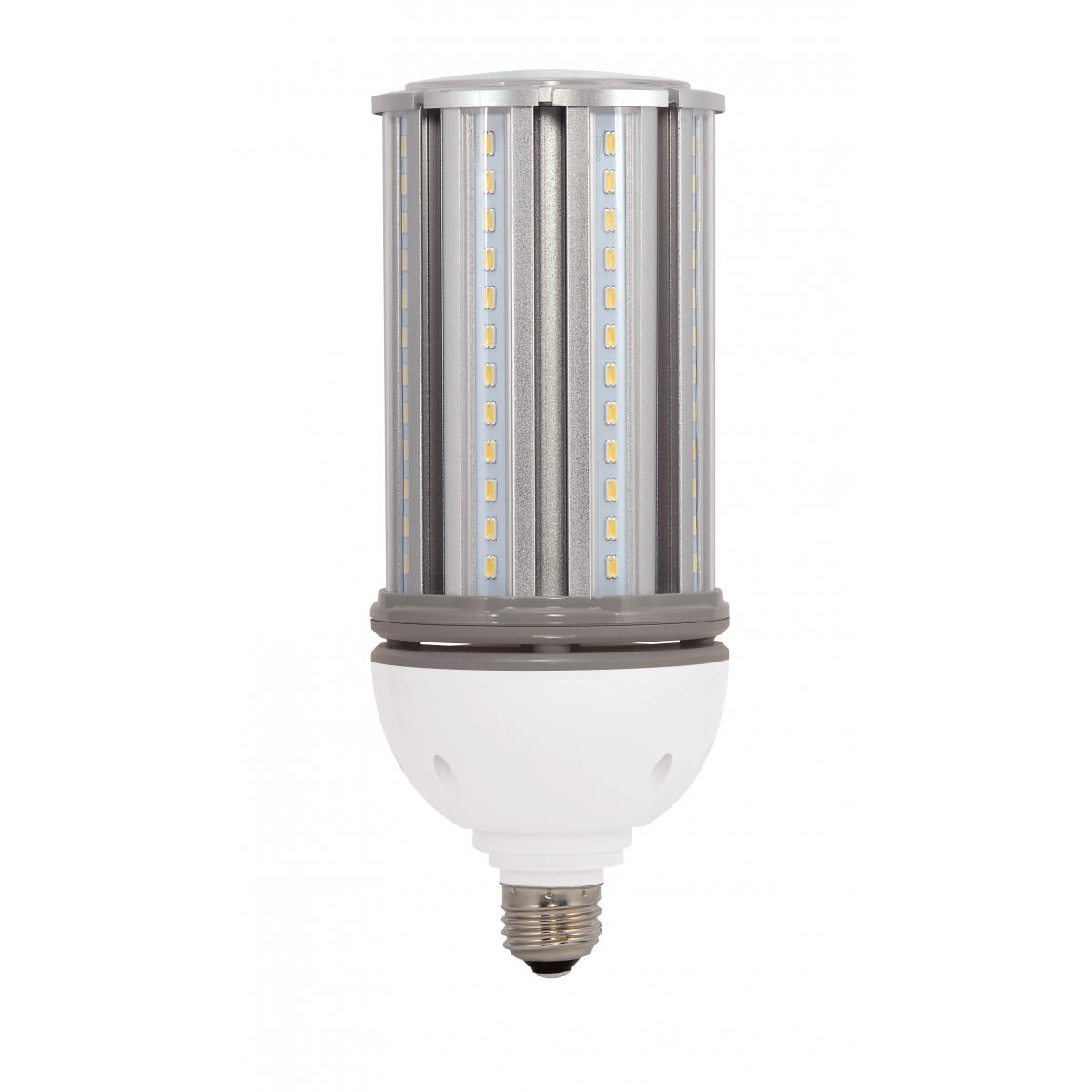

36 Watt - LED HID Replacement; 2700K; Medium base; 100-277 Volt

S9672 36W/LED/HID/2700K/100-277V E26

S9672

36W/LED/HID/2700K/100-277V E26

36 Watt - LED HID Replacement; 2700K; Medium base; 100-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS39672
Watts36
Incandescent Equivalent200
Fluorescent Equivalent55
HID Equivalent150
Volts100V-277V
ShapeCorncob
BaseMedium
ANSI BaseE26
CCT (Kelvin)2700
TemperatureWarm White
CRI80+
Lumens4390
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength 17.3 in. Width 9.25 in. Depth 9.25 in.
Ballasting RequirementsBallastby-pass-Directwireonly100-277V
Electrical
Watts36
Incandescent Equivalent200
Fluorescent Equivalent55
HID Equivalent150
Volts100V-277V
Ballasting RequirementsBallastby-pass-Directwireonly100-277V
Working VoltageAC 90-305V
Operating Frequency50/60 Hz
CCT (Kelvin)2700
TemperatureWarm White
CRI80+
Lumens4390
Beam Spread300
DimmableNon-Dimmable
Dimming TypeN/A
Power Factor>0.9
Hours Rated50000
Burning PositionUniversal
Operating Temperature-20C (-4F) to a maximum of +65C (+149F)
Physical
MOL9.25
MOD3.69
ShapeCorncob
BaseMedium
ANSI BaseE26
Housing ColorWhite
Additional Information
Enclosure RatingEnclosed Rated Lamp
Min Compartment SizeLength 17.3 in. Width 9.25 in. Depth 9.25 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
CEC StatusLawful for sale in California
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923096723
Each Quantity1
Each Length (in.)3.66
Each Width (in.)3.66
Each Height (in.)10.16
Each Weight (lb.)2.00
Each Cube (CuFt.)0.0764
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923096720
Case Quantity12
Case Length (in.)16.10
Case Width (in.)10.60
Case Height (in.)23.20
Case Weight (lb.)30.50
Case Cube (CuFt.)2.2218
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
