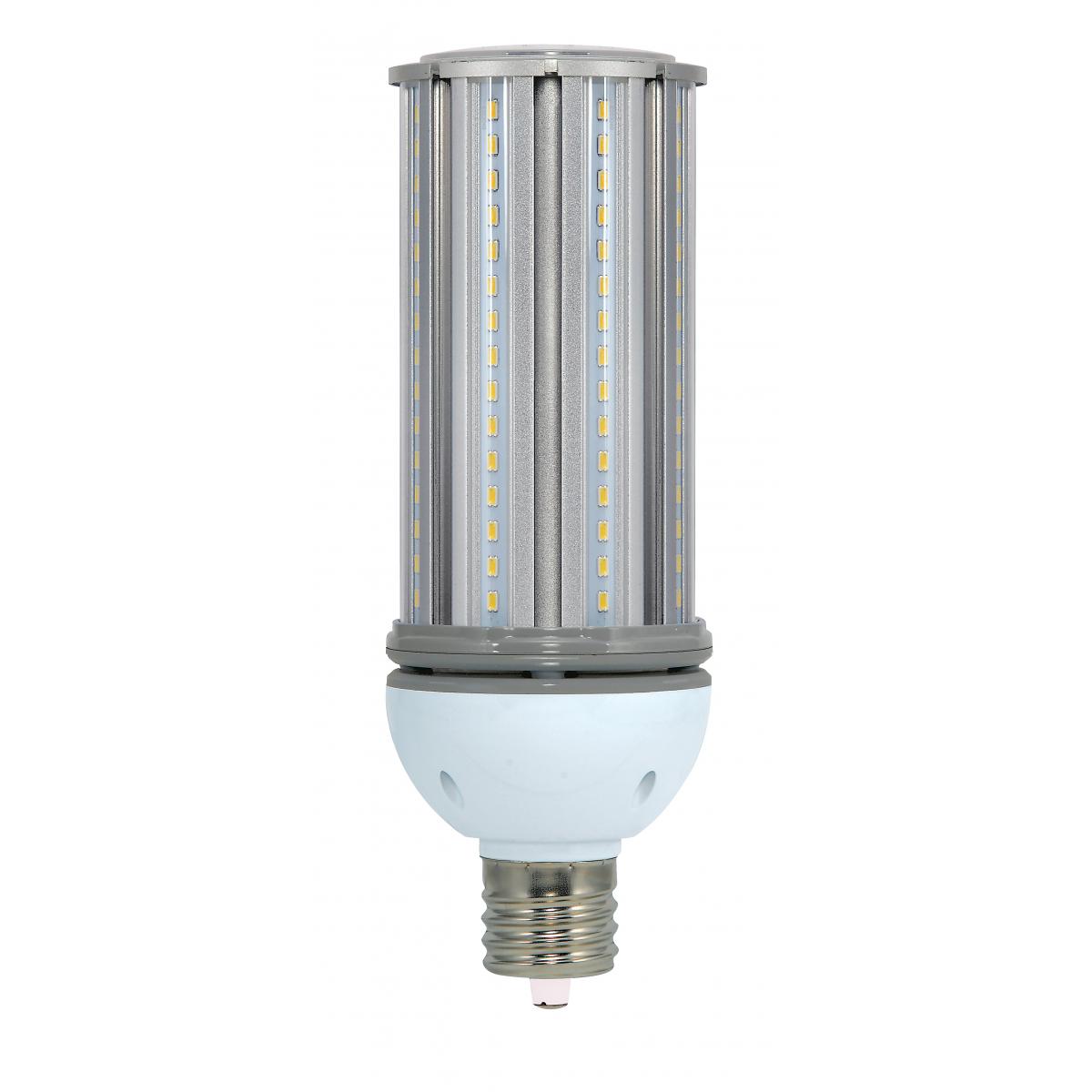

S9674

54W/LED/HID/40K/100-277V EX39

Discontinued - Suggested Replacement: S49674
  • 54 Watt - LED HID Replacement
  • 4000K
  • Mogul extended base
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S9674 SpecificationsSA1767 Hi-Pro LED Lamps V2 PI Sheet 4 17
Tools
Lighting Layout Analysis For S9674
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
54 Watt - LED HID Replacement; 4000K; Mogul extended base; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Lamp FilamentLED
Fixture TypeCorncob
StatusDiscontinued
Most Current GenerationS49674
Working VoltageAC 90-305V
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.540-0.195A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Minimum Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Operating PositionUniversal
Power Factor0.91
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv85W
Incandescent Equivalent300W
Electrical
CCT (Kelvin Temp)4000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +65C (+149F)
HID Equivalent250W
Lumens7020L
Volts120V-277V
Watts54W
Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhiteGrey
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps3.69
MOL10.75
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsExempt - Base Not Regulated
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
IP RatingIP65
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923096747
Case Cube2.5283
Case Height25.6
Case Length16.1
Case Quantity12
Case UPC10045923096744
Case Weight30.9
Case Width10.6
EA Cube0.0879
EA Height11.34
EA Length3.66
EA Quantity1
EA Weight2.34
EA Width3.66
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length10.75
Web Width3.69
