S9701

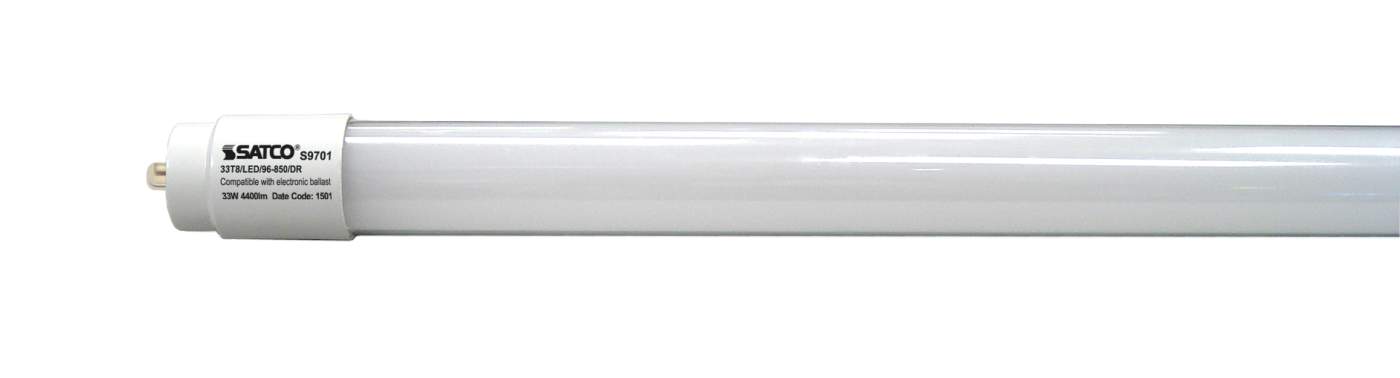

33T8/LED/96-850/DR GLASS

33 Watt T8 LED; Single Pin base; 5000K; 50000 Average rated hours; 4400 Lumens

S9701 33T8/LED/96-850/DR GLASS

S9701

33T8/LED/96-850/DR GLASS

33 Watt T8 LED; Single Pin base; 5000K; 50000 Average rated hours; 4400 Lumens

Specifications

General
StatusDiscontinued
SubstituteS9919
Watts33
Fluorescent Equivalent54W; 59W
ShapeT8
BaseSingle Pin
ANSI BaseFa8
Nominal Length96
FinishGloss White
CCT (Kelvin)5000
TemperatureNatural Light
CRI82
Lumens4400
Beam Spread230
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts33
Fluorescent Equivalent54W; 59W
Ballasting RequirementsMaynotbecompatiblewithallinstantstartballasts.;|Ballastrequired;|DirectReplacement-foruseonelectronicInstantStartballastswithnorewiringrequired
CCT (Kelvin)5000
TemperatureNatural Light
CRI82
Lumens4400
Beam Spread230
DimmableNon-Dimmable
Dimming TypeN/A
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL96
MOD1
Nominal Length96
ShapeT8
BaseSingle Pin
ANSI BaseFa8
FinishGloss White
Additional Information
Additional InfoMust be ordered in full case quantities;|High efficacy
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
RoHS CompliantYes
NSF ApprovedYes - Approved
Packaging
Each UPC045923097010
Each Quantity1
Each Length (in.)96.00
Each Width (in.)1.18
Each Height (in.)1.18
Each Weight (lb.)0.97
Each Cube (CuFt.)0.0750
Pack TypeEgg Crate
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923097017
Case Quantity10
Case Length (in.)95.50
Case Width (in.)7.70
Case Height (in.)4.40
Case Weight (lb.)13.23
Case Cube (CuFt.)1.8157
×
×

Ballast Compatibility

Name Type View
T8 LED Chart E LED T8 View
×

Precautions

No precautions available at this time.

×
