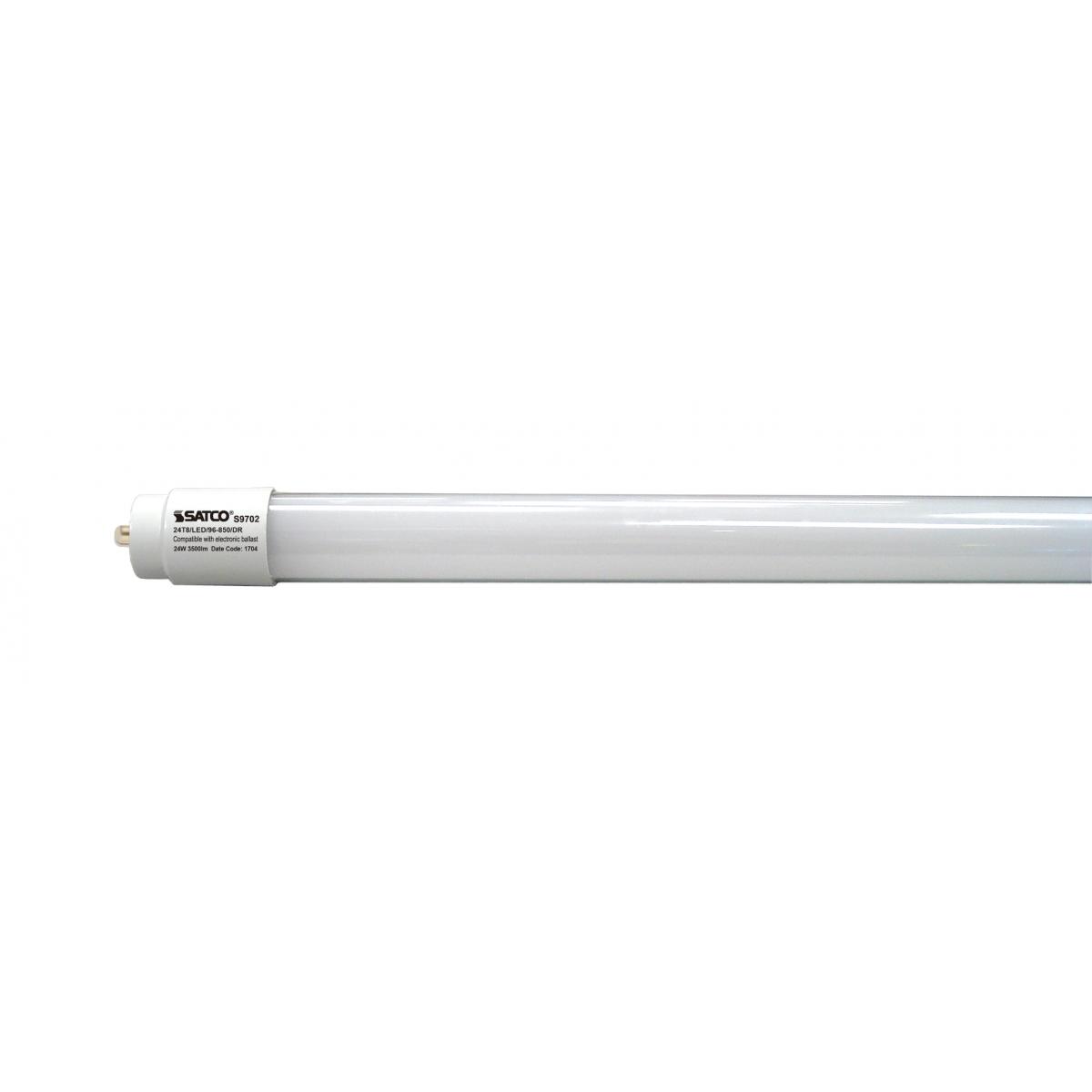

S9702 24T8/LED/96-850/DR

S9702

24T8/LED/96-850/DR

24 Watt T8 LED; Single Pin base; 5000K; 50000 Average rated hours; 3500 Lumens


Lights

S9702

24T8/LED/96-850/DR

24 Watt T8 LED; Single Pin base; 5000K; 50000 Average rated hours; 3500 Lumens

Specifications

General
StatusDiscontinued
Watts24W
Incandescent Equivalent100W
Fluorescent Equivalent54W/59W
Volts120V-277V
ShapeT8
BaseSingle Pin
ANSI BaseFa8
Nominal Length96
FinishGloss White
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens3500L
Beam Spread230
DimmableNon-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts24W
Incandescent Equivalent100W
Fluorescent Equivalent54W/59W
Volts120V-277V
Ballasting RequirementsMay not be compatible with all instant start ballasts; Direct Replacement-for use on electronic Instant Start ballasts with no rewiring required
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens3500L
Beam Spread230
DimmableNon-Dimmable
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL96
MOD1
Nominal Length96
ShapeT8
BaseSingle Pin
ANSI BaseFa8
FinishGloss White
MaterialGlass
Lens FinishGloss White
Additional Information
Additional InfoNote: Must be ordered in full case quantities
Shatter-Proof TypeYes
Installation NotesNot for use in vapor tight fixtures.
Specification Note120 or 277 volt; Shatterproof coated
Warranty5-Years
Compliance
Safety ListingcULus - Listed
DLC ApprovedNo
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923097027
Each Quantity1
Each Length (in.)96.00
Each Width (in.)1.18
Each Height (in.)1.18
Each Weight (lb.)0.97
Each Cube (CuFt.)0.0774
Pack TypeEgg Crate
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923097024
Case Quantity10
Case Length (in.)95.50
Case Width (in.)7.70
Case Height (in.)4.40
Case Weight (lb.)13.23
Case Cube (CuFt.)1.8724
