S9710

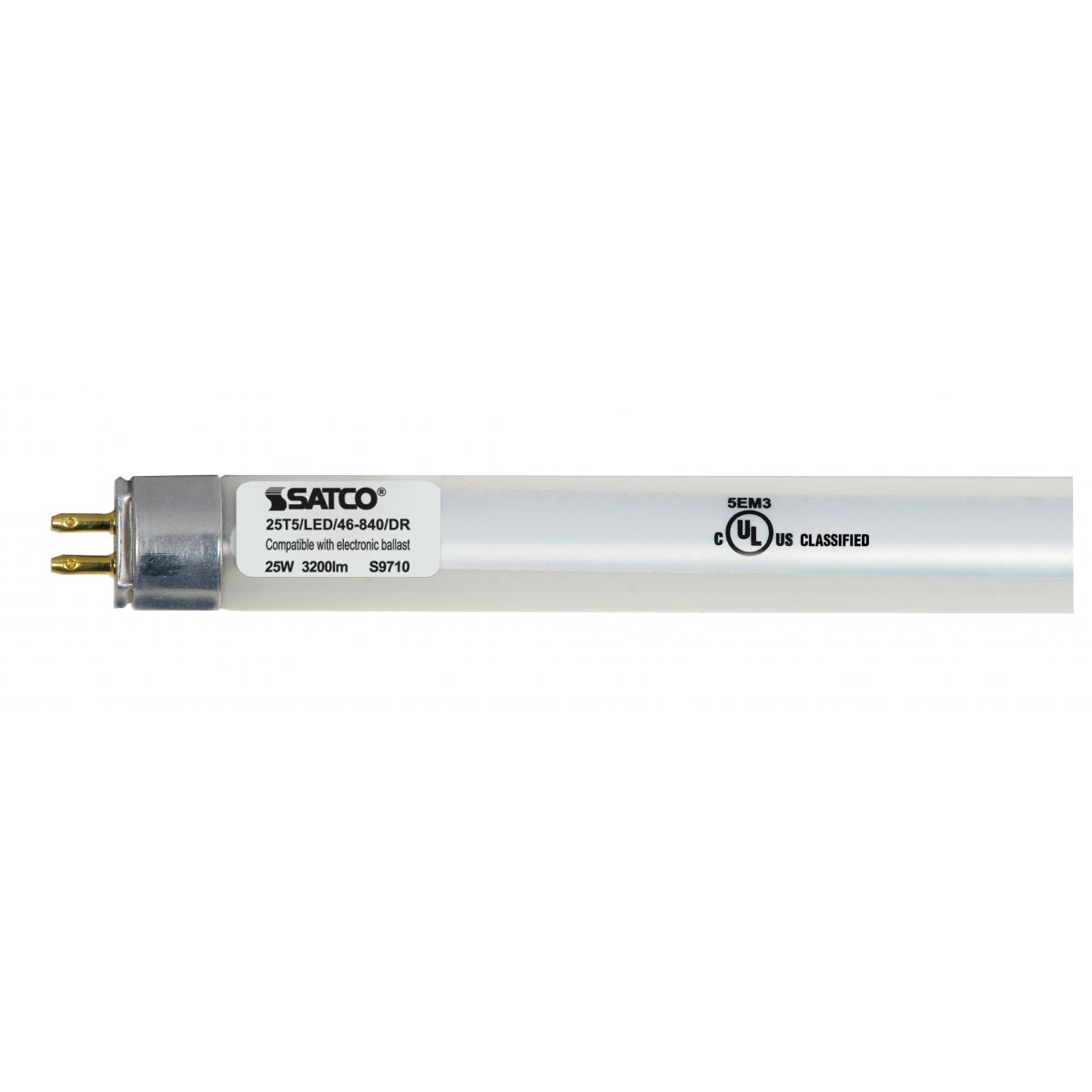

25T5/LED/46-840/DR GLASS

25 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 3200 Lumens

S9710 25T5/LED/46-840/DR GLASS

S9710

25T5/LED/46-840/DR GLASS

25 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 3200 Lumens

Specifications

General
StatusDiscontinued
SubstituteS29910
Watts25
Fluorescent Equivalent54
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length48
FinishGloss White
CCT (Kelvin)4000
TemperatureCool White
CRI82
Lumens3200
Beam Spread185
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts25
Fluorescent Equivalent54
Ballasting RequirementsMaynotbecompatiblewithallrapidstartballasts.;|Ballastrequired;|DirectReplacement-foruseonElectronicInstantStartandRapidStartballastswithnorewiringrequired
CCT (Kelvin)4000
TemperatureCool White
CRI82
Lumens3200
Beam Spread185
DimmableNon-Dimmable
Dimming TypeN/A
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL48
MOD0.63
Nominal Length48
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishGloss White
Additional Information
Additional InfoHigh efficacy
Integrated Features25watt - 32watt Fluorescent equivalency; Approved for enclosed luminaires
Warranty5 Year Limited - T5 LED Bulbs
Compliance
Safety ListingcULus Classified
Location RatingDamp
Energy StarNo
RoHS CompliantYes
Packaging
Each UPC045923097102
Each Quantity1
Each Length (in.)46.20
Each Width (in.)0.71
Each Height (in.)0.71
Each Weight (lb.)0.31
Each Cube (CuFt.)0.0131
Pack TypeEgg Crate
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923097109
Case Quantity10
Case Length (in.)48.10
Case Width (in.)6.30
Case Height (in.)3.30
Case Weight (lb.)4.41
Case Cube (CuFt.)0.5612
×
×

Ballast Compatibility

Name Type View
T5 LED Chart B LED T5 View
×

Precautions

No precautions available at this time.

×
