Lights

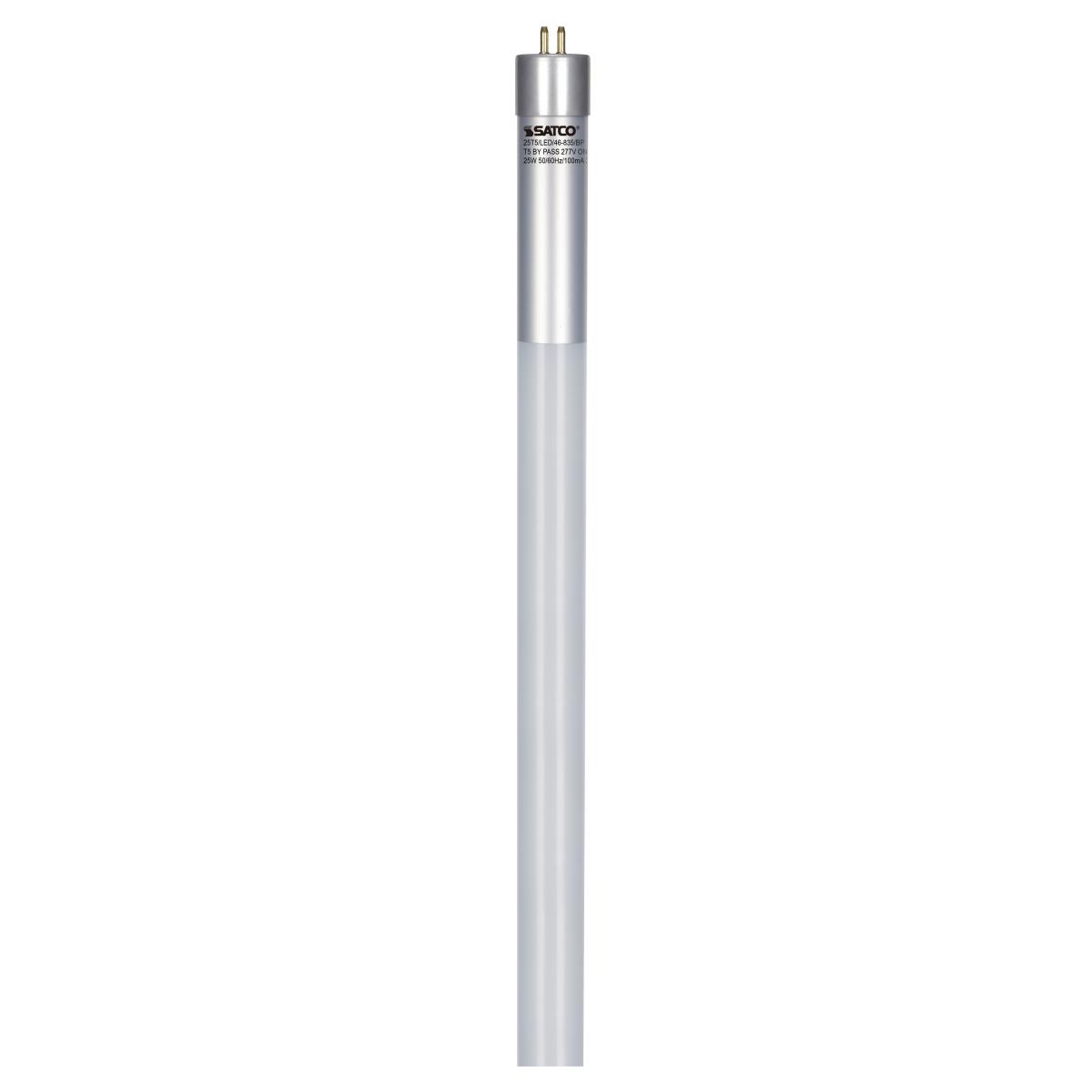

S9717

25T5/LED/46-835/BP/277V

25 Watt T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 3250 Lumens; 277 Volt

S9717 25T5/LED/46-835/BP/277V

S9717

25T5/LED/46-835/BP/277V

25 Watt T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 3250 Lumens; 277 Volt

Specifications

General
StatusDiscontinued
SubstituteS39717
Watts25
Volts277V
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length48
FinishFrosted
CCT (Kelvin)3500
TemperatureNeutral White
CRI83
Lumens3250
Beam Spread230
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts25
Volts277V
CCT (Kelvin)3500
TemperatureNeutral White
CRI83
Lumens3250
Beam Spread230
DimmableNon-Dimmable
Power Factor0.95
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL48
MOD0.63
Nominal Length48
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishFrosted
Additional Information
Shatter-Proof TypeYes
Warranty5 Year Limited - T5 LED Bulbs
Compliance
Safety ListingcULus Classified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPGGN9WPQ
CEC StatusLawful for sale in California
RoHS CompliantYes
NSF ApprovedYes - Approved
Packaging
Each UPC045923097171
Each Quantity1
Each Length (in.)45.90
Each Width (in.)0.85
Each Height (in.)0.85
Each Weight (lb.)0.31
Each Cube (CuFt.)0.0186
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923097178
Case Quantity25
Case Length (in.)48.00
Case Width (in.)5.40
Case Height (in.)5.40
Case Weight (lb.)13.08
Case Cube (CuFt.)0.7855
