» S9718.html

Lights

S9718

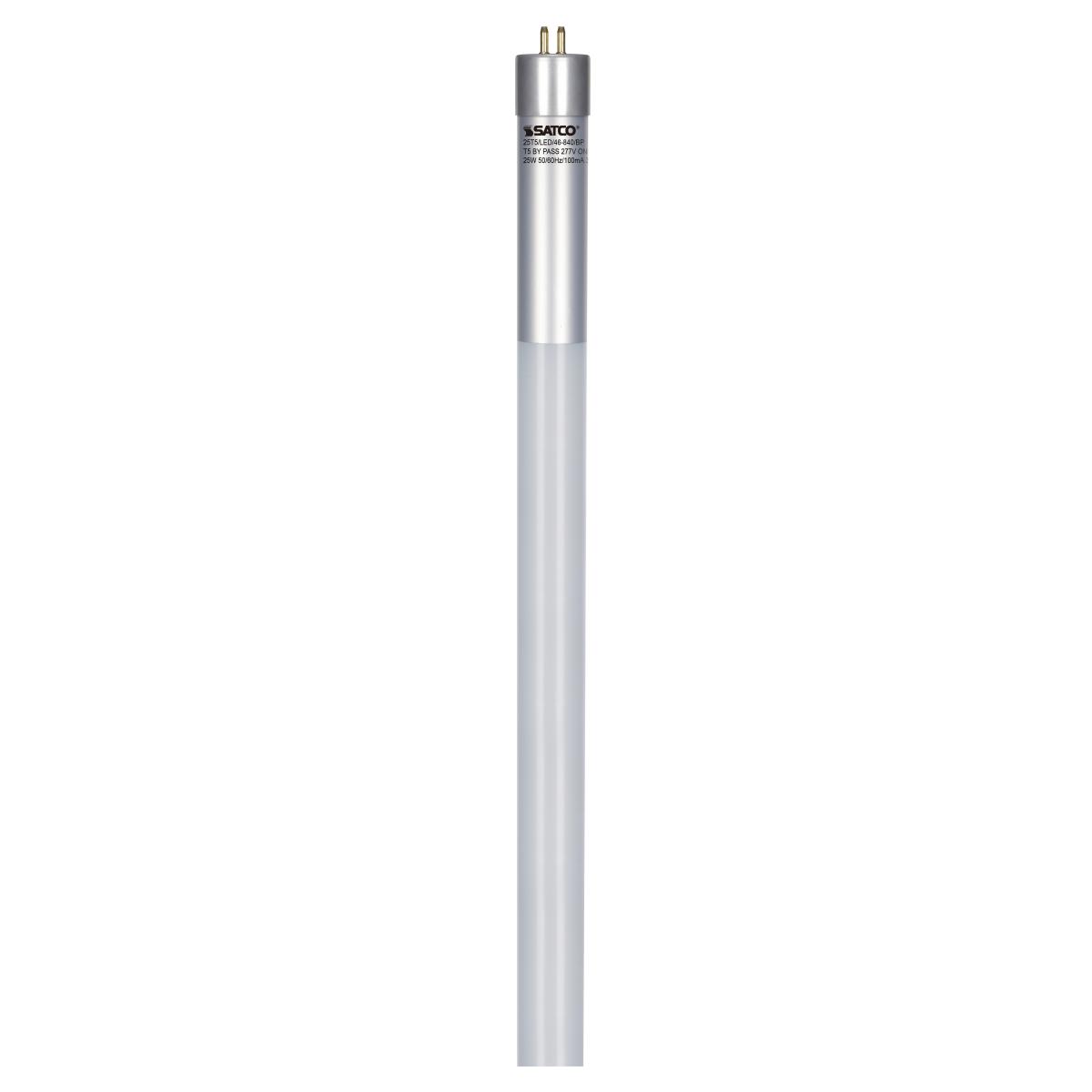

25T5/LED/46-840/BP/277V

25 watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 3300 lumens; 277 volts

Lights

S9718

25T5/LED/46-840/BP/277V

25 watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 3300 lumens; 277 volts

Specifications

General
StatusDiscontinued
Watts25
Volts277V
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length48
FinishFrosted
CCT (Kelvin)4000
TemperatureCool White
CRI83
Lumens3300
Beam Spread230
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts25
Volts277V
CCT (Kelvin)4000
TemperatureCool White
CRI83
Lumens3300
Beam Spread230
DimmableNon-Dimmable
Dimmable Down ToN/A
Dimming TypeN/A
Power Factor0.95
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL48
MOD0.63
Nominal Length48
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishFrosted
Additional Information
Shatter-Proof TypeYes
Warranty5 Year Limited - T5 LED Bulbs
Compliance
Safety ListingcULus Classified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPX41MJDB
CEC StatusLawful for sale in California
RoHS CompliantYes
NSF ApprovedYes - Approved
Packaging
Each UPC045923097188
Each Quantity1
Each Length (in.)45.90
Each Width (in.)0.85
Each Height (in.)0.85
Each Weight (lb.)0.31
Each Cube (CuFt.)0.02
Pack TypeSleeve
Inner UPC00000000000000
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.00
Case UPC10045923097185
Case Quantity25
Case Length (in.)48.00
Case Width (in.)5.40
Case Height (in.)5.40
Case Weight (lb.)13.08
Case Cube (CuFt.)0.79
×

Dimmer Compatibility

×

Precautions

No precautions available at this time.
