Lights

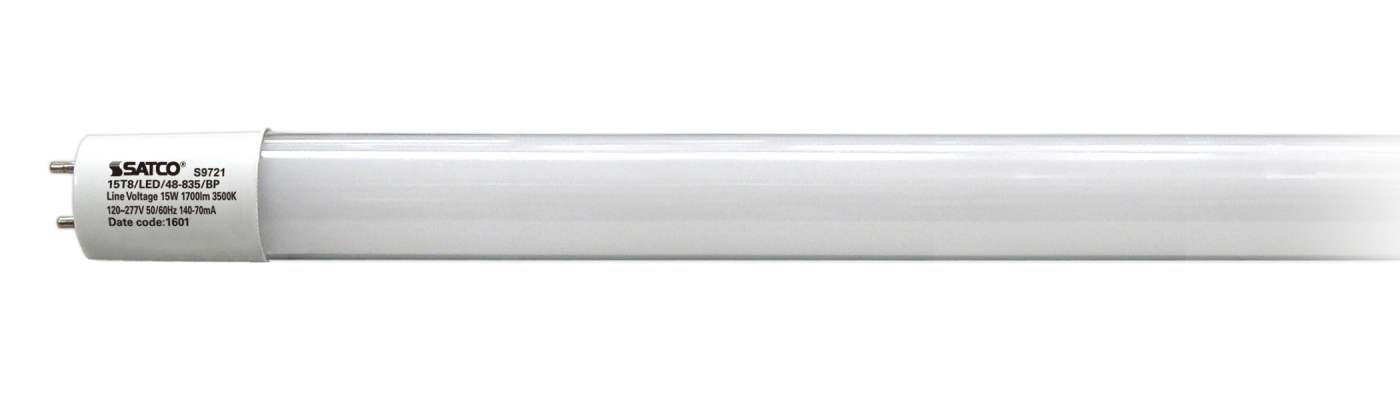

S9721

15T8/LED/48-835/BP

15 Watt T8 LED; Medium bi-pin base; 3500K; 50000 Average rated hours; 1700 Lumens; Type B; Ballast Bypass; Single Ended Wiring

S9721 15T8/LED/48-835/BP

S9721

15T8/LED/48-835/BP

15 Watt T8 LED; Medium bi-pin base; 3500K; 50000 Average rated hours; 1700 Lumens; Type B; Ballast Bypass; Single Ended Wiring

Specifications

General
StatusActive
Watts15
Fluorescent Equivalent25-32
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishGloss White
CCT (Kelvin)3500
TemperatureNeutral White
CRI82
Lumens1700
Beam Spread230
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts15
Fluorescent Equivalent25-32
Volts120V-277V
Ballasting RequirementsBallastBypass
Ballast TypeType B
Operating Frequency50/60 Hz
CCT (Kelvin)3500
TemperatureNeutral White
CRI82
Lumens1700
Beam Spread230
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL48
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
Additional Information
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPGMG5X1Y
CEC StatusLawful for sale in California
RoHS CompliantYes
Packaging
Each UPC045923097218
Each Quantity1
Each Length (in.)48.43
Each Width (in.)1.18
Each Height (in.)1.18
Each Weight (lb.)0.60
Each Cube (CuFt.)0.0378
Pack TypeEgg Crate
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923097215
Case Quantity10
Case Length (in.)49.60
Case Width (in.)8.30
Case Height (in.)4.30
Case Weight (lb.)6.40
Case Cube (CuFt.)0.9934
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
