Discontinued – Suggested Replacement: S49936

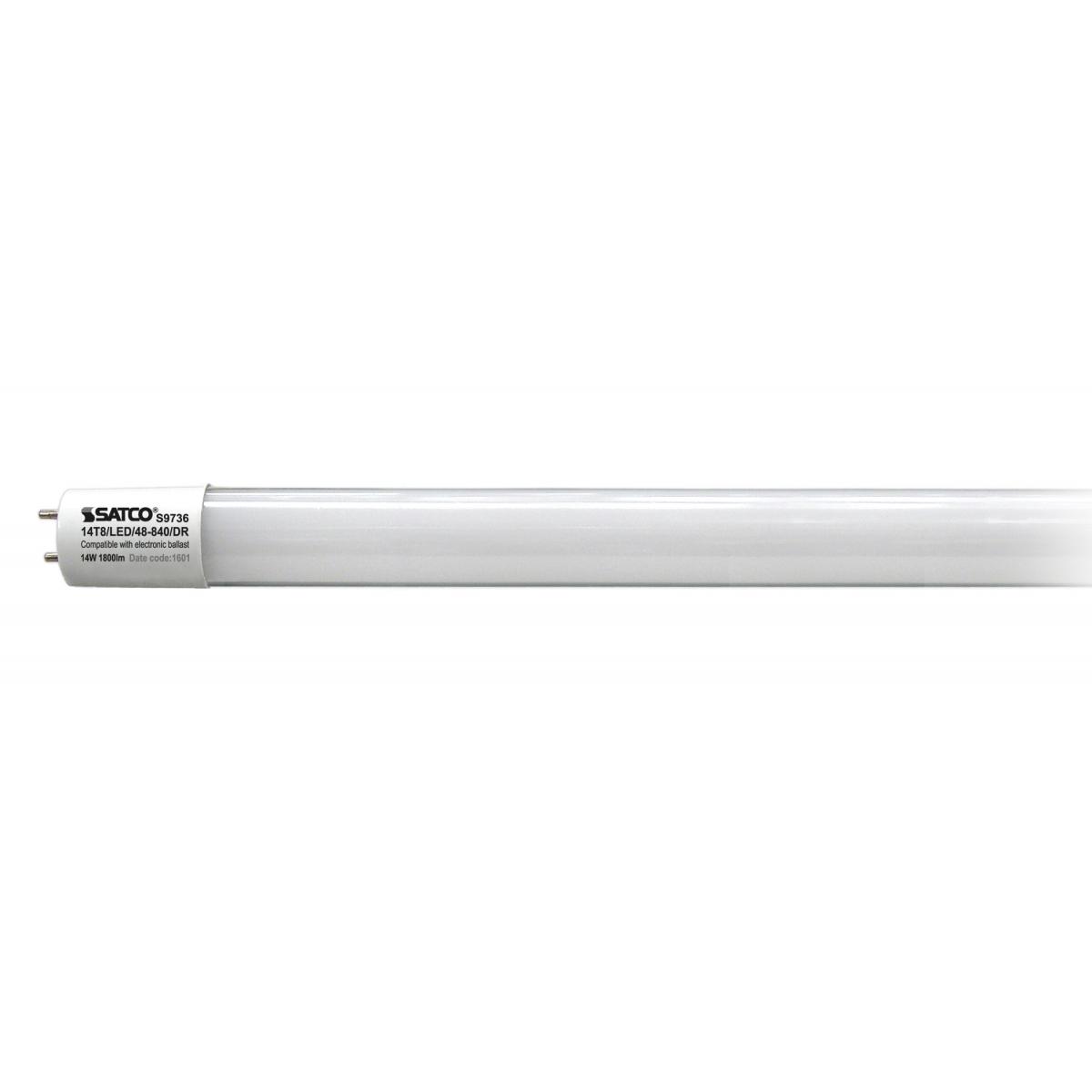

S9736 14T8/LED/48-840/DR GLASS

S9736

14T8/LED/48-840/DR GLASS

14 Watt T8 LED; Medium bi-pin base; 4000K; 50000 Average rated hours; 1800 Lumens


Lights

S9736

14T8/LED/48-840/DR GLASS

14 Watt T8 LED; Medium bi-pin base; 4000K; 50000 Average rated hours; 1800 Lumens

Specifications

General
StatusDiscontinued
SubstituteS49936
Watts14W
Incandescent Equivalent100W
Fluorescent Equivalent25W-32W
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishGloss White
CCT (Kelvin)4000K
TemperatureCool White
CRI82
Lumens1800L
Beam Spread230
DimmableYes-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts14W
Incandescent Equivalent100W
Fluorescent Equivalent25W-32W
Ballasting RequirementsMay not be compatible with all rapid start, dimmable, and emergency ballasts; Ballast required; Approved for enclosed fixtures when used only on low or normal ballast factor systems
CCT (Kelvin)4000K
TemperatureCool White
CRI82
Lumens1800L
Beam Spread230
DimmableYes-Dimmable
Power Factor0.9
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL48
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
Lens FinishGloss White
Additional Information
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923097362
Each Quantity1
Each Length (in.)48.43
Each Width (in.)1.18
Each Height (in.)1.18
Each Weight (lb.)1.98
Each Cube (CuFt.)0.0390
Pack TypeEgg Crate
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923097369
Case Quantity10
Case Length (in.)49.60
Case Width (in.)8.30
Case Height (in.)4.33
Case Weight (lb.)6.40
Case Cube (CuFt.)1.0316
×
×

Ballast Compatibility

Name Type View
T8 LED Chart F LED T8 View
T8 LED Dimming Chart F LED T8 View
T8 LED Emergency Chart F LED T8 View
×

Precautions

No precautions available at this time.

×
