Lights

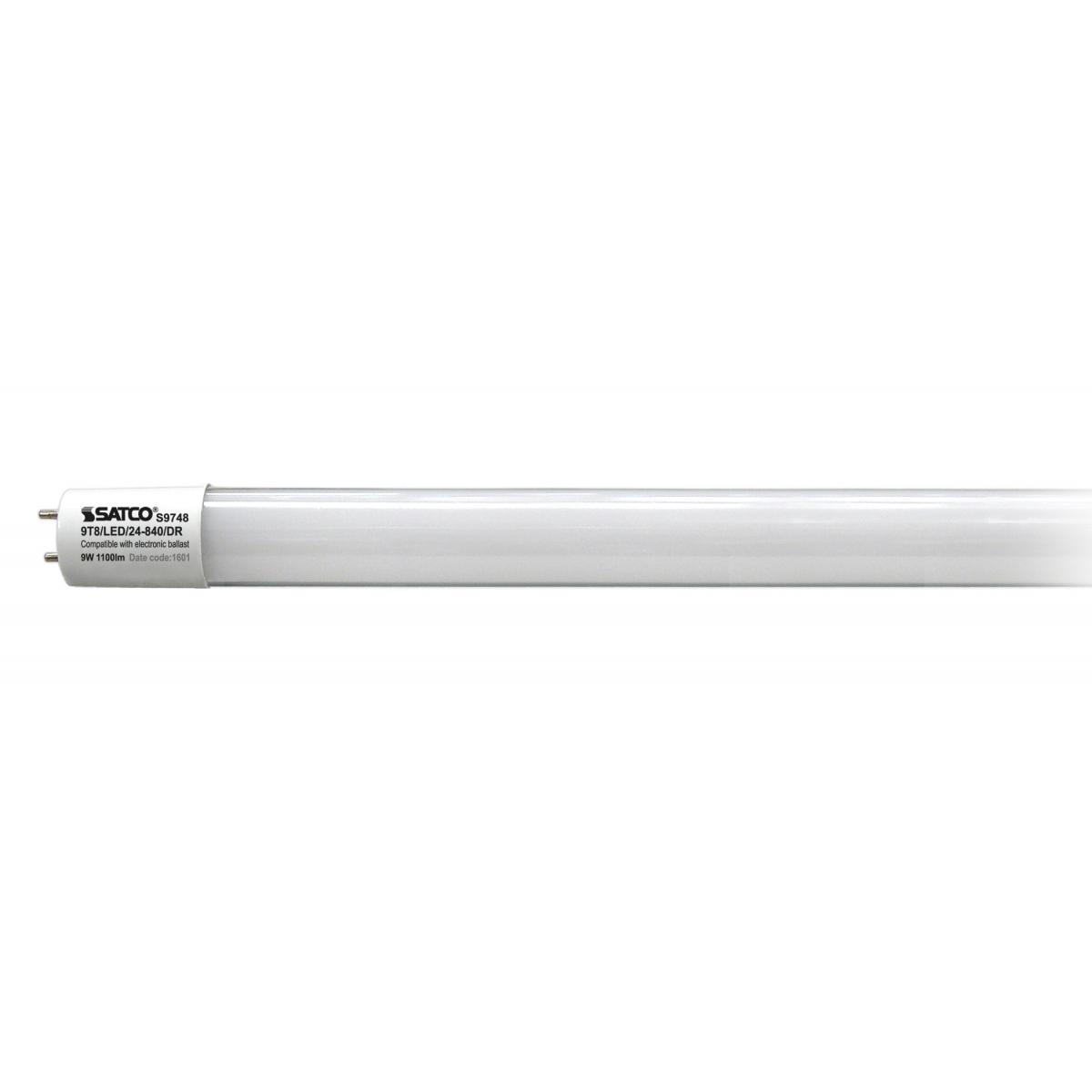

S9748

9T8/LED/24-840/DR GLASS

9 Watt T8 LED; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1150 Lumens

S9748 9T8/LED/24-840/DR GLASS

S9748

9T8/LED/24-840/DR GLASS

9 Watt T8 LED; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1150 Lumens

Specifications

General
StatusDiscontinued
SubstituteS9948
Watts9
Fluorescent Equivalent17
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length24
FinishGloss White
CCT (Kelvin)4000
TemperatureCool White
CRI82
Lumens1150
Beam Spread230
DimmableYes Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts9
Fluorescent Equivalent17
CCT (Kelvin)4000
TemperatureCool White
CRI82
Lumens1150
Beam Spread230
DimmableYes Dimmable
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL24
MOD1
Nominal Length24
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
Additional Information
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
RoHS CompliantYes
Packaging
Each UPC045923097485
Each Quantity1
Each Length (in.)23.60
Each Width (in.)1.18
Each Height (in.)1.18
Each Weight (lb.)1.04
Each Cube (CuFt.)0.0184
Pack TypeEgg Crate
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923097482
Case Quantity10
Case Length (in.)37.80
Case Width (in.)8.30
Case Height (in.)4.33
Case Weight (lb.)4.80
Case Cube (CuFt.)0.7623
×
×

Ballast Compatibility

Name Type View
T8 LED Chart F LED T8 View
T8 LED Dimming Chart F LED T8 View
T8 LED Emergency Chart F LED T8 View
×

Precautions

No precautions available at this time.

×
