30W/LED/HID/MB/5000K/100-277V E26
30 watt - LED HID Replacement; 5000K; Medium base; 100-277 volts
Features
- Replaces HID, CFL, and Incandescent
- Direct wire range voltage 100-277V
- Approved for totally enclosed fixtures
- Hi bay, low bay and post top

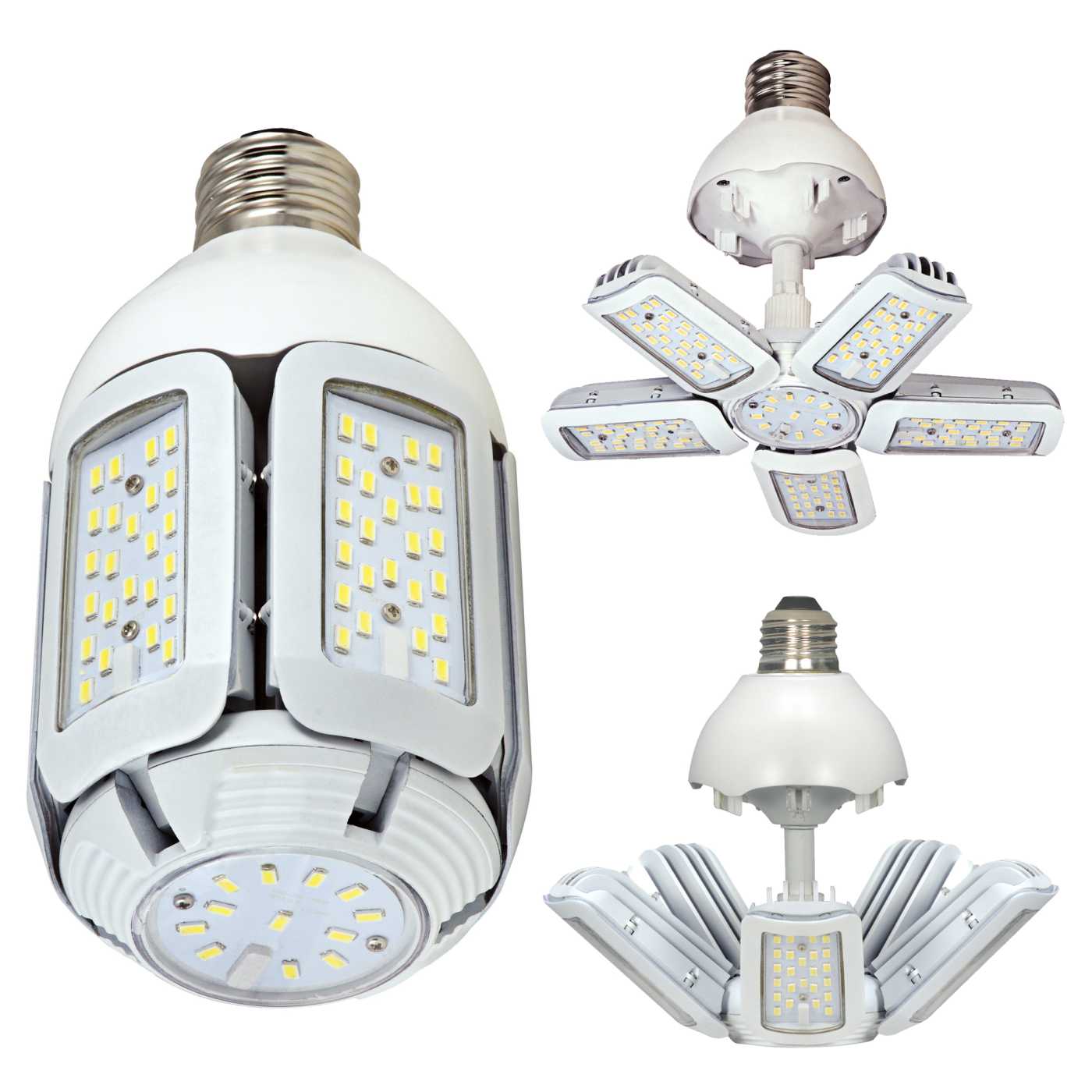

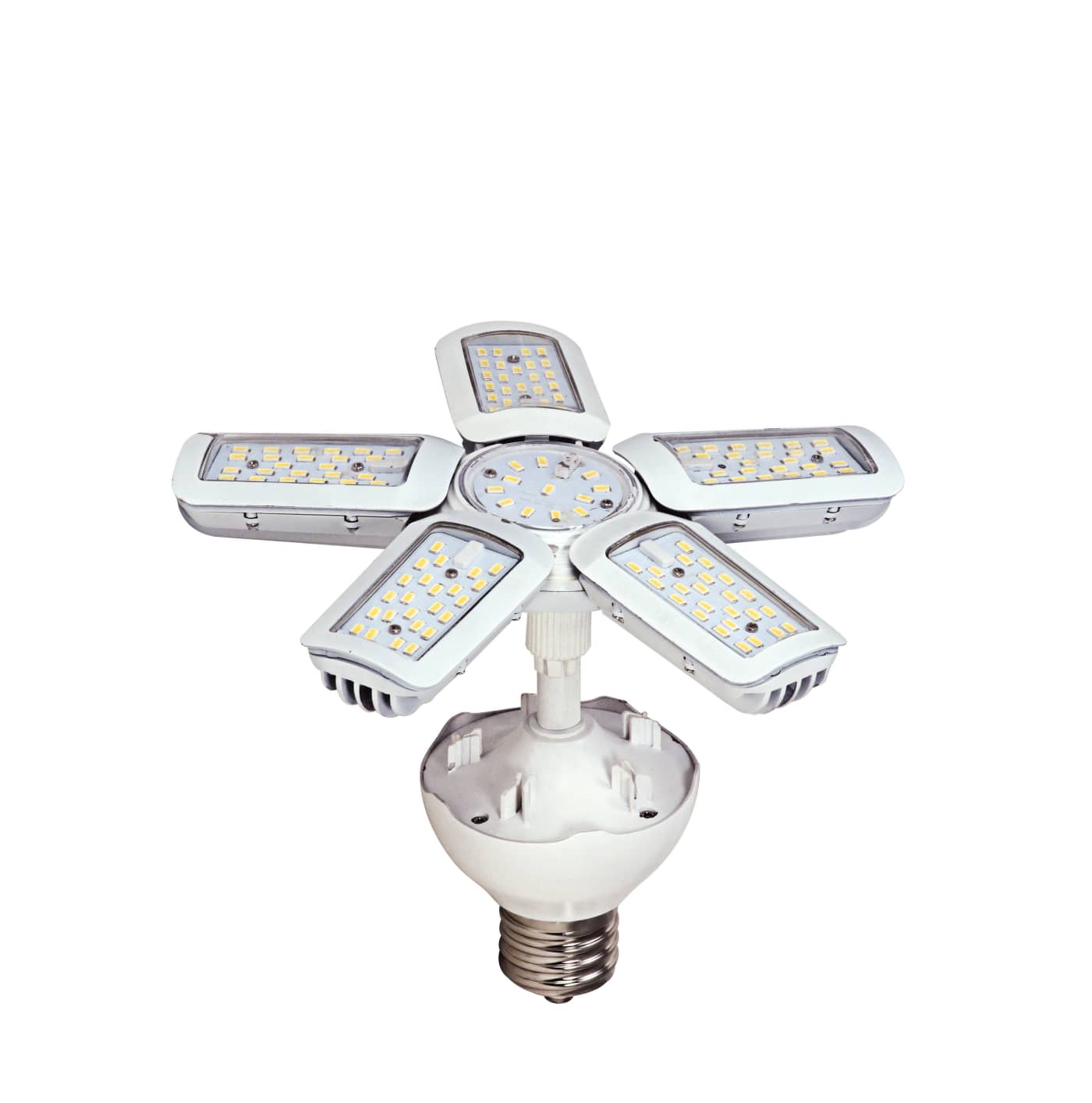

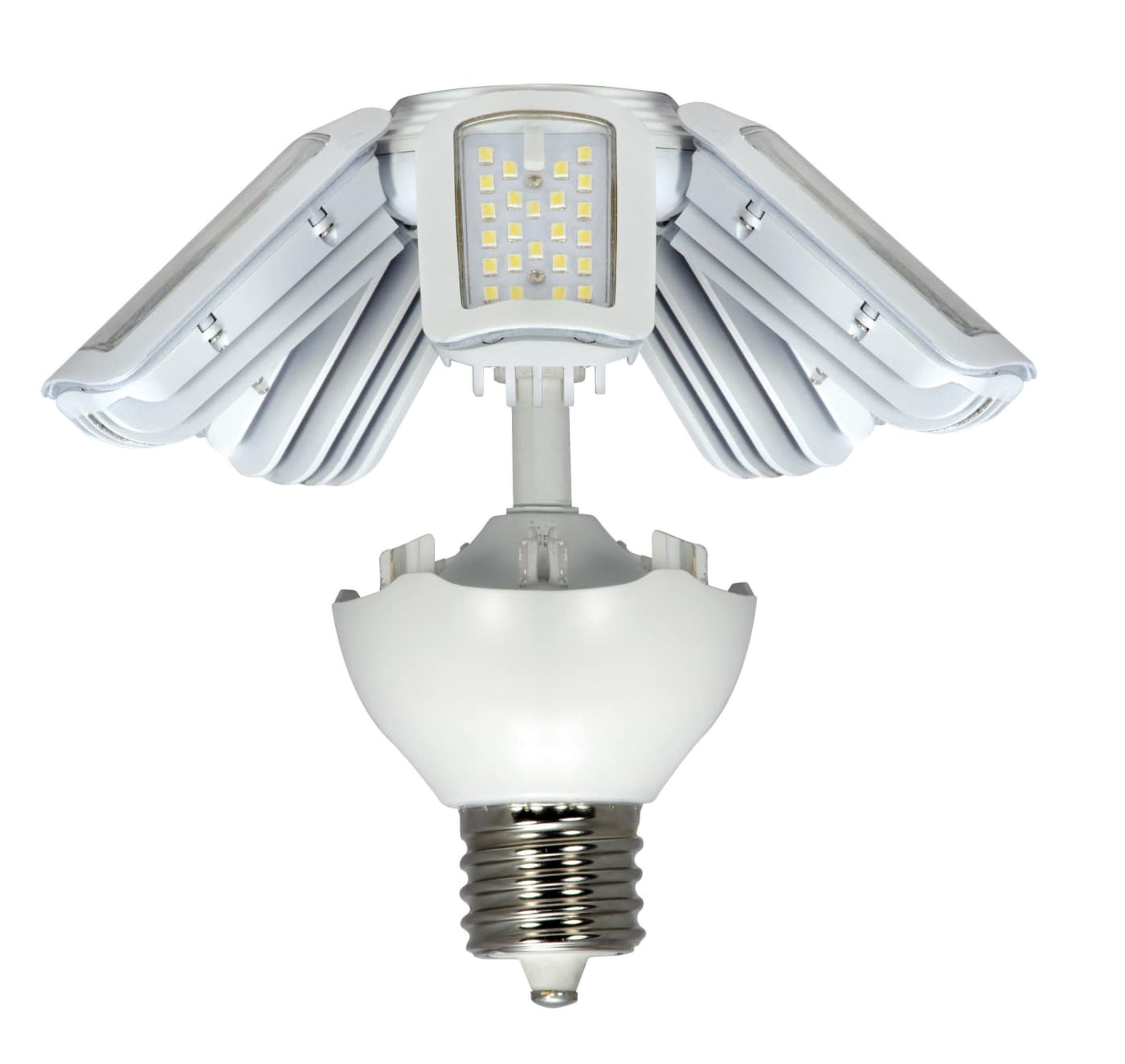

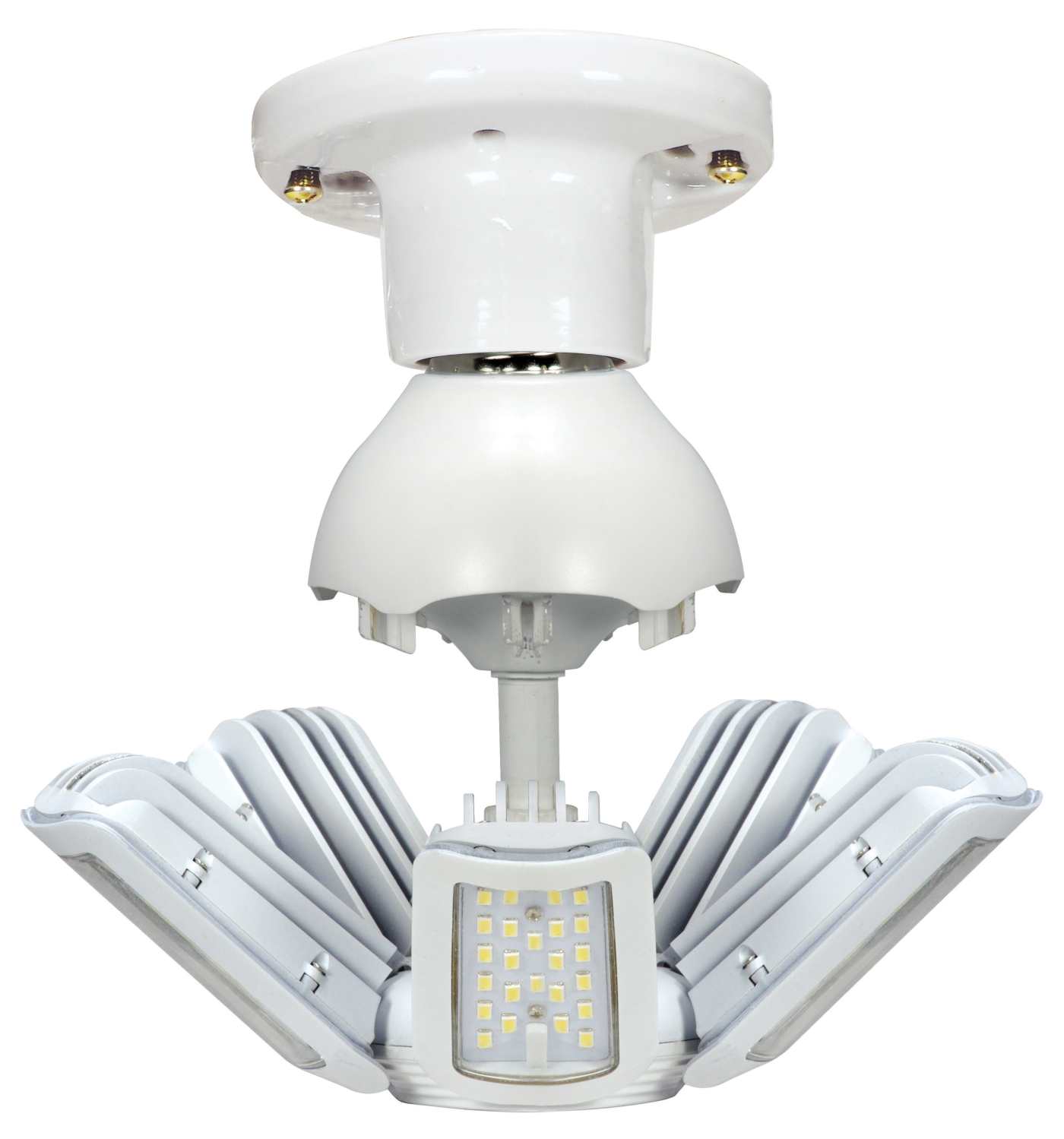

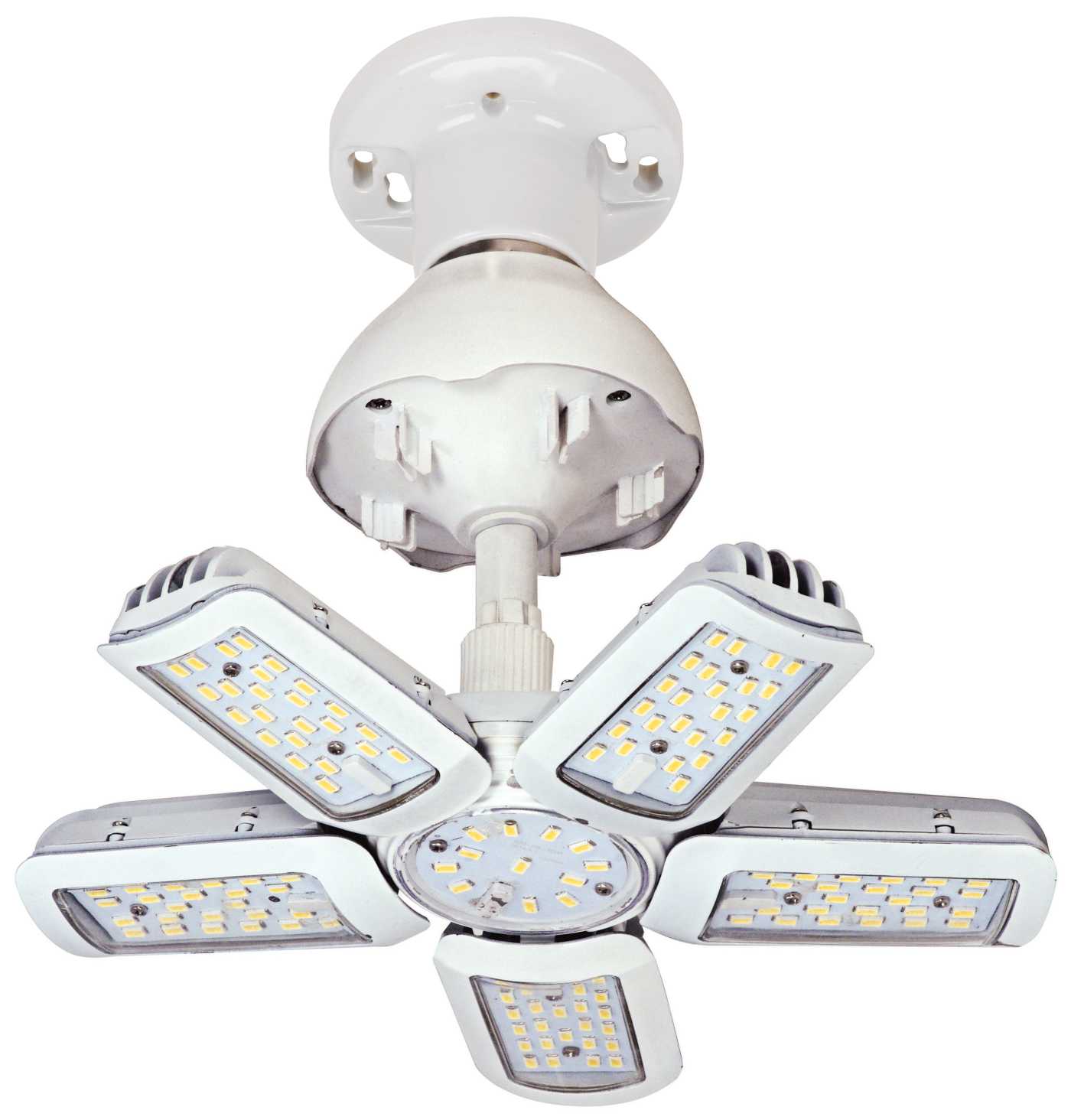

- Light panels lock into place creating 3 separate beam angle options
- IP65 rated
- 5 year limited warranty
Specification note: Power Factor >0.9; Operating temperature range -20°C to 65°C; Operating Frequency 50-60Hz; Working Voltage AC 90-305V
Optional accessory: In-line surge protector 80-929
| Width (360°) | Width (270°) | Width (180°) |
| 3.2" | 6.8" | 7.7" |
| Minimum Compartment Size | ||
| Length | Width | Depth |
| 11 inch | 8 inch | 8 inch |
This item has been discontinued.
Possible replacement:
| Product Line | Hi-Pro |
| UPC | 045923097508 |
| Input Voltage | 100 - 277 |
| Watts | 30 |
| Incandescent Equivalent | 200W |
| Fluorescent Equivalent | 55W |
| HID Equivalent | 150W |
| Power Factor | 0.90 |
| Base | Medium |
| ANSI Base | E26 |
| Lamp Code | 30W/LED/HID/MB/5000K/100-277V E26 |
| Dimmable/Non-Dimmable | Non-Dimmable |
| Finish | White |
| MOL In Inches | 6-3/8'' |
| MOD In Inches | 3-3/16'' (Open 7-11/16'') |
| Initial Lumens | 3900 |
| Average Rated Hours | 50000 |
| Kelvin Temp | 5000 |
| Color | Natural Light |
| CRI | 80+ |
| Beam Spread Deg | Adjustable: 360; 270; 180 |
| Operating Temperature | -20C (-4F) to a maximum of +65C (+149F) |
| Pack | 24/6 |
| Package Type | Box |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| Fixture Type | Enclosed Rated |
| UL or ETL Listed | Yes |
| UL Classification | cULus - Damp Location Rated |
| Warranty | 5 Year Limited |
| Status | Discontinued |
| Suggested Substitute | S29750 |
Item S9750
| Product Line | Hi-Pro |
| UPC | 045923097508 |
| Input Voltage | 100 - 277 |
| Watts | 30 |
| Incandescent Equivalent | 200W |
| Fluorescent Equivalent | 55W |
| HID Equivalent | 150W |
| Power Factor | 0.90 |
| Base | Medium |
| ANSI Base | E26 |
| Lamp Code | 30W/LED/HID/MB/5000K/100-277V E26 |
| Dimmable/Non-Dimmable | Non-Dimmable |
| Finish | White |
| MOL In Inches | 6-3/8'' |
| MOD In Inches | 3-3/16'' (Open 7-11/16'') |
| Initial Lumens | 3900 |
| Average Rated Hours | 50000 |
| Kelvin Temp | 5000 |
| Color | Natural Light |
| CRI | 80+ |
| Beam Spread Deg | Adjustable: 360; 270; 180 |
| Operating Temperature | -20C (-4F) to a maximum of +65C (+149F) |
| Pack | 24/6 |
| Package Type | Box |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| Fixture Type | Enclosed Rated |
| UL or ETL Listed | Yes |
| UL Classification | cULus - Damp Location Rated |
| Warranty | 5 Year Limited |
| Status | Discontinued |
| Suggested Substitute | S29750 |
