60W/LED/HID/MB/5000K/100-277V

60 watt - LED HID Replacement; 5000K; Mogul extended base; 100-277 volts
Features
  • Replaces HID, CFL, and Incandescent
  • Direct wire range voltage 100-277V
  • Approved for totally enclosed fixtures
  • Hi bay, low bay and post top
  • Light panels lock into place creating 3 separate beam angle options
  • IP65 rated
  • DLC Listed
  • 5 year limited warranty

Specification note: Power Factor >0.9; Operating temperature range -20°C to 65°C; Operating Frequency 50-60Hz; Working Voltage AC 90-305V

Optional accessory: In-line surge protector 80-929

Width (360°) Width (270°) Width (180°)
     3.8"      8.2"      9.3"

              Minimum Compartment Size
     Length      Width      Depth
       8.27 inch       9.25 inch     9.25 inch

This item has been discontinued.
Possible replacement:


S9752View/Enlarge

Product LineHi-Pro
UPC045923097522
Input Voltage100 - 277
Watts60
Incandescent Equivalent500W
Fluorescent Equivalent85W
HID Equivalent250W
Power Factor0.90
BaseMogul Extended
ANSI BaseEX39
Lamp Code60W/LED/HID/MB/5000K/100-277V
Dimmable/Non-DimmableNon-Dimmable
FinishWhite
MOL In Inches8-9/16''
MOD In Inches3-13/16'' (Open 9-5/16'')

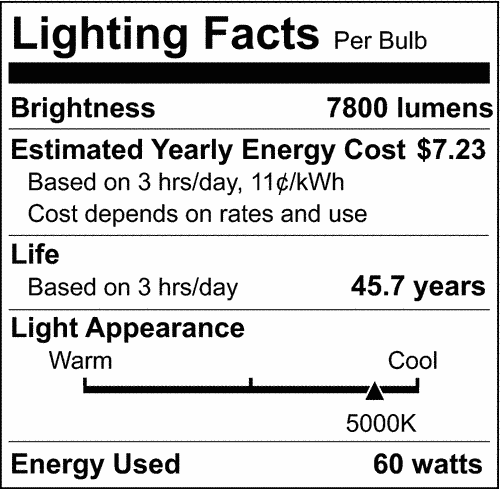

Initial Lumens7800
Average Rated Hours50000
Kelvin Temp5000
ColorNatural Light
CRI 80+
Beam Spread DegAdjustable: 360; 270; 180
Operating Temperature-20C (-4F) to a maximum of +65C (+149F)
Pack12/6
Package TypeBox
CEC StatusLawful for sale in California
DLC ID:

PZY8T15P
DLC Search

RoHS CompliantYes
Fixture TypeEnclosed Rated
UL or ETL ListedYes
UL ClassificationcULus - Damp Location Rated
Warranty5 Year Limited
StatusDiscontinued
Suggested SubstituteS29752
