Lights

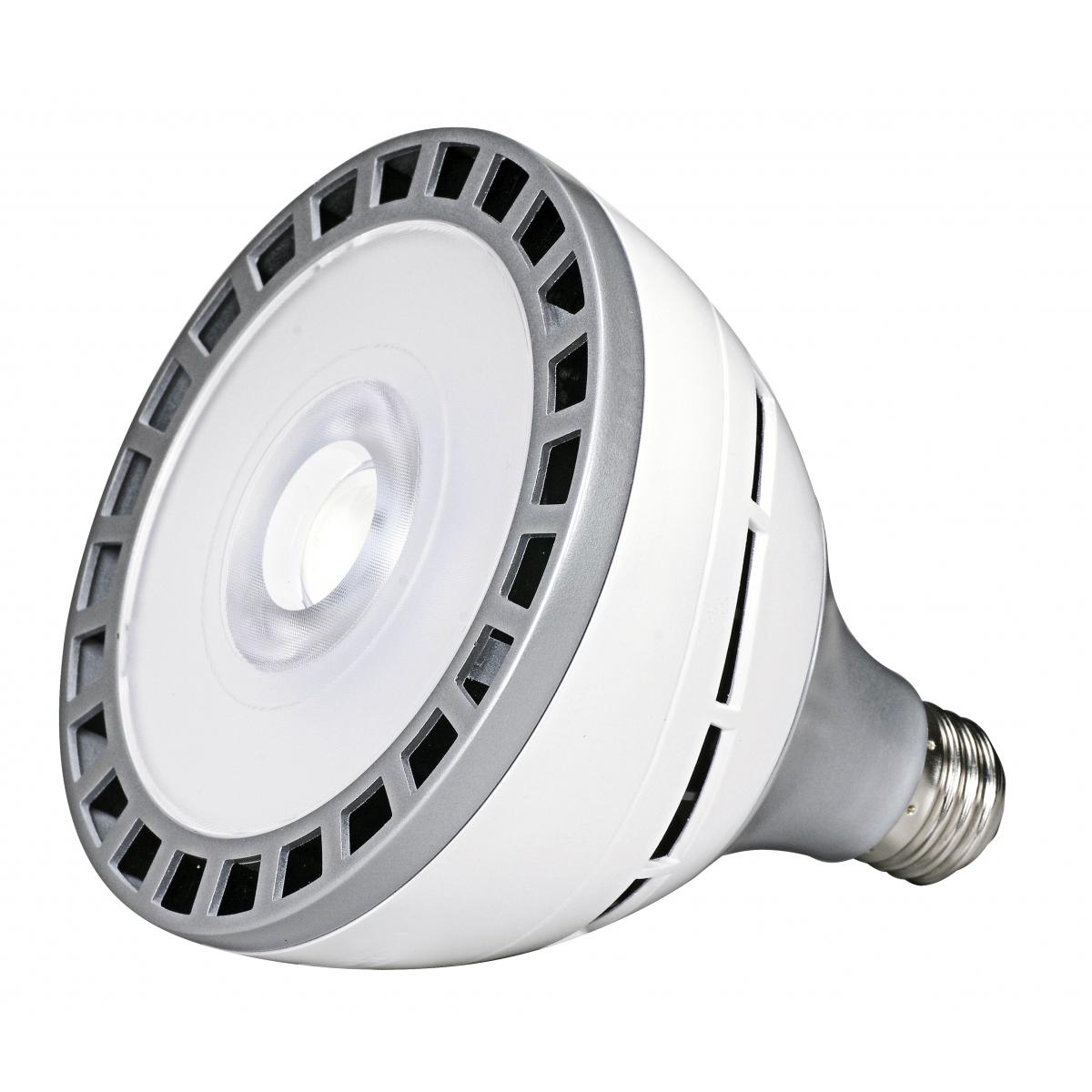

S9761

18W/LED/PAR38/4000K/100-277V

18 Watt; LED PAR38; 4000K; 25 deg. Beam Angle; Medium base; 100-277 Volt

S9761 18W/LED/PAR38/4000K/100-277V

S9761

18W/LED/PAR38/4000K/100-277V

18 Watt; LED PAR38; 4000K; 25 deg. Beam Angle; Medium base; 100-277 Volt

Specifications

General
StatusActive
Watts18
HID Equivalent100
Volts100V-277V
ShapePAR38
BaseMedium
ANSI BaseE26
FinishClear
CCT (Kelvin)4000
TemperatureCool White
CRI85
Lumens2000
Beam Spread25
DimmableNon-Dimmable
Hours Rated50000
Lamp TypePAR
TechnologyLED
Electrical
Watts18
HID Equivalent100
Volts100V-277V
Operating Frequency50/60 Hz
CCT (Kelvin)4000
TemperatureCool White
CRI85
Lumens2000
CBCP4660
Beam Spread25
DimmableNon-Dimmable
Dimming TypeN/A
Power Factor>0.9
Hours Rated50000
Operating Temperature-25C (-13F) to a maximum of +45C (+113F)
Physical
MOL5
MOD4.75
ShapePAR38
BaseMedium
ANSI BaseE26
FinishClear
LensedLensed Lamp
Lens FinishClear
Housing ColorWhite
Additional Information
Enclosure RatingOpen Rated Lamp
Rated For Enclosed FixtureNo
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus
Location RatingDry or Damp
Energy StarYes
ES Unique IDESID-2309672
CEC StatusNon-Compliant
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923097614
Each Quantity1
Each Length (in.)5.71
Each Width (in.)5.71
Each Height (in.)6.10
Each Weight (lb.)0.99
Each Cube (CuFt.)0.1116
Pack TypeBox
Inner UPC20045923097618
Inner Quantity6
Inner Length (in.)17.72
Inner Width (in.)17.72
Inner Height (in.)6.89
Inner Weight (lb.)11.50
Inner Cube (CuFt.)1.2141
Case UPC10045923097611
Case Quantity12
Case Length (in.)18.20
Case Width (in.)12.50
Case Height (in.)14.40
Case Weight (lb.)23.00
Case Cube (CuFt.)1.8384
