Lights

S9762

12W/LED/PAR30/SN/3K/100-277V

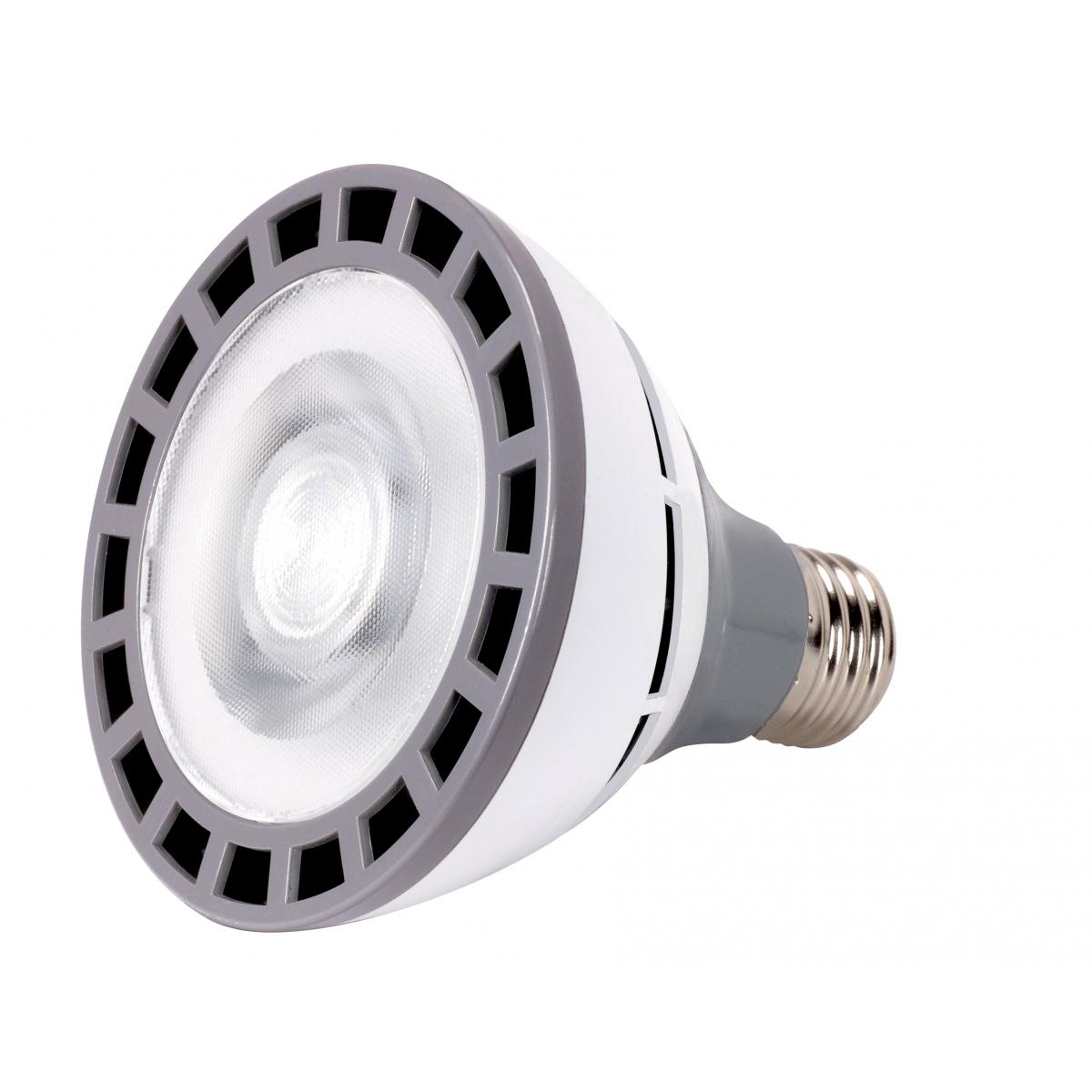

12 Watt PAR30 Short Neck LED; 3000K; 25 deg. Beam Angle; Medium base; 100-277 Volt

S9762 12W/LED/PAR30/SN/3K/100-277V

S9762

12W/LED/PAR30/SN/3K/100-277V

12 Watt PAR30 Short Neck LED; 3000K; 25 deg. Beam Angle; Medium base; 100-277 Volt

Specifications

General
StatusActive
Watts12
HID Equivalent50
Volts100V-277V
ShapePAR30SN
BaseMedium
ANSI BaseE26
FinishClear
CCT (Kelvin)3000
TemperatureWarm White
CRI84
Lumens1200
Beam Spread25
DimmableNon-Dimmable
Hours Rated50000
Lamp TypePAR
TechnologyLED
Electrical
Watts12
HID Equivalent50
Volts100V-277V
Operating Frequency50/60 Hz
CCT (Kelvin)3000
TemperatureWarm White
CRI84
Lumens1200
CBCP2850
Beam Spread25
DimmableNon-Dimmable
Dimming TypeN/A
Power Factor>0.9
Hours Rated50000
Operating Temperature-25C (-13F) to a maximum of +45C (+113F)
Physical
MOL3.5
MOD3.75
ShapePAR30SN
BaseMedium
ANSI BaseE26
FinishClear
LensedLensed Lamp
Lens FinishClear
Additional Information
Enclosure RatingOpen Rated Lamp
Rated For Enclosed FixtureNo
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus
Location RatingDry or Damp
Energy StarYes
ES Unique IDESID-2309674
CEC StatusNon-Compliant
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923097621
Each Quantity1
Each Length (in.)4.66
Each Width (in.)4.66
Each Height (in.)2.56
Each Weight (lb.)0.90
Each Cube (CuFt.)0.0312
Pack TypeBox
Inner UPC20045923097625
Inner Quantity12
Inner Length (in.)15.35
Inner Width (in.)10.43
Inner Height (in.)12.10
Inner Weight (lb.)12.60
Inner Cube (CuFt.)1.0871
Case UPC10045923097628
Case Quantity24
Case Length (in.)22.05
Case Width (in.)16.15
Case Height (in.)13.39
Case Weight (lb.)25.35
Case Cube (CuFt.)2.6758
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
