| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |

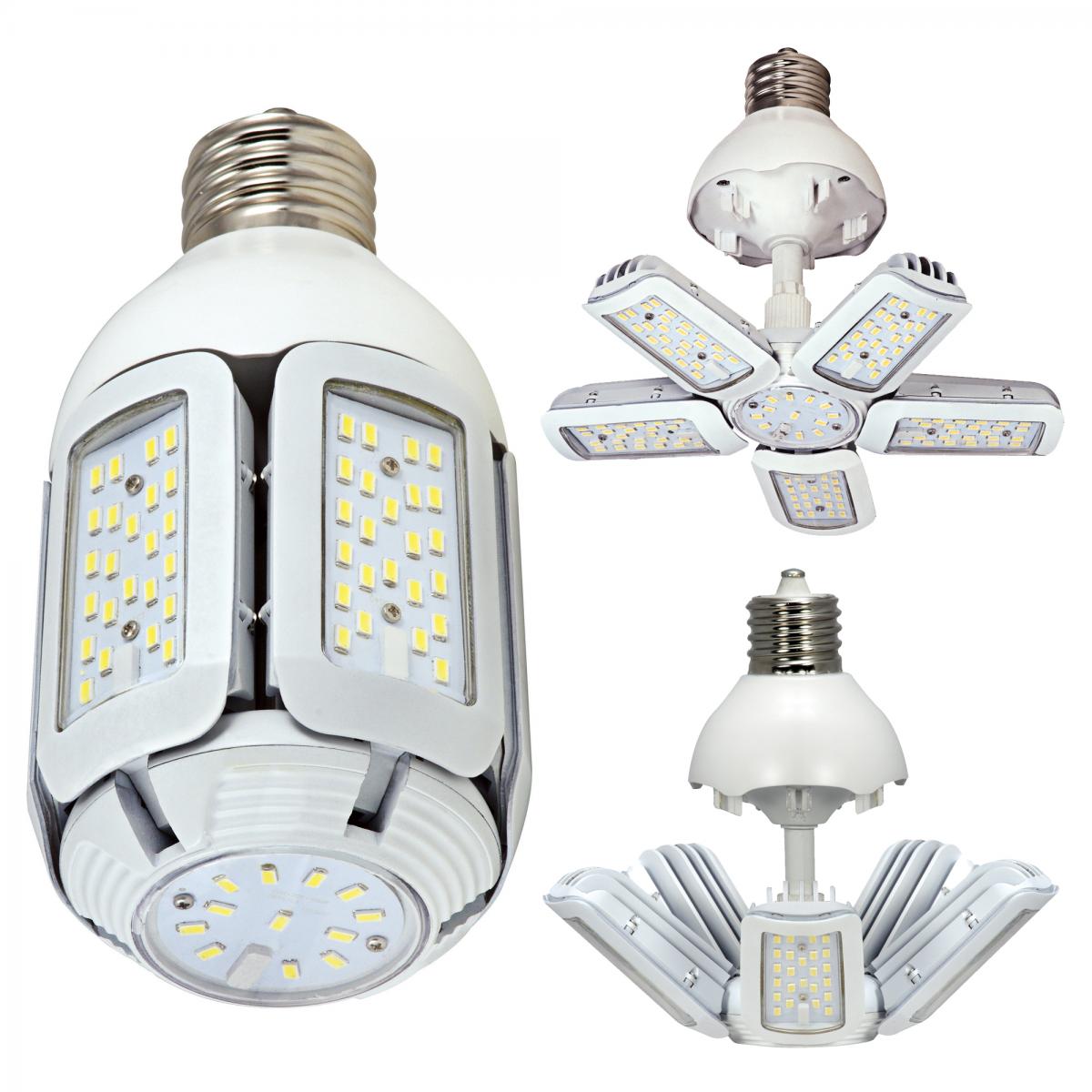

| Fixture Type | Corncob |
| Status | Discontinued |
| Most Current Generation | S39768 |
| Working Voltage | AC 90-305V |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | No Finish |
| Additional Info | Width 360 deg 3.2 in.; Width 270 deg 6.8 in.; Width 180 deg 7.7 in. |
| Amps | 0.300-0.108A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lensed | True |
| Minimum Compartment Size | Length: 11.02 in. Width: 8 in. Depth: 8 in. |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Fluor Equiv | 55W |
| Incandescent Equivalent | 200W |
| CCT (Kelvin Temp) | 2700K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 360 |
| Color Temp | Warm White |
| CRI | 80+ |
| Operating Frequency | 50-60Hz |
| Operating Temp | -20C (-4F) to +65C (+149F) |
| HID Equivalent | 150W |
| Lumens | 3660L |
| Volts | 120V-277V |
| Watts | 30W |
| Lamp Base | Medium |
|---|---|
| Finish | Clear |
| Housing Color | White |
| ANSI Base | E26 |
| Lamp Type | Corncob |
| MOD Lamps | 3.19 |
| MOL | 6.38 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. Arms fully open diameter is 7.69 inches |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - >2600 Lumens |
|---|---|
| CA Status | Lawful for sale in California |
| CO Status | Lawful for sale |
| FCC Compliant | True |
| HI Status | Lawful for sale |
| IP Rating | IP65 |
| Location Rating | Damp |
| NV Status | Lawful for sale |
| ROHS Compliant | Yes |
| Safety Listing | cULus |
| CA Compliance Text | Lawful for sale |
| VT Status | Lawful for sale |
| WA Status | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923097683 |
|---|---|
| Case Cube | 2.5613 |
| Case Height | 13.58 |
| Case Length | 18.31 |
| Case Quantity | 24 |
| Case UPC | 10045923097680 |
| Case Weight | 42.55 |
| Case Width | 17.8 |
| EA Cube | 0.0997 |
| EA Height | 7.8 |
| EA Length | 4.7 |
| EA Quantity | 1 |
| EA Weight | 1.62 |
| EA Width | 4.7 |
| Inner Cube | 0.5222 |
| Inner Height | 8.66 |
| Inner Length | 12.6 |
| Inner Quantity | 6 |
| Inner UPC | 20045923097687 |
| Inner Weight | 10.09 |
| Inner Width | 8.27 |
| Pack Type | Box |
| Web Length | 6.38 |
| Web Width | 3.19 |
