Discontinued – Suggested Replacement: S39769
S9769 75W/LED/HID/MB/5000K/100-277V

S9769

75W/LED/HID/MB/5000K/100-277V

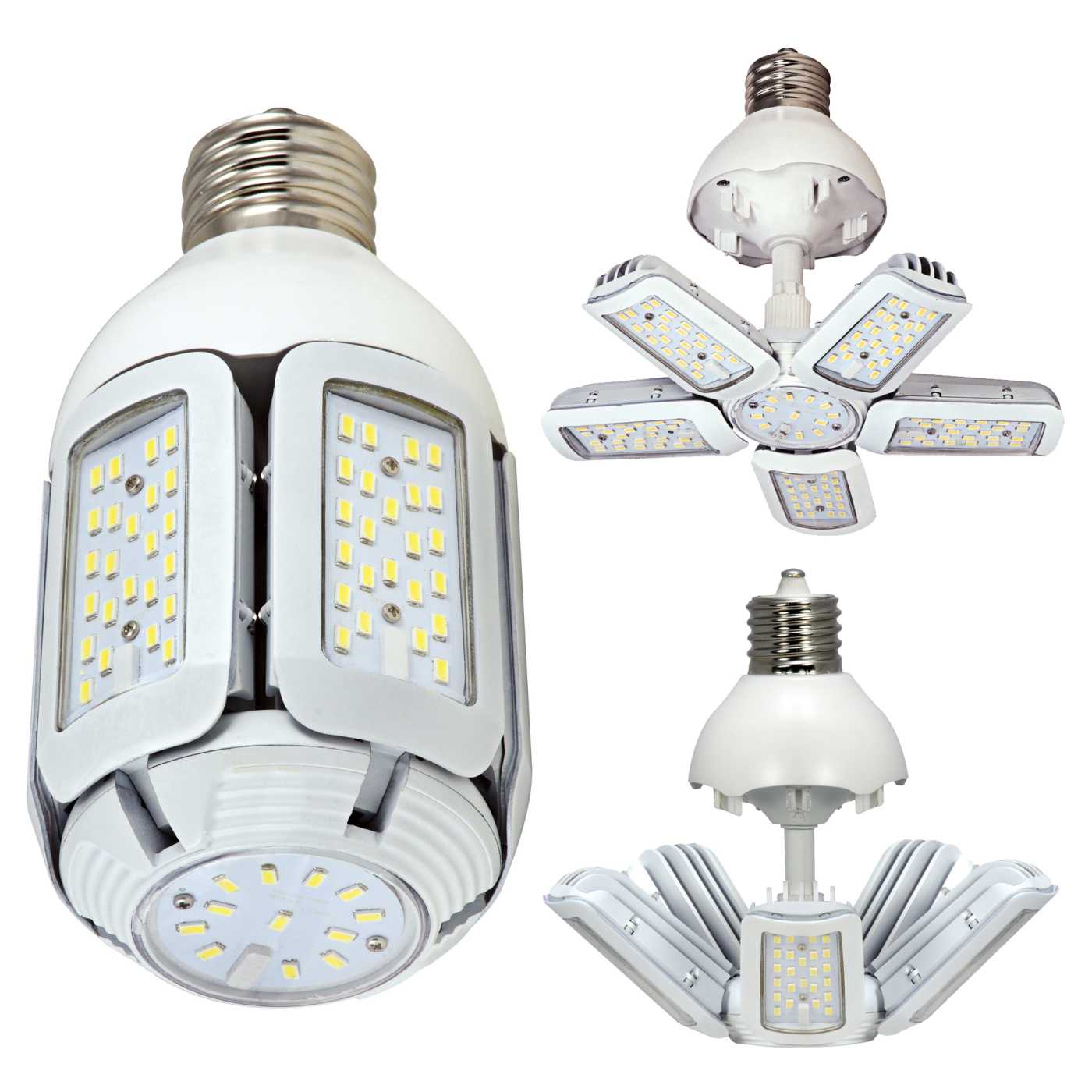

75 Watt - LED HID Replacement; 5000K; Mogul Extended base; Adjustable beam angle; 100-277 Volt


Lights

S9769

75W/LED/HID/MB/5000K/100-277V

75 Watt - LED HID Replacement; 5000K; Mogul Extended base; Adjustable beam angle; 100-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS39769
Watts75W
Incandescent Equivalent750W
Fluorescent Equivalent105W
HID Equivalent400W
Volts100V-277V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens9800L
Beam Spread360
DimmableNon-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 8.27 in. Width: 9.25 in. Depth: 9.25 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts75W
Incandescent Equivalent750W
Fluorescent Equivalent105W
HID Equivalent400W
Volts100V-277V
Ballasting RequirementsBallast Bypass
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens9800L
Beam Spread360
DimmableNon-Dimmable
Hours Rated50000
Operating PositionUniversal
Surge ProtectionBuilt-in surge protection - 2.5KV
Physical
MOL8.63
MOD4.19
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
Lens FinishClear
Housing ColorWhite
Additional Information
Additional InfoWidth 360 deg 4.2 in.; Width 270 deg 9.3 in.; Width 180 deg 10.9 in.
Min Compartment SizeLength: 8.27 in. Width: 9.25 in. Depth: 9.25 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Installation NotesArms fully open diameter is 10.88 inches
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923097690
Each Quantity1
Each Length (in.)5.40
Each Width (in.)5.40
Each Height (in.)9.80
Each Weight (lb.)2.50
Each Cube (CuFt.)0.1654
Pack TypeBox
Inner UPC20045923097694
Inner Quantity6
Inner Length (in.)16.90
Inner Width (in.)11.60
Inner Height (in.)0.40
Inner Weight (lb.)18.50
Inner Cube (CuFt.)0.0454
Case UPC10045923097697
Case Quantity12
Case Length (in.)24.20
Case Width (in.)17.70
Case Height (in.)11.80
Case Weight (lb.)41.80
Case Cube (CuFt.)2.9250
