SKU S9779 - Image 1
S9779

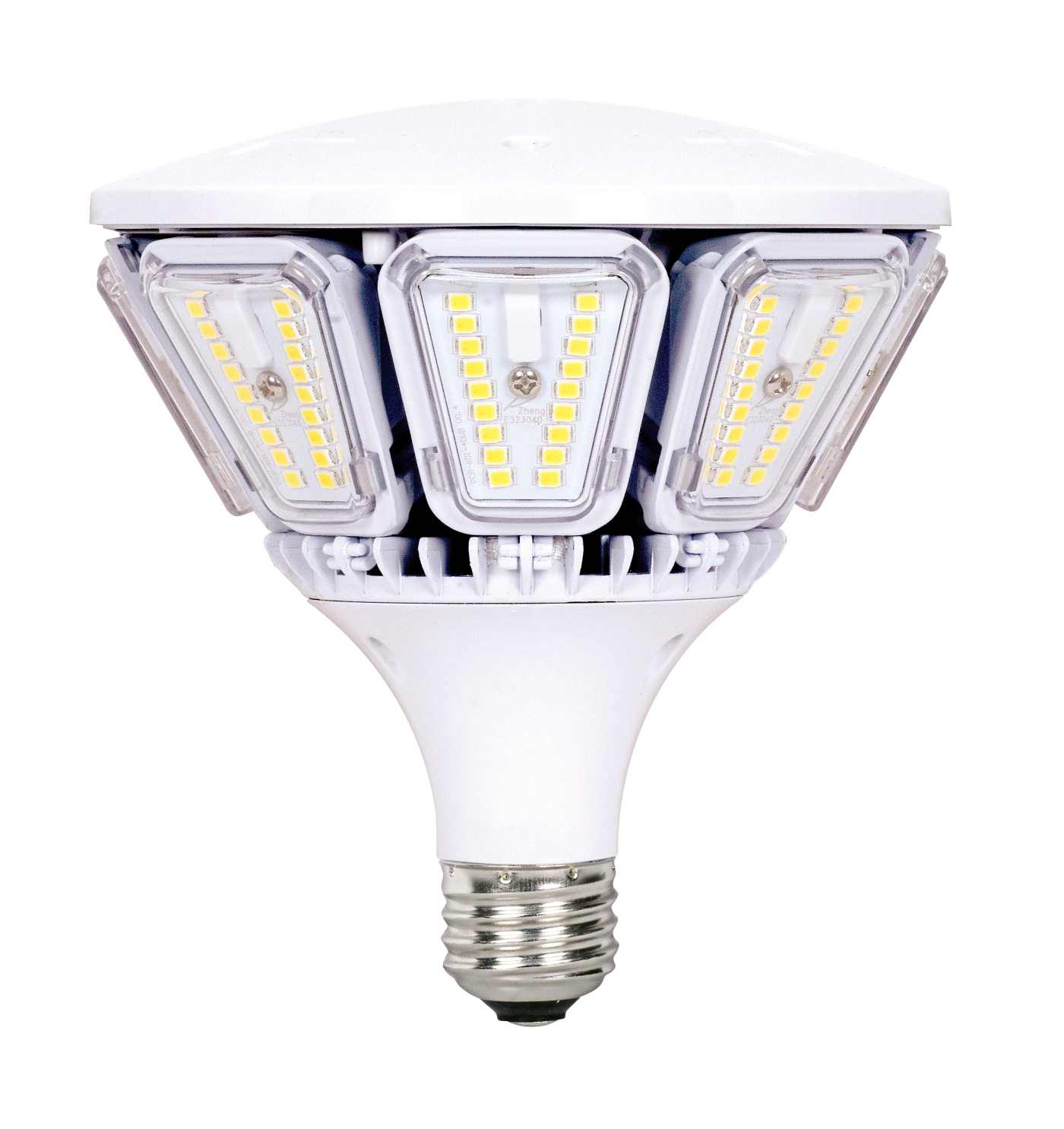

40W/LED/HID/PT/3000K/100-277V

  • 40 Watt Post Top LED
  • 3000K
  • Medium base
  • Post top
  • 100-277 Volt
location_rating^damp^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S9779 SpecificationsS9779 Installation Instructions EnS9779 Instructions
Tools
Lighting Layout Analysis For S9779
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
40 Watt Post Top LED; 3000K; Medium base; Post top; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeCorncob
StatusActive
StyleUtility
Most Current GenerationS13148
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.400-0.144A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Minimum Compartment SizeLength: 8.27 in. Width: 9.25 in. Depth: 9.25 in.
Operating PositionBase Up or Down
Power Factor>0.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv85W
Incandescent Equivalent300W
Electrical
CCT (Kelvin Temp)3000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +45C (+113F)
HID Equivalent175W
Lumens5000L
Volts120V-277V
Watts40W
Physical
Lamp BaseMedium
FinishClear
Housing ColorWhite
ANSI BaseE26
Lamp TypeCorncob
MOD Lamps5.13
MOL5.5
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsExempt - >2600 Lumens
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923097799
Case Cube2.1756
Case Height15.16
Case Length19.09
Case Quantity12
Case UPC10045923097796
Case Weight29.5
Case Width12.99
EA Cube0.1518
EA Height7.05
EA Length6.1
EA Quantity1
EA Weight1.64
EA Width6.1
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length5.5
Web Width5.13
