| Company | SATCO |
|---|---|
| Dimmable Text | Only in Type A mode; Check Ballast MFG for Dimmer Compatibility |
| Lamp Filament | LED |
| Fixture Type | Linear |
| Status | Obsolete |
| Most Current Generation | S49992 |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | White |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Gloss White |
| Lensed | Yes |
| Nominal Length | 36.0 |
| Operating Position | Universal |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Fluor Equiv | 25W |
| Incandescent Equivalent | 60W |
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 230 |
| Color Temp | Cool White |
| CRI | 80+ |
| Operating Temp | -20C (-4F) to +45C (+113F) |

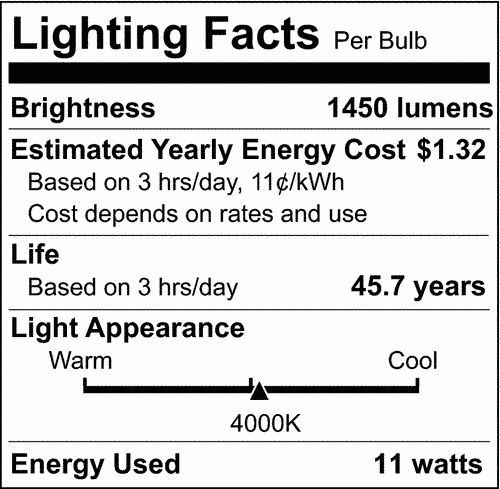

| Lumens | 1450L |
| Watts | 11W |
| Lamp Base | Medium Bi Pin |
|---|---|
| Finish | Gloss White |
| ANSI Base | G13 |
| Lamp Type | T8 |
| MOD Lamps | 1.0 |
| MOL | 36.0 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| FCC Compliant | Yes |
|---|---|
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus |
| California Ban | Lawful for sale |
| DLC Approved | No |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923097928 |
|---|---|
| Case Cube | 0.5324 |
| Case Height | 4.33 |
| Case Length | 25.6 |
| Case Quantity | 10 |
| Case UPC | 10045923097925 |
| Case Weight | 3.2 |
| Case Width | 8.3 |
| EA Cube | 0.0285 |
| EA Height | 1.18 |
| EA Length | 35.4 |
| EA Quantity | 1 |
| EA Weight | 1.43 |
| EA Width | 1.18 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Egg Crate |
| Web Length | 36.0 |
| Web Width | 1.0 |
