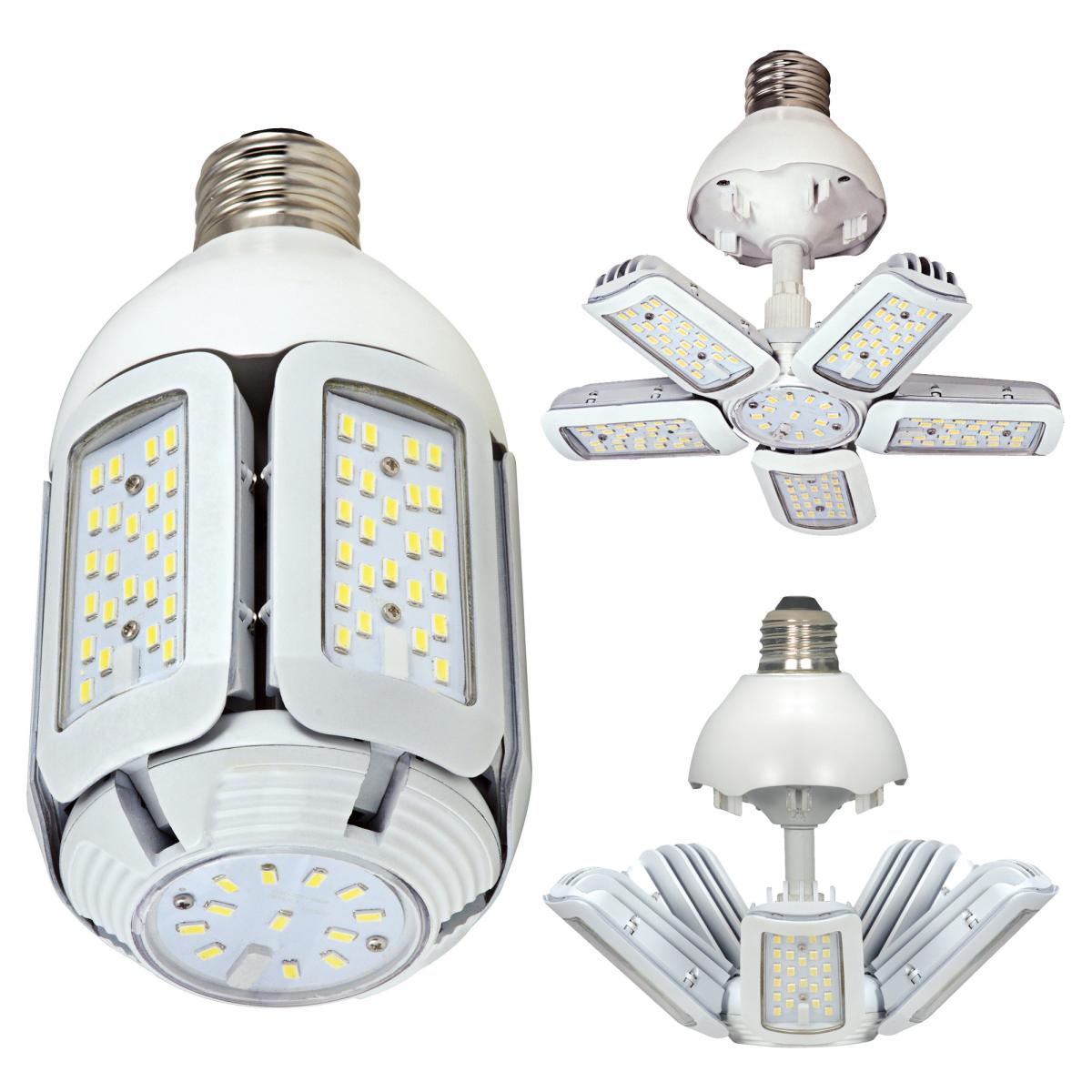

40W/LED/HID/MB/2700K/100-277V - S9798
S9798

40W/LED/HID/MB/2700K/100-277V

Discontinued - Suggested Replacement: S39798
  • 40 Watt - LED HID Replacement
  • 2700K
  • Mogul extended base
  • Adjustable beam angle
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
fcc_compliant^true^3
rohs_compliant^y^3
S9798 SpecificationsS9798 Photometrics.iesS9798 Installation Instructions En.pdf
Tools
Lighting Layout Analysis For S9798
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
40 Watt - LED HID Replacement; 2700K; Mogul extended base; Adjustable beam angle; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
Fixture TypeCorncob
StatusDiscontinued
Working VoltageAC 90-305V
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Additional InfoWidth 360 deg 3.5 in.; Width 270 deg 7.7 in.; Width 180 deg 8.9 in.
Amps0.400-0.144A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Minimum Compartment SizeLength: 8.27 in. Width: 9.25 in. Depth: 9.25 in.
Operating PositionUniversal
Power Factor>.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv65W
Incandescent Equivalent300W
Electrical
CCT (Kelvin Temp)2700K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Operating Frequency50-60Hz
Operating Temp-20C (-4F) to +65C (+149F)
HID Equivalent175W

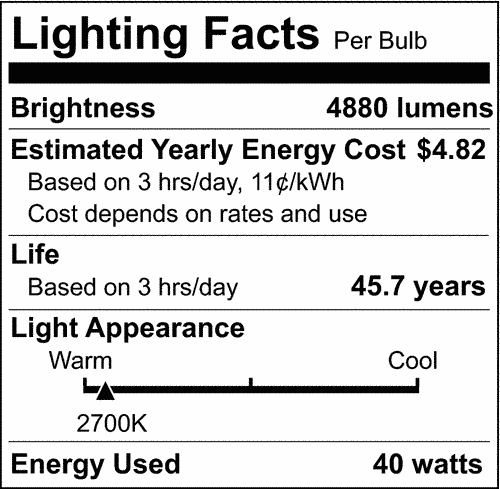

Lumens4880L
Volts120V-277V
Watts40W
Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhite
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps3.5
MOL7.88
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures. Arms fully open diameter is 8.88 inches
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP65
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923097980
Case Cube1.7711
Case Height10.43
Case Length19.88
Case Quantity12
Case UPC10045923097987
Case Weight29.9
Case Width14.76
EA Cube0.1716
EA Height9.8
EA Length5.5
EA Quantity1
EA Weight2.29
EA Width5.5
Inner Cube0.7323
Inner Height9.45
Inner Length14.17
Inner Quantity6
Inner UPC20045923097984
Inner Weight14.1
Inner Width9.45
Pack TypeBox
Web Length7.88
Web Width3.5
