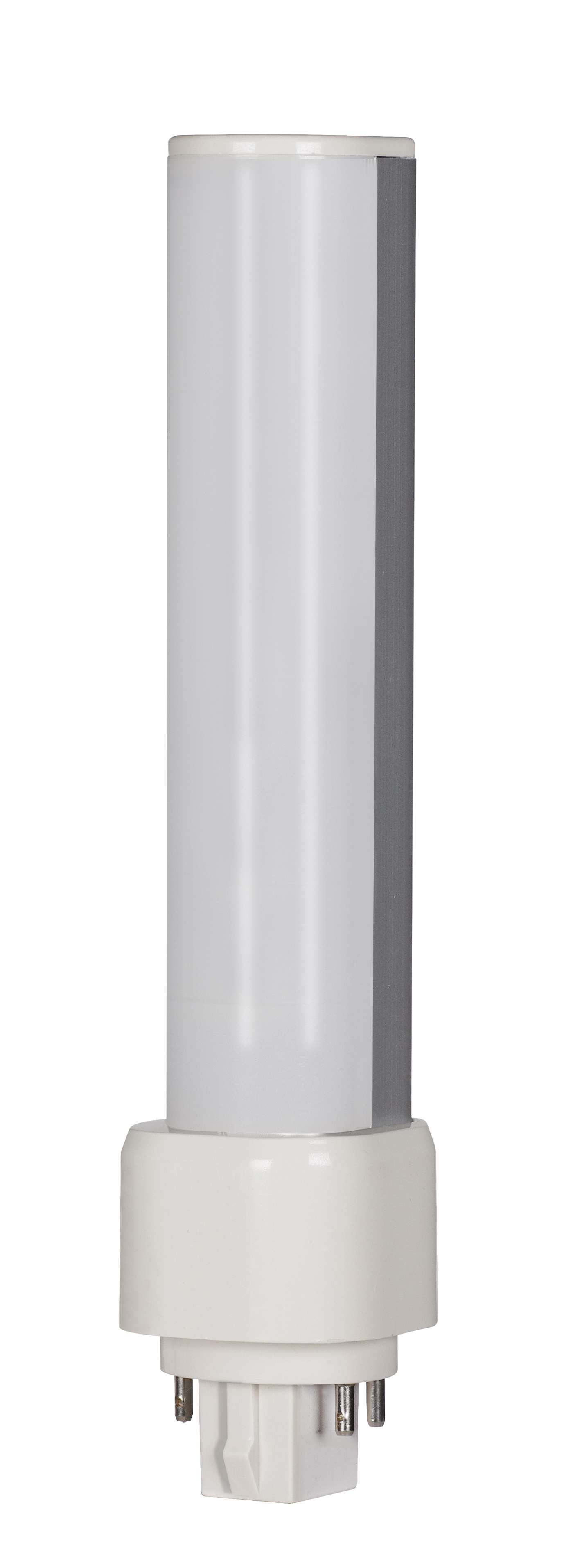

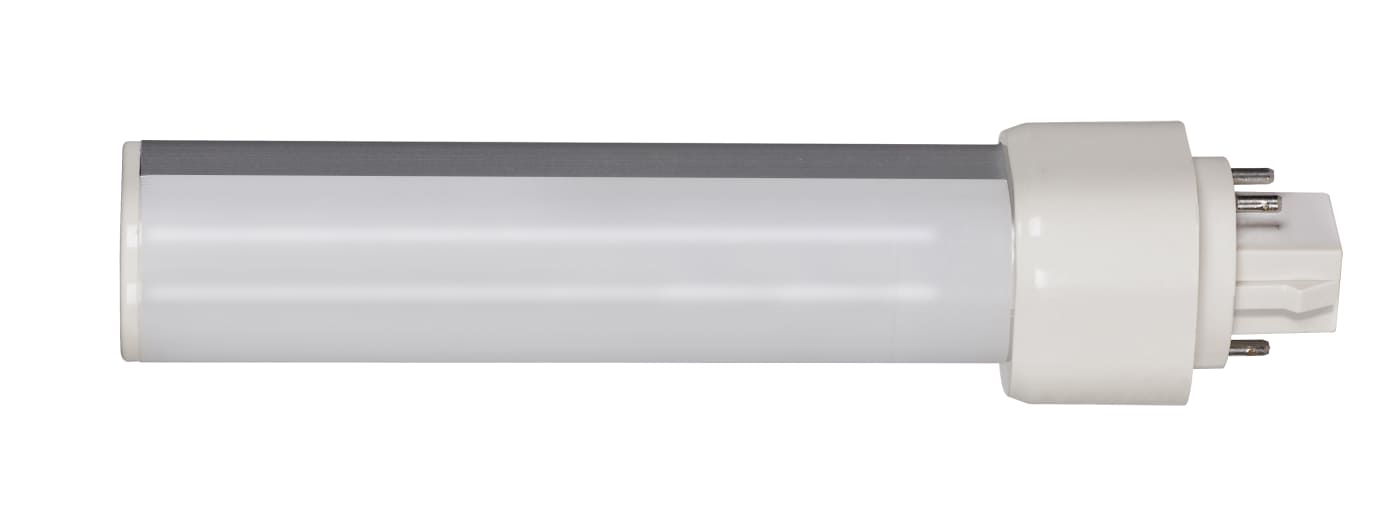

9WPLH/LED/830/DR/4P - S9850
9WPLH/LED/830/DR/4P - S9850
S9850

9WPLH/LED/830/DR/4P

Discontinued - Suggested Replacement: S29850
  • 9 Watt LED PL 4-Pin
  • 3000K
  • 850 Lumens
  • G24q base
  • 50000 Average rated hours
  • 120 Deg. Beam Angle
location_rating^damp^1
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S9850 SpecificationsS9850 Photometrics.iesS9850 Ballast Compatibility Chart.pdf
Tools
Lighting Layout Analysis For S9850
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9 Watt LED PL 4-Pin; 3000K; 850 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypePL
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)3000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm White
CRI80+
Operating Temp-20C (-4F) to +45C (+113F)
Lumens850L
Watts9W
Physical
Lamp BaseG24q (4-Pin)
FinishFrost
Housing ColorWhite
ANSI BaseG24q
Lamp TypePL
MOD Lamps1.09
MOL6.63
Additional Info
Warranty5-Years
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923098505
Case Cube0.6689
Case Height9.1
Case Length14.6
Case Quantity50
Case UPC10045923098502
Case Weight12.13
Case Width8.7
EA Cube0.0089
EA Height1.5
EA Length6.8
EA Quantity1
EA Weight0.23
EA Width1.5
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length6.63
Web Width1.09
