Discontinued – Suggested Replacement: S29859

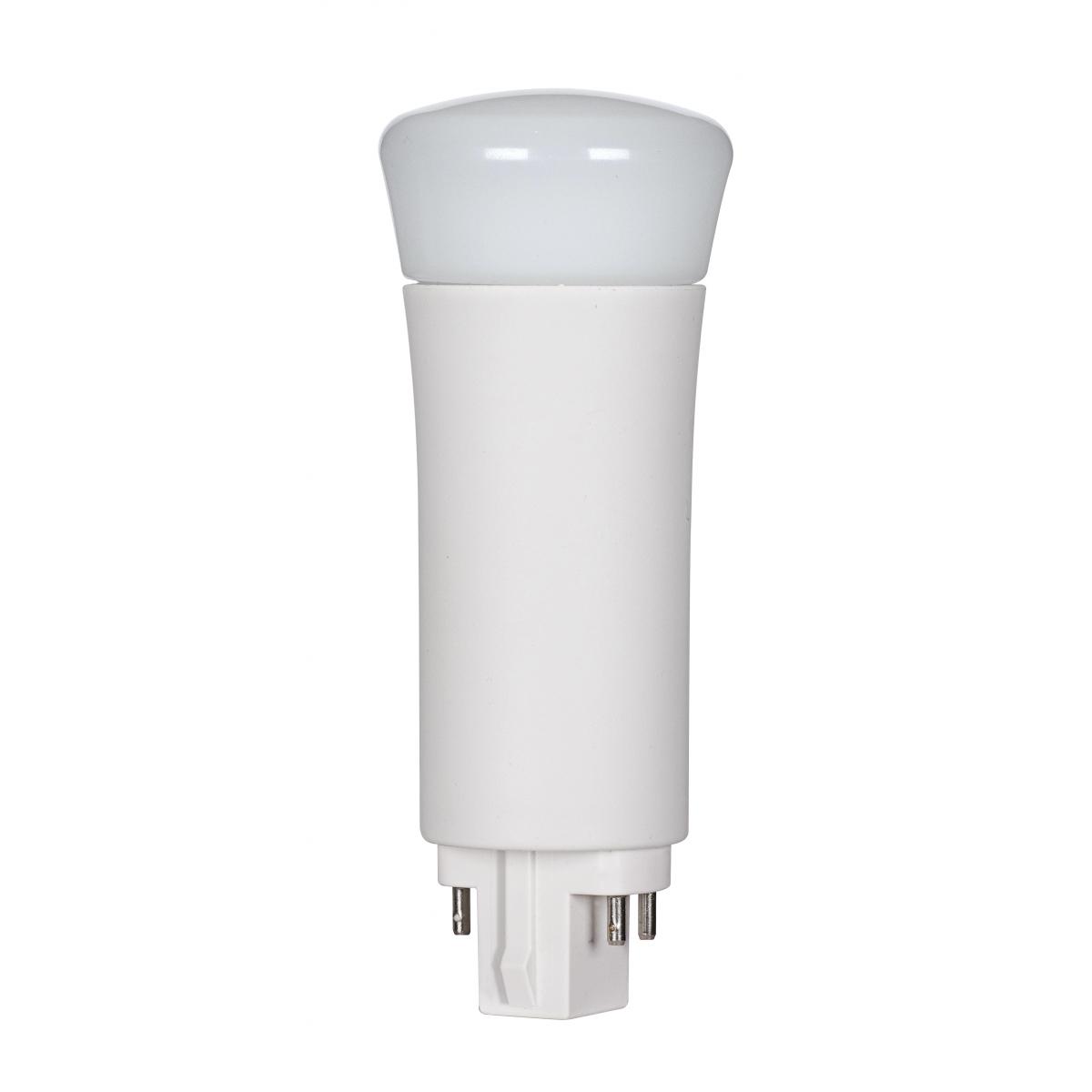

S9859 9WPLV/LED/835/DR/4P

S9859

9WPLV/LED/835/DR/4P

9 Watt LED PL 4-Pin; 3500K; 850 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle


Lights

S9859

9WPLV/LED/835/DR/4P

9 Watt LED PL 4-Pin; 3500K; 850 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle

Specifications

General
StatusDiscontinued
SubstituteS29859
Watts9W
Fluorescent Equivalent26W
ShapePL
BaseG24q (4-Pin)
ANSI BaseG24q
FinishFrost
CCT (Kelvin)3500K
TemperatureNeutral White
CRI80+
Lumens850L
Beam Spread120
DimmableNon-Dimmable
Hours Rated50000
Product CategoryPL
Lamp TypePL
Operating PositionUniversal
TechnologyLED
Electrical
Watts9W
Fluorescent Equivalent26W
CCT (Kelvin)3500K
TemperatureNeutral White
CRI80+
Lumens850L
Beam Spread120
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
Operating PositionUniversal
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL4.69
MOD1.91
ShapePL
BaseG24q (4-Pin)
ANSI BaseG24q
FinishFrost
Housing ColorWhite
Additional Information
Warranty5-Years
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
DLC ApprovedNo
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923098598
Each Quantity1
Each Length (in.)4.90
Each Width (in.)2.00
Each Height (in.)2.00
Each Weight (lb.)0.25
Each Cube (CuFt.)0.0113
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923098595
Case Quantity50
Case Length (in.)11.00
Case Width (in.)10.60
Case Height (in.)11.00
Case Weight (lb.)15.01
Case Cube (CuFt.)0.7422
×
×

Ballast Compatibility

Name Type View
PL 4 Pin Electronic LED CFL Replacements Pin Based View
Ballast Compatibility Chart LED CFL Replacements Pin Based View
Emergency Ballast IOTA LED CFL Replacements Pin Based View
Dimming Ballast LED CFL Replacements Pin Based View
×

Precautions

No precautions available at this time.

×
