Discontinued – Suggested Replacement: S29861

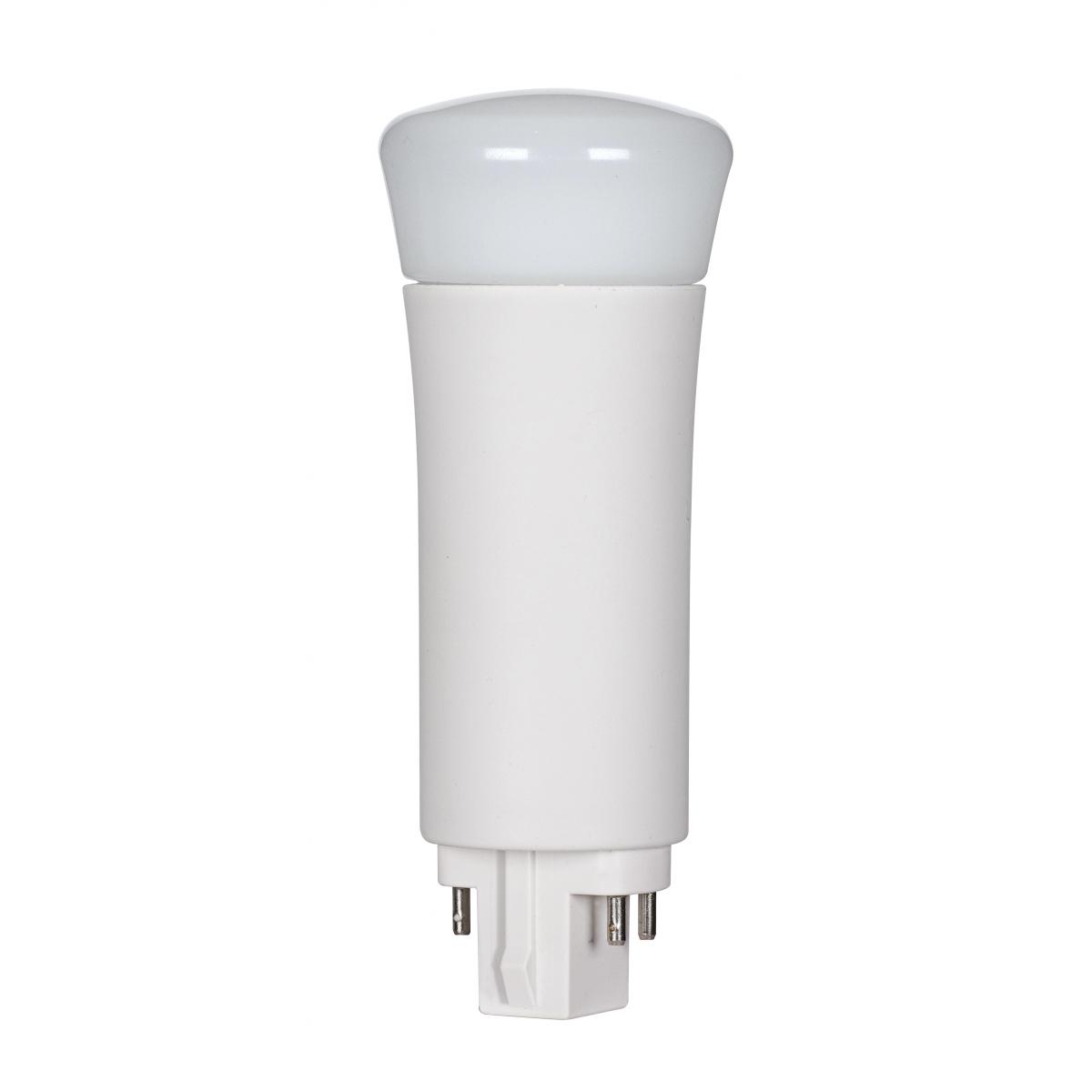

S9861 9WPLV/LED/850/DR/4P

S9861

9WPLV/LED/850/DR/4P

9 Watt LED PL 4-Pin; 5000K; 900 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle


Lights

S9861

9WPLV/LED/850/DR/4P

9 Watt LED PL 4-Pin; 5000K; 900 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle

Specifications

General
StatusDiscontinued
SubstituteS29861
Watts9W
Fluorescent Equivalent26W
ShapePL
BaseG24q (4-Pin)
ANSI BaseG24q
FinishFrost
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens900L
Beam Spread120
DimmableNon-Dimmable
Hours Rated50000
Product CategoryPL
Lamp TypePL
Operating PositionUniversal
TechnologyLED
Electrical
Watts9W
Fluorescent Equivalent26W
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens900L
Beam Spread120
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
Operating PositionUniversal
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL4.69
MOD1.91
ShapePL
BaseG24q (4-Pin)
ANSI BaseG24q
FinishFrost
Housing ColorWhite
Additional Information
Warranty5 Year Limited - 3 hr per day
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923098611
Each Quantity1
Each Length (in.)4.90
Each Width (in.)2.00
Each Height (in.)2.00
Each Weight (lb.)0.25
Each Cube (CuFt.)0.0113
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923098618
Case Quantity50
Case Length (in.)11.00
Case Width (in.)10.60
Case Height (in.)11.00
Case Weight (lb.)15.01
Case Cube (CuFt.)0.7422
×
×

Ballast Compatibility

Name Type View
PL 4 Pin Electronic LED CFL Replacements Pin Based View
Ballast Compatibility Chart LED CFL Replacements Pin Based View
Emergency Ballast IOTA LED CFL Replacements Pin Based View
Dimming Ballast LED CFL Replacements Pin Based View
×

Precautions

No precautions available at this time.

×
