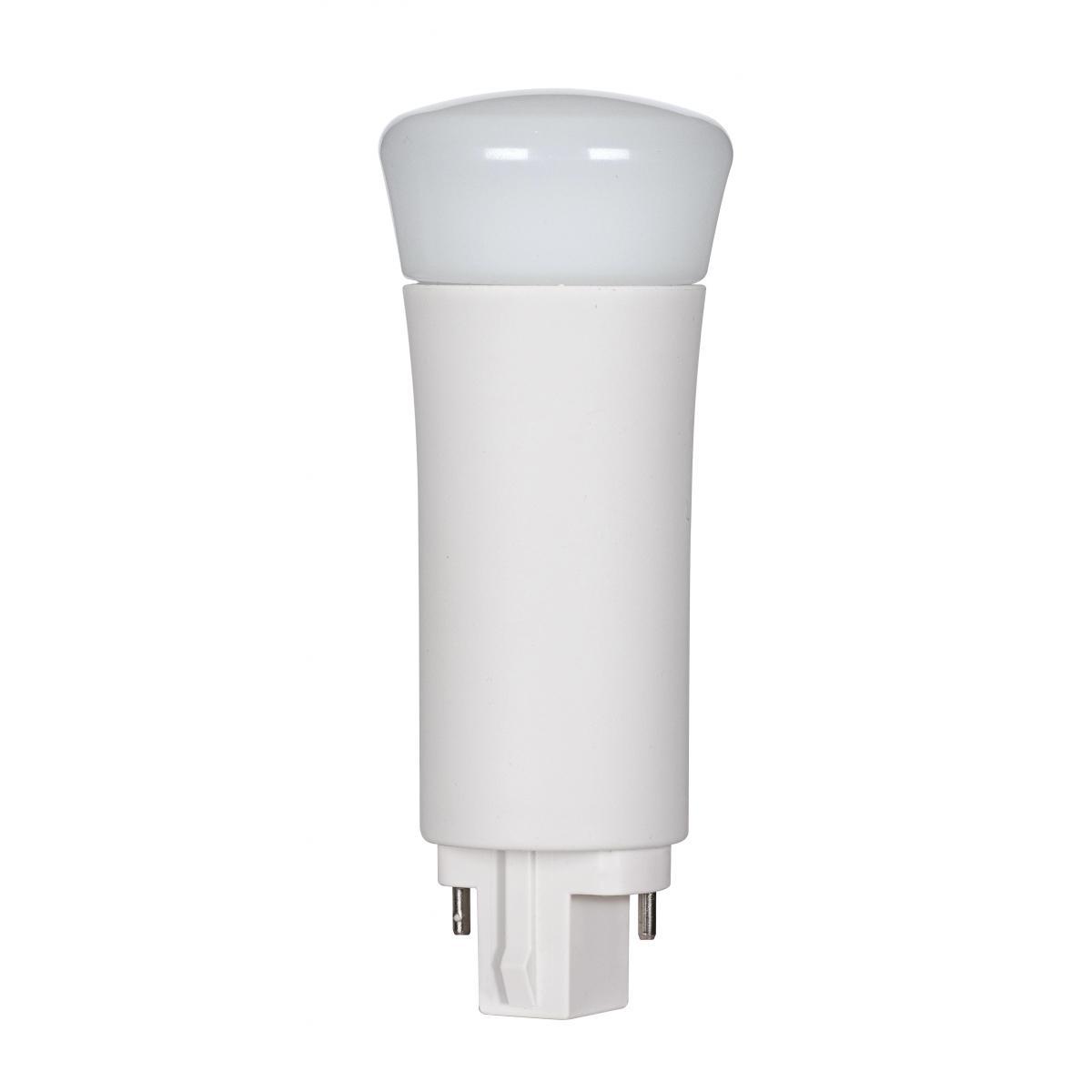

S9862

9WPLV/LED/830/DR/2P

9 Watt LED PL 2-Pin; 3000K; 850 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; Type A; Ballast dependent

S9862 9WPLV/LED/830/DR/2P

S9862

9WPLV/LED/830/DR/2P

9 Watt LED PL 2-Pin; 3000K; 850 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; Type A; Ballast dependent

Specifications

General
StatusActive
Watts9
Ballast TypeType A
ShapePL
Base2-Pin
ANSI BaseG24d
FinishFrosted
CCT (Kelvin)3000
TemperatureWarm White
CRI82
Lumens850
Beam Spread120
DimmableNon-Dimmable
Hours Rated50000
Lamp TypePL
Burning PositionVertical Operation
TechnologyLED
Electrical
Watts9
Ballasting RequirementsBallastrequired
Ballast TypeType A
CCT (Kelvin)3000
TemperatureWarm White
CRI82
Lumens850
Beam Spread120
DimmableNon-Dimmable
Dimming TypeN/A
Hours Rated50000
Burning PositionVertical Operation
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL4.69
MOD1.91
ShapePL
Base2-Pin
ANSI BaseG24d
FinishFrosted
Housing ColorWhite
Additional Information
Enclosure RatingEnclosed Rated Lamp
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus Classified
Location RatingDamp
Energy StarNo
CEC StatusLawful for sale in California
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923098628
Each Quantity1
Each Length (in.)2.00
Each Width (in.)2.00
Each Height (in.)4.80
Each Weight (lb.)0.29
Each Cube (CuFt.)0.0108
Pack TypeBox
Inner UPC20045923098622
Inner Quantity10
Inner Length (in.)10.00
Inner Width (in.)4.17
Inner Height (in.)5.12
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.1198
Case UPC10045923098625
Case Quantity50
Case Length (in.)11.00
Case Width (in.)10.60
Case Height (in.)10.60
Case Weight (lb.)15.30
Case Cube (CuFt.)0.6936
×
×

Ballast Compatibility

Name Type View
PL 2 Pin Mag Vertical LED CFL Replacements Pin Based View
PL 2 Pin Mag LED CFL Replacements Pin Based View
Emergency Ballast IOTA LED CFL Replacements Pin Based View
×

Precautions

No precautions available at this time.

×
