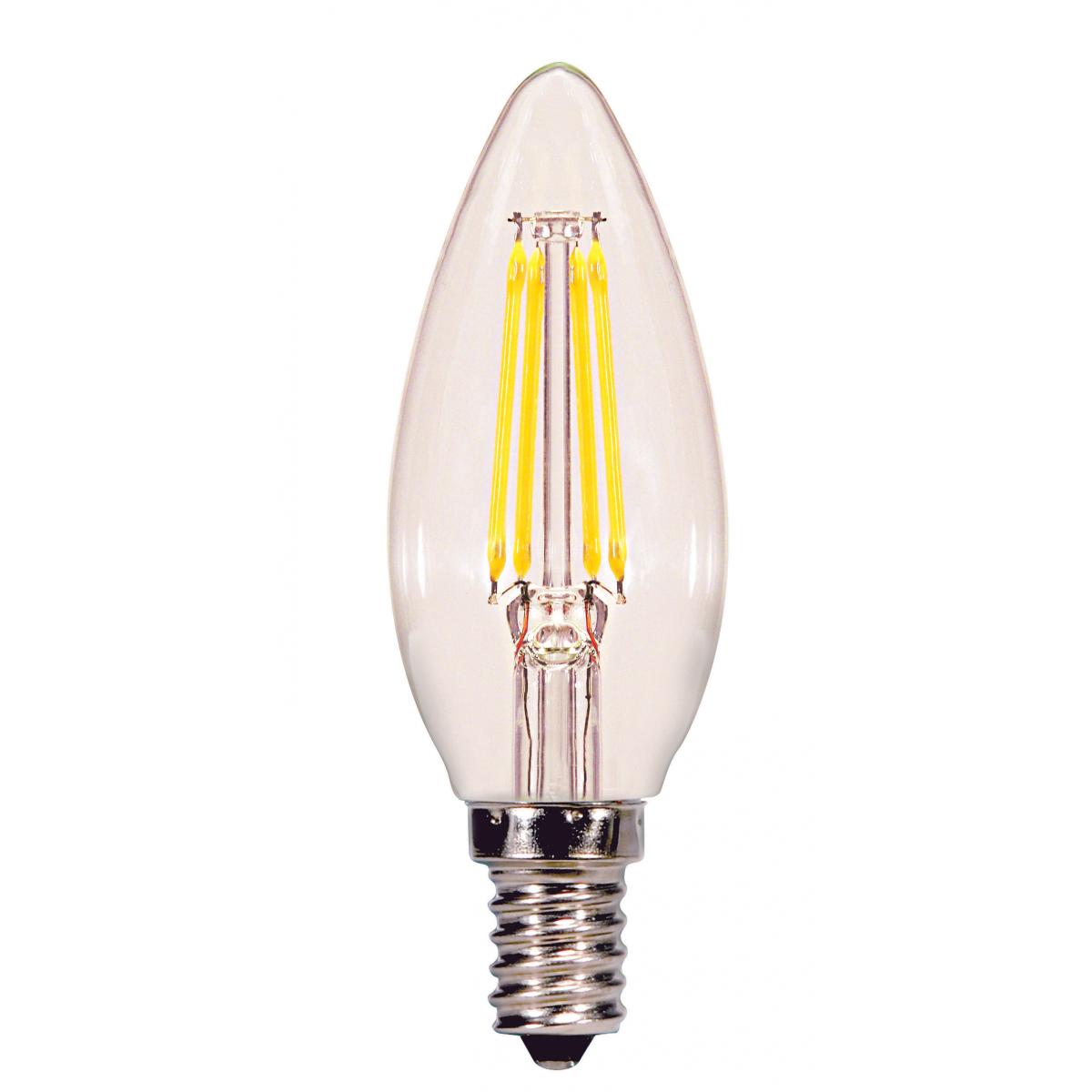

3.5CTC/LED/CL/50K/120V - S9866
S9866

3.5CTC/LED/CL/50K/120V

Discontinued - Suggested Replacement: S21268
  • 3.5 Watt CTC LED Filament
  • Clear
  • Candelabra base
  • 5000K
  • 350 Lumens
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3

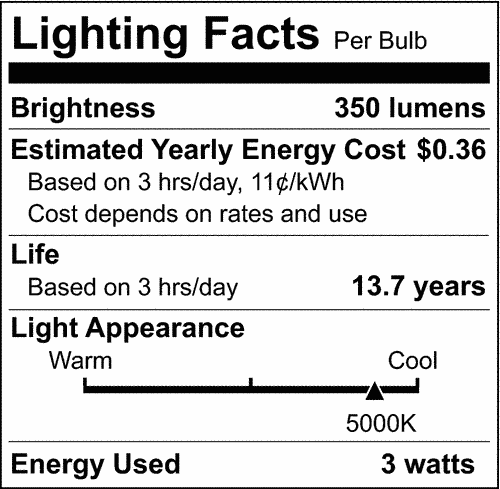

S9866 SpecificationsS9866 Photometrics.iesS9866 Lighting Facts Label
Tools
Lighting Layout Analysis For S9866
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
3.5 Watt CTC LED Filament; Clear; Candelabra base; 5000K; 350 Lumens; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED Filament
Fixture TypeCandle
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Amps0.029A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempNatural Light
CRI80+
Dimming TypeReverse Phase
Operating Temp-20C (-4F) to +45C (+113F)
Lumens350L
Volts120v
Watts3.5W
Physical
Lamp BaseCandelabra
FinishClear
ANSI BaseE12
Lamp TypeC11
MOD Lamps1.38
MOL4.31
Additional Info
Warranty2-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
US State BanCA
Packaging
UPC045923098666
Case Cube0.3336
Case Height6.34
Case Length11.38
Case Quantity24
Case UPC10045923098663
Case Weight2.2
Case Width7.99
EA Cube0.0066
EA Height4.37
EA Length1.61
EA Quantity1
EA Weight0.15
EA Width1.61
Inner Cube0.0574
Inner Height5.16
Inner Length5.31
Inner Quantity6
Inner UPC20045923098660
Inner Weight0.9
Inner Width3.62
Pack TypeBox
Web Length4.31
Web Width1.38
