Lights

S9914

14T8/LED/48-835/BP 120-277V

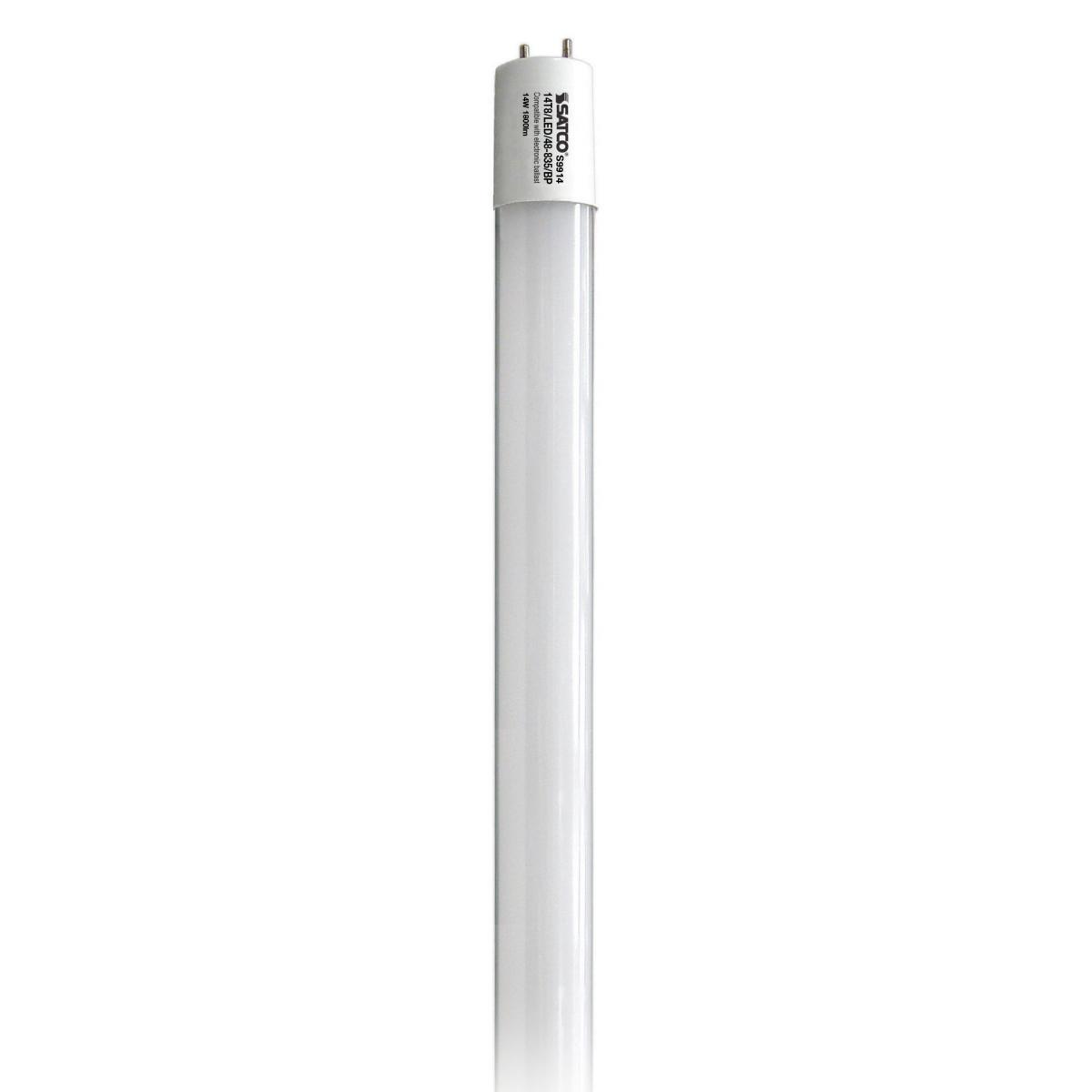

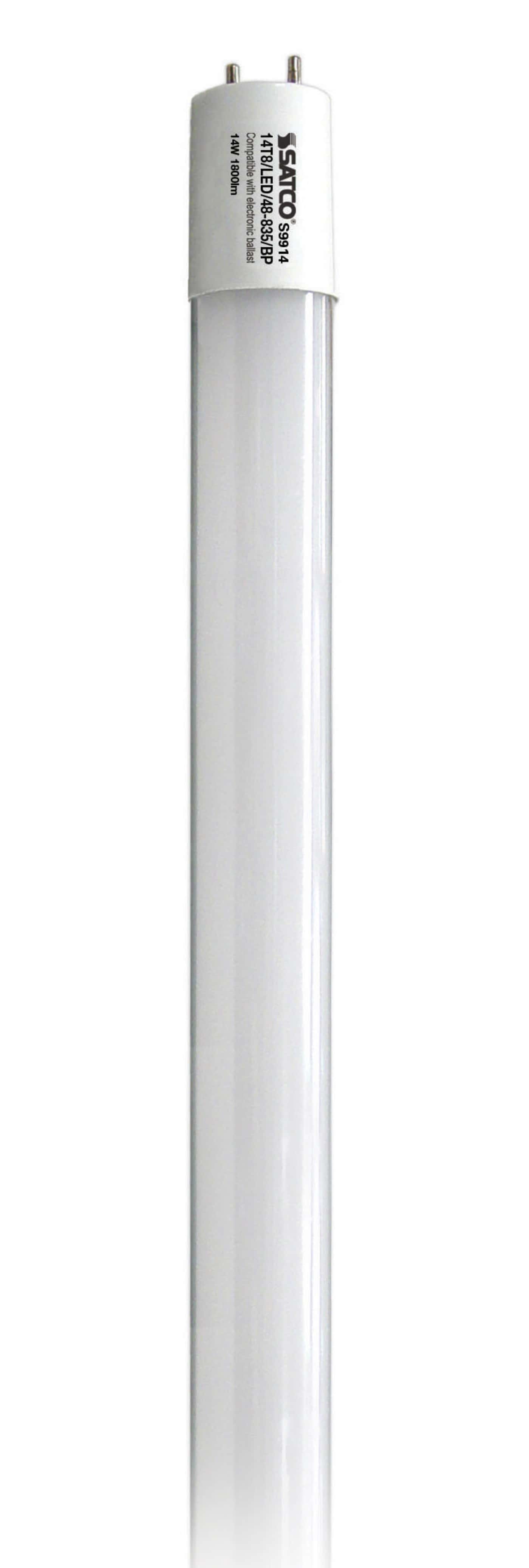

14 Watt T8 LED; Medium bi-pin base; 3500K; 50000 Average rated hours; 1700 Lumens

S9914 14T8/LED/48-835/BP 120-277V

S9914

14T8/LED/48-835/BP 120-277V

14 Watt T8 LED; Medium bi-pin base; 3500K; 50000 Average rated hours; 1700 Lumens

Specifications

General
StatusDiscontinued
SubstituteS29914
Watts14
Fluorescent Equivalent25-32
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishFrosted
CCT (Kelvin)3500
TemperatureNeutral White
CRI82
Lumens1700
Beam Spread220
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts14
Fluorescent Equivalent25-32
Volts120V-277V
Ballast TypeType B
Operating Frequency50/60 Hz
CCT (Kelvin)3500
TemperatureNeutral White
CRI82
Lumens1700
Beam Spread220
DimmableNon-Dimmable
Dimming TypeN/A
Power Factor0.9
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL48
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrosted
Additional Information
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPZ8RBRB2
CEC StatusLawful for sale in California
RoHS CompliantYes
NSF ApprovedYes - Approved
Packaging
Each UPC045923099144
Each Quantity1
Each Length (in.)47.70
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.51
Each Cube (CuFt.)0.0268
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923099141
Case Quantity10
Case Length (in.)48.40
Case Width (in.)6.30
Case Height (in.)3.00
Case Weight (lb.)6.10
Case Cube (CuFt.)0.5133
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
