S9932

15T8U6/LED/22.5-840/BP

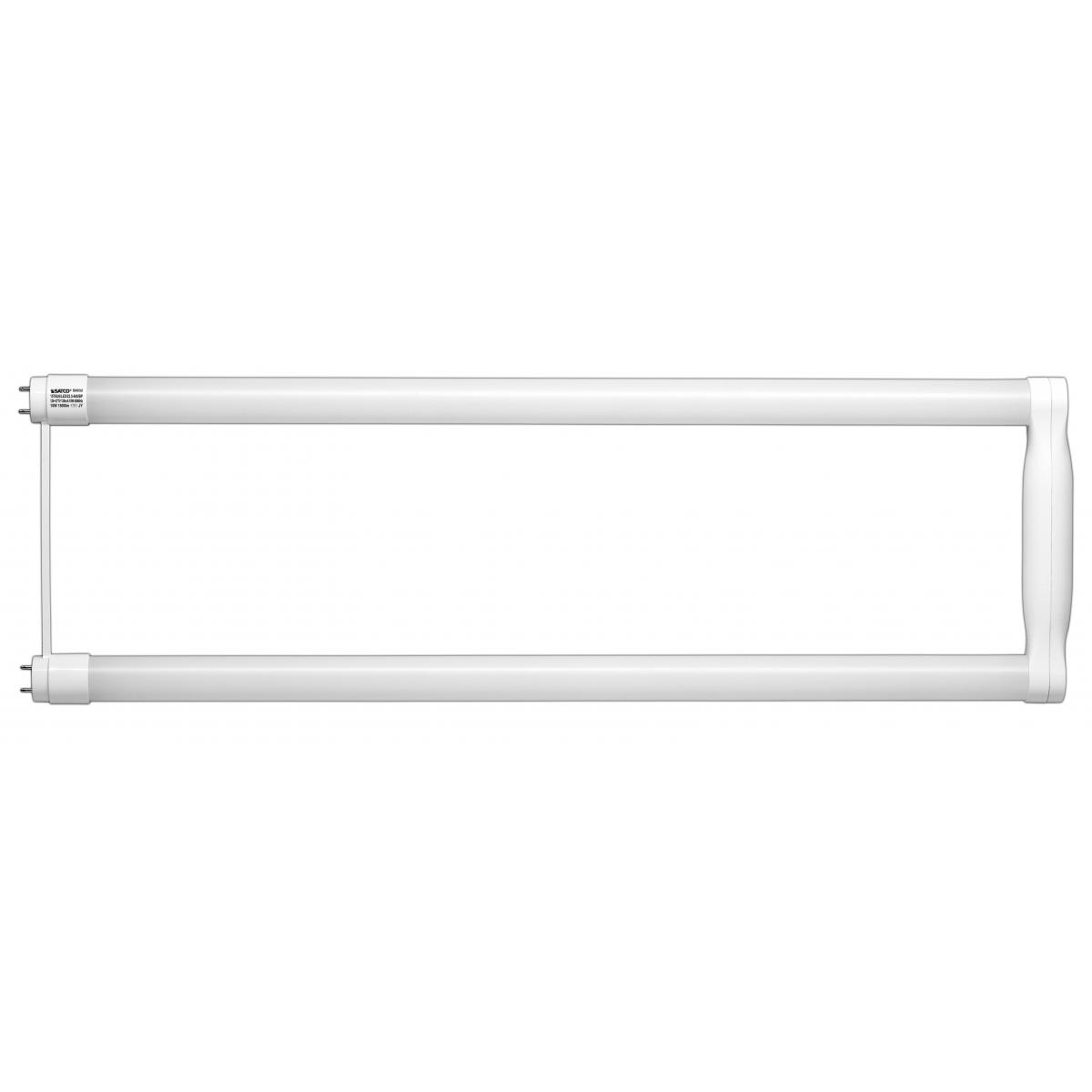

15 Watt T8 U-Bend LED; Medium bi-pin base; 4000K; 50000 Average rated hours; 1800 Lumens; Type B; Ballast Bypass; Single Ended Wiring

S9932 15T8U6/LED/22.5-840/BP

S9932

15T8U6/LED/22.5-840/BP

15 Watt T8 U-Bend LED; Medium bi-pin base; 4000K; 50000 Average rated hours; 1800 Lumens; Type B; Ballast Bypass; Single Ended Wiring

Specifications

General
StatusActive
Watts15
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length22.5
FinishFrosted
CCT (Kelvin)4000
TemperatureCool White
CRI82
Lumens1800
Beam Spread220
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeU-Bend
TechnologyLED
Electrical
Watts15
Volts120V-277V
Ballasting RequirementsBallastBypass
Ballast TypeType B
Operating Frequency50/60 Hz
CCT (Kelvin)4000
TemperatureCool White
CRI82
Lumens1800
Beam Spread220
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL22.5
MOD1
Nominal Length22.5
Leg Spacing6
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrosted
Additional Information
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus Classified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPH3SCEZH
CEC StatusLawful for sale in California
RoHS CompliantYes
NSF ApprovedYes - Approved
Packaging
Each UPC045923099328
Each Quantity1
Each Length (in.)23.20
Each Width (in.)7.50
Each Height (in.)1.40
Each Weight (lb.)0.75
Each Cube (CuFt.)0.1367
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923099325
Case Quantity12
Case Length (in.)24.00
Case Width (in.)15.80
Case Height (in.)9.50
Case Weight (lb.)10.80
Case Cube (CuFt.)2.0215
