S9934

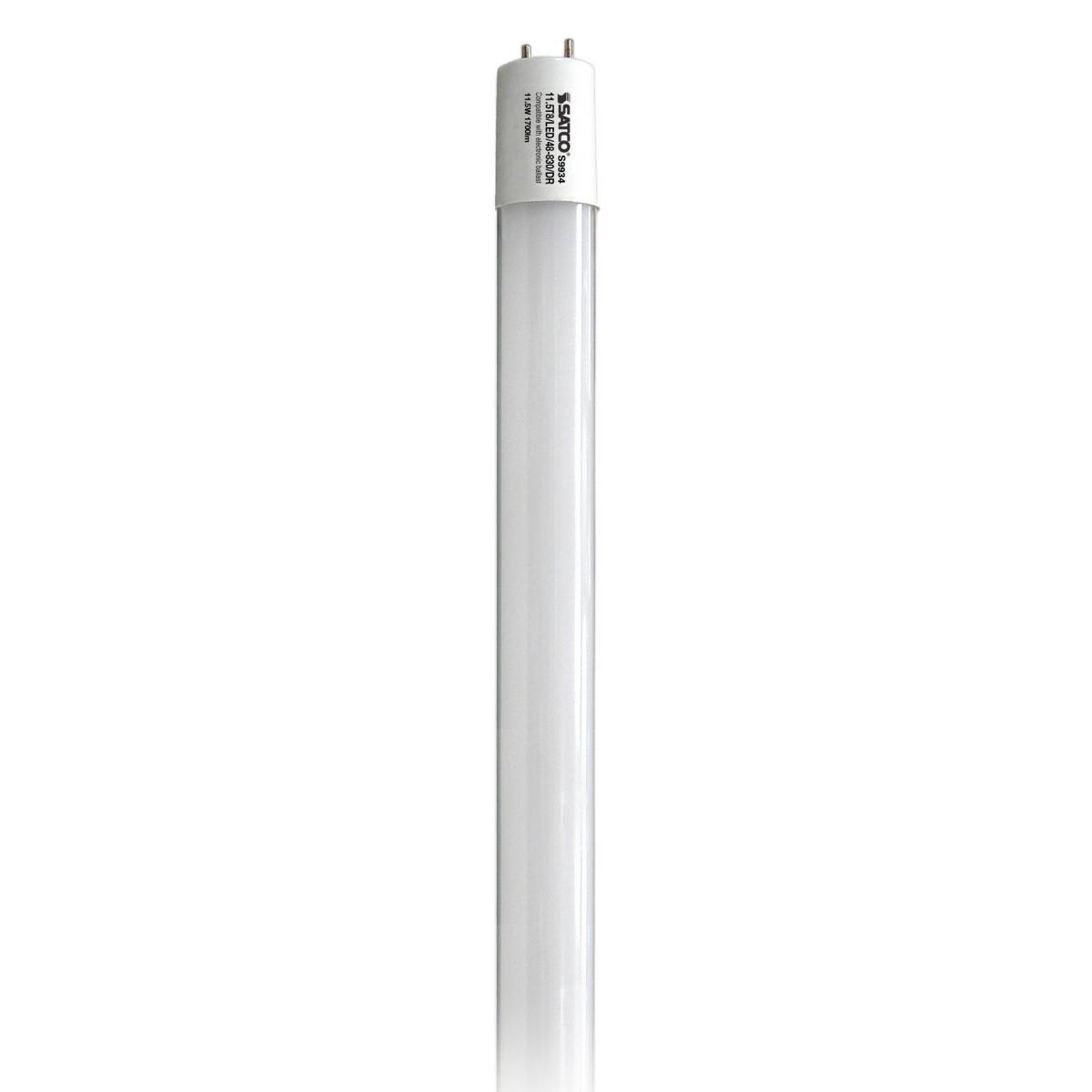

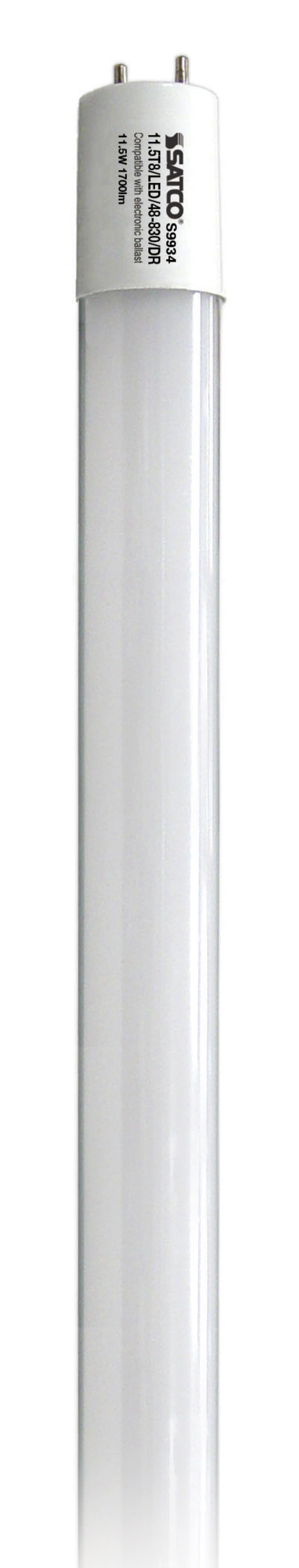

11.5T8/LED/48-830/DR

11.5 Watt T8 LED; Medium bi-pin base; 3000K; 50000 Average rated hours; 1700 Lumens

S9934 11.5T8/LED/48-830/DR

S9934

11.5T8/LED/48-830/DR

11.5 Watt T8 LED; Medium bi-pin base; 3000K; 50000 Average rated hours; 1700 Lumens

Specifications

General
StatusDiscontinued
SubstituteS9938
Watts11.5
Fluorescent Equivalent25-32
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishGloss White
CCT (Kelvin)3000
TemperatureWarm White
CRI82
Lumens1700
Beam Spread220
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts11.5
Fluorescent Equivalent25-32
CCT (Kelvin)3000
TemperatureWarm White
CRI82
Lumens1700
Beam Spread220
DimmableNon-Dimmable
Dimming TypeN/A
Power Factor0.95
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL48
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
Additional Information
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPEM9VRFS
CEC StatusLawful for sale in California
RoHS CompliantYes
NSF ApprovedYes - Approved
Packaging
Each UPC045923099342
Each Quantity1
Each Length (in.)48.43
Each Width (in.)1.18
Each Height (in.)1.18
Each Weight (lb.)1.98
Each Cube (CuFt.)0.0378
Pack TypeEgg Crate
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923099349
Case Quantity10
Case Length (in.)49.60
Case Width (in.)8.30
Case Height (in.)4.33
Case Weight (lb.)6.40
Case Cube (CuFt.)1.0003
×
×

Ballast Compatibility

Name Type View
Emergency Ballast IOTA LED T8 View
T8 LED Chart C LED T8 View
T8 LED Chart J LED T8 View
T8 LED Emergency Chart J LED T8 View
×

Precautions

No precautions available at this time.

×
