Lights

S9949

8T8/LED/24-850/DR

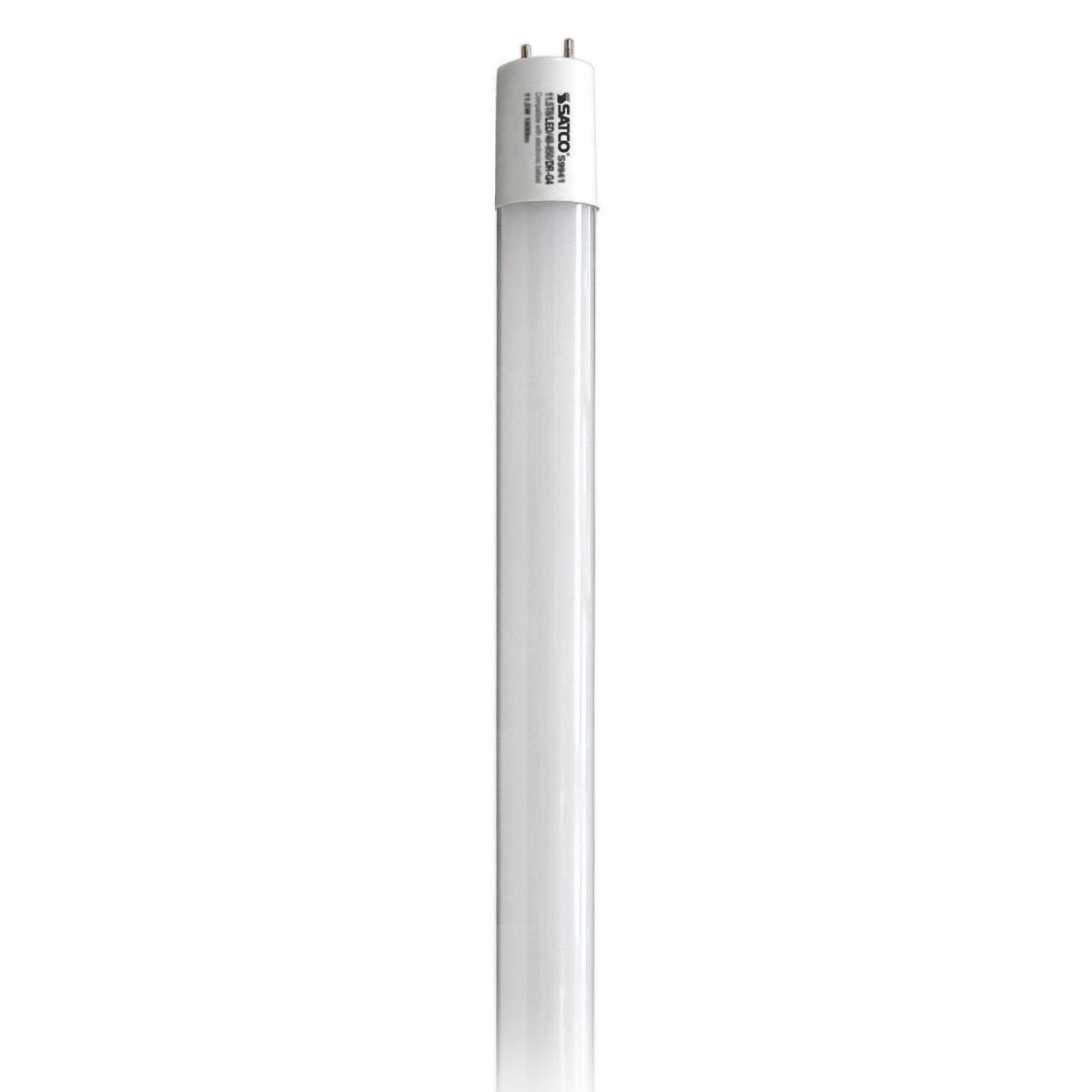

8 Watt T8 LED; 5000K; Medium Bi Pin base; 50000 Average rated hours; 1250 Lumens; Type A; Ballast dependent

S9949 8T8/LED/24-850/DR

S9949

8T8/LED/24-850/DR

8 Watt T8 LED; 5000K; Medium Bi Pin base; 50000 Average rated hours; 1250 Lumens; Type A; Ballast dependent

Specifications

General
StatusActive
Watts8
Fluorescent Equivalent17
Ballast TypeType A
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length24
FinishGloss White
CCT (Kelvin)5000
TemperatureNatural Light
CRI82
Lumens1250
Beam Spread220
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts8
Fluorescent Equivalent17
Ballasting RequirementsBallastrequired
Ballast TypeType A
CCT (Kelvin)5000
TemperatureNatural Light
CRI82
Lumens1250
Beam Spread220
DimmableNon-Dimmable
Power Factor0.96
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL24
MOD1
Nominal Length24
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
Additional Information
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDP2J3UYDD
CEC StatusLawful for sale in California
RoHS CompliantYes
NSF ApprovedYes - Approved
Packaging
Each UPC045923099496
Each Quantity1
Each Length (in.)23.80
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.28
Each Cube (CuFt.)0.0134
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923099493
Case Quantity10
Case Length (in.)24.40
Case Width (in.)6.30
Case Height (in.)3.00
Case Weight (lb.)3.40
Case Cube (CuFt.)0.2588
×
×

Ballast Compatibility

Name Type View
Emergency Ballast IOTA LED T8 View
T8 LED Chart C LED T8 View
T8 LED Chart H LED T8 View
T8 LED Emergency Chart H LED T8 View
×

Precautions

No precautions available at this time.

×
