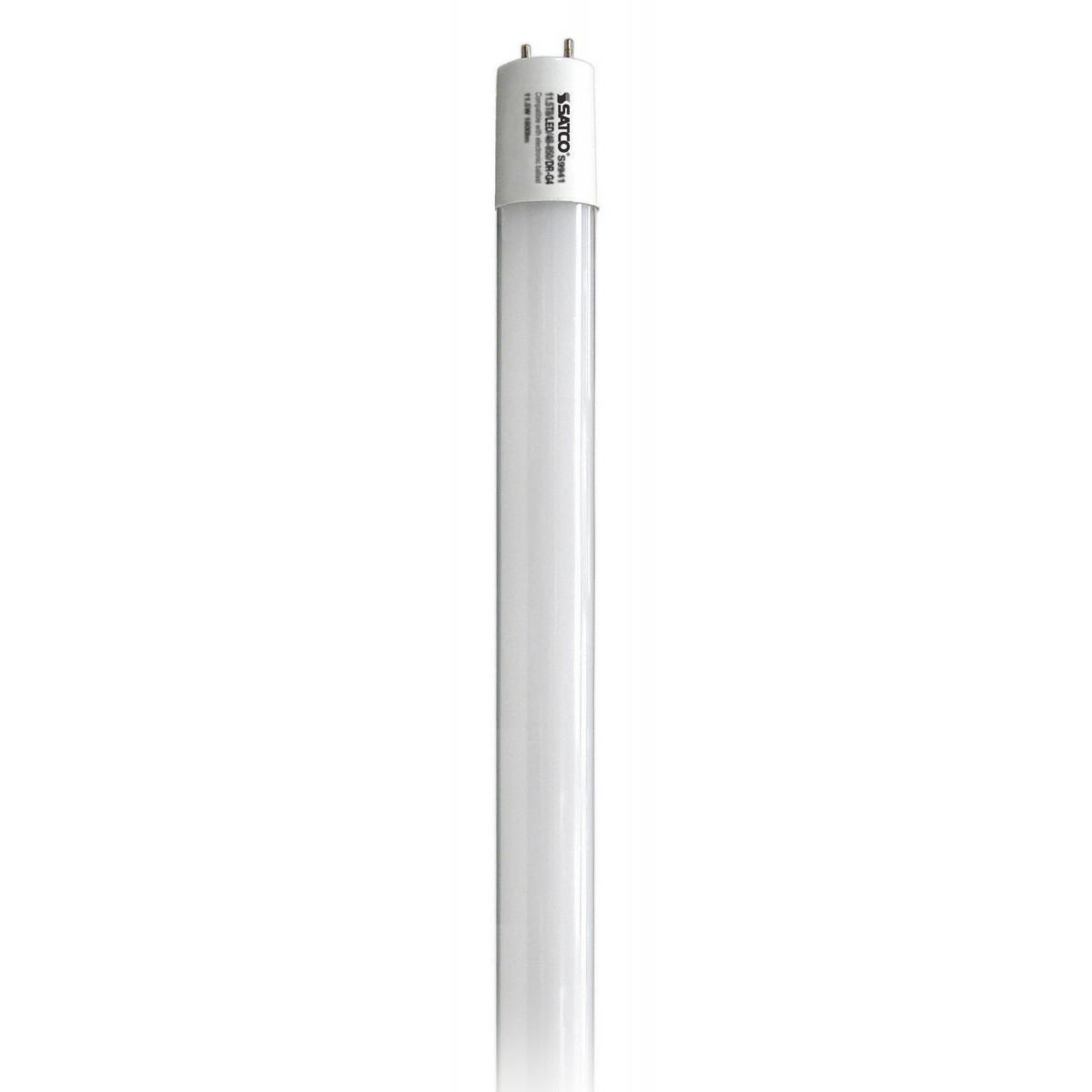

S9978

15T8/LED/48-850/DR

15 Watt T8 LED; 5000K; Medium Bi Pin base; 50000 Average rated hours; 2200 Lumens

S9978 15T8/LED/48-850/DR

S9978

15T8/LED/48-850/DR

15 Watt T8 LED; 5000K; Medium Bi Pin base; 50000 Average rated hours; 2200 Lumens

Specifications

General
StatusDiscontinued
Watts15
Fluorescent Equivalent25-32
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishGloss White
CCT (Kelvin)5000
TemperatureNatural Light
CRI82
Lumens2200
Beam Spread220
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts15
Fluorescent Equivalent25-32
CCT (Kelvin)5000
TemperatureNatural Light
CRI82
Lumens2200
Beam Spread220
DimmableNon-Dimmable
Dimming TypeN/A
Power Factor0.97
Hours Rated50000
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL48
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
Additional Information
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPUK747TQ
CEC StatusLawful for sale in California
RoHS CompliantYes
NSF ApprovedYes - Approved
Packaging
Each UPC045923099786
Each Quantity1
Each Length (in.)47.70
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.51
Each Cube (CuFt.)0.0268
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923099783
Case Quantity10
Case Length (in.)48.40
Case Width (in.)6.30
Case Height (in.)3.00
Case Weight (lb.)6.10
Case Cube (CuFt.)0.5133
×
×

Ballast Compatibility

Name Type View
Emergency Ballast IOTA LED T8 View
T8 LED Chart C LED T8 View
T8 LED Chart K LED T8 View
T8 LED Emergency Chart K LED T8 View
×
