65-660

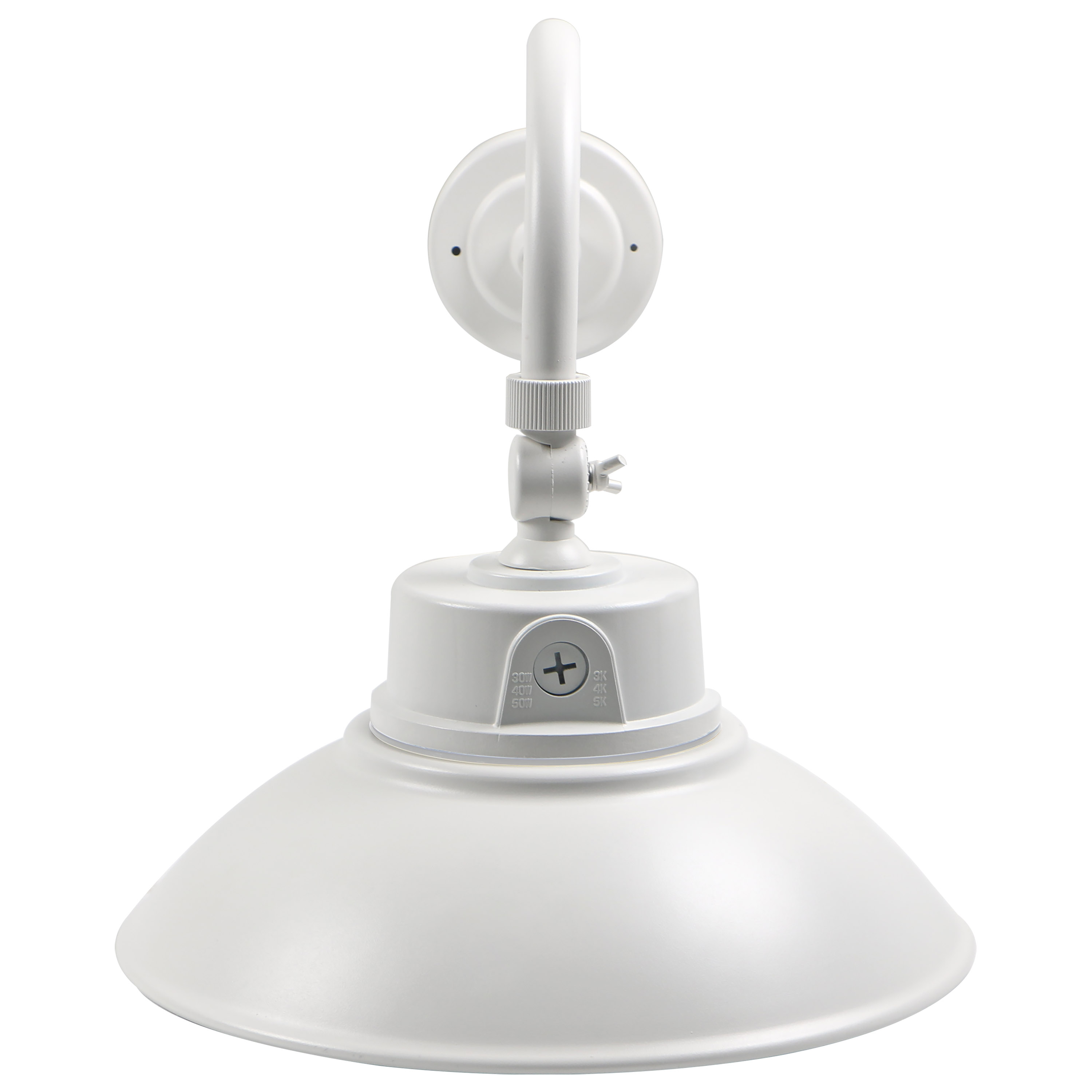

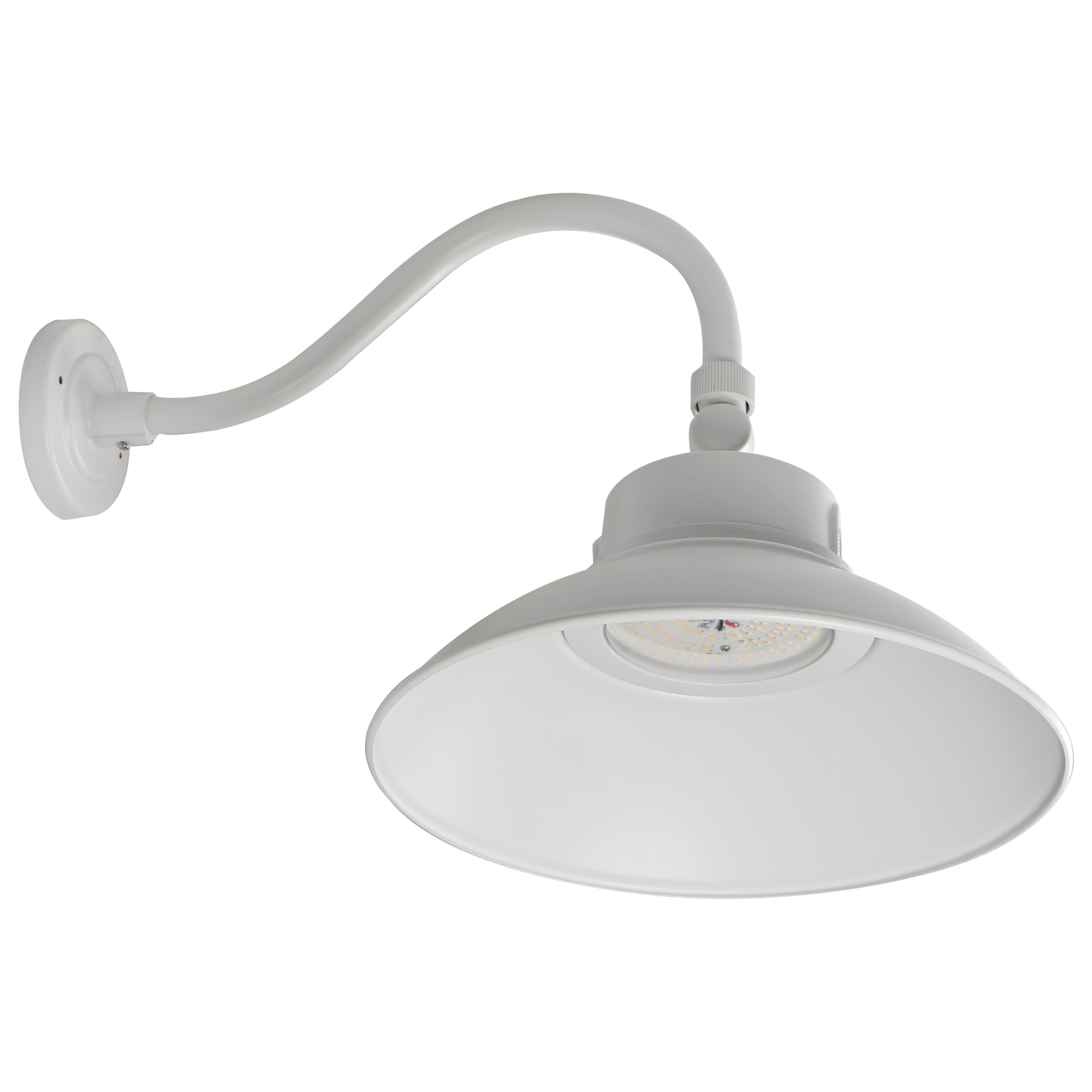

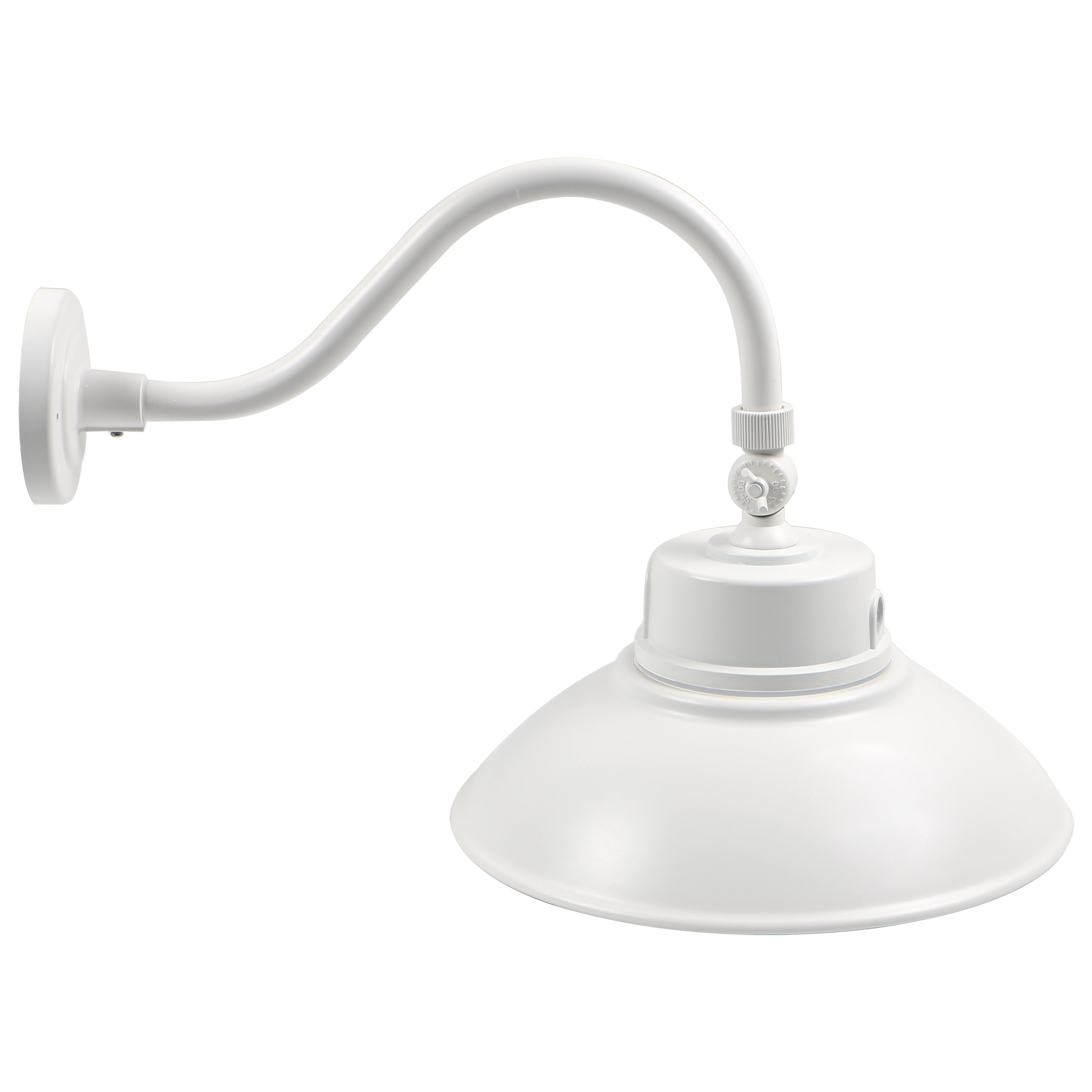

LED GOOSENECK WHITE FINISH

  • LED Gooseneck
  • 30W/40W/50W

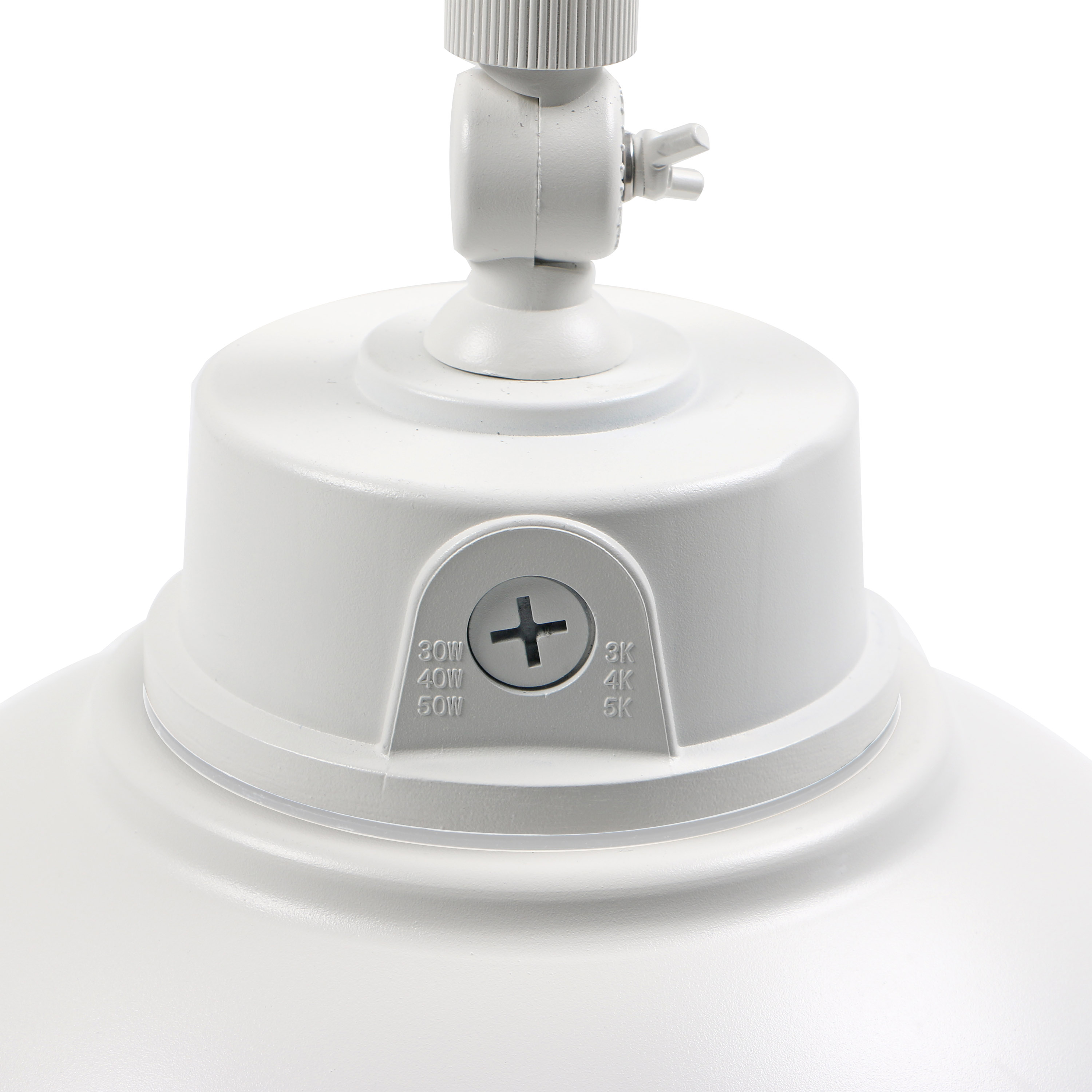

  • CCT Selectable 3K/4K/5K
  • White
  • 120-277V
  • With Photocell
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^culus_list^3
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
65-660 Specifications65-660 InstructionsNU1600-2 LED Fixture Reference 8-30-24 Lo-Res
Tools
Lighting Layout Analysis For 65-660
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Gooseneck; 30W/40W/50W; CCT Selectable 3K/4K/5K; White; 120-277V; With Photocell
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated

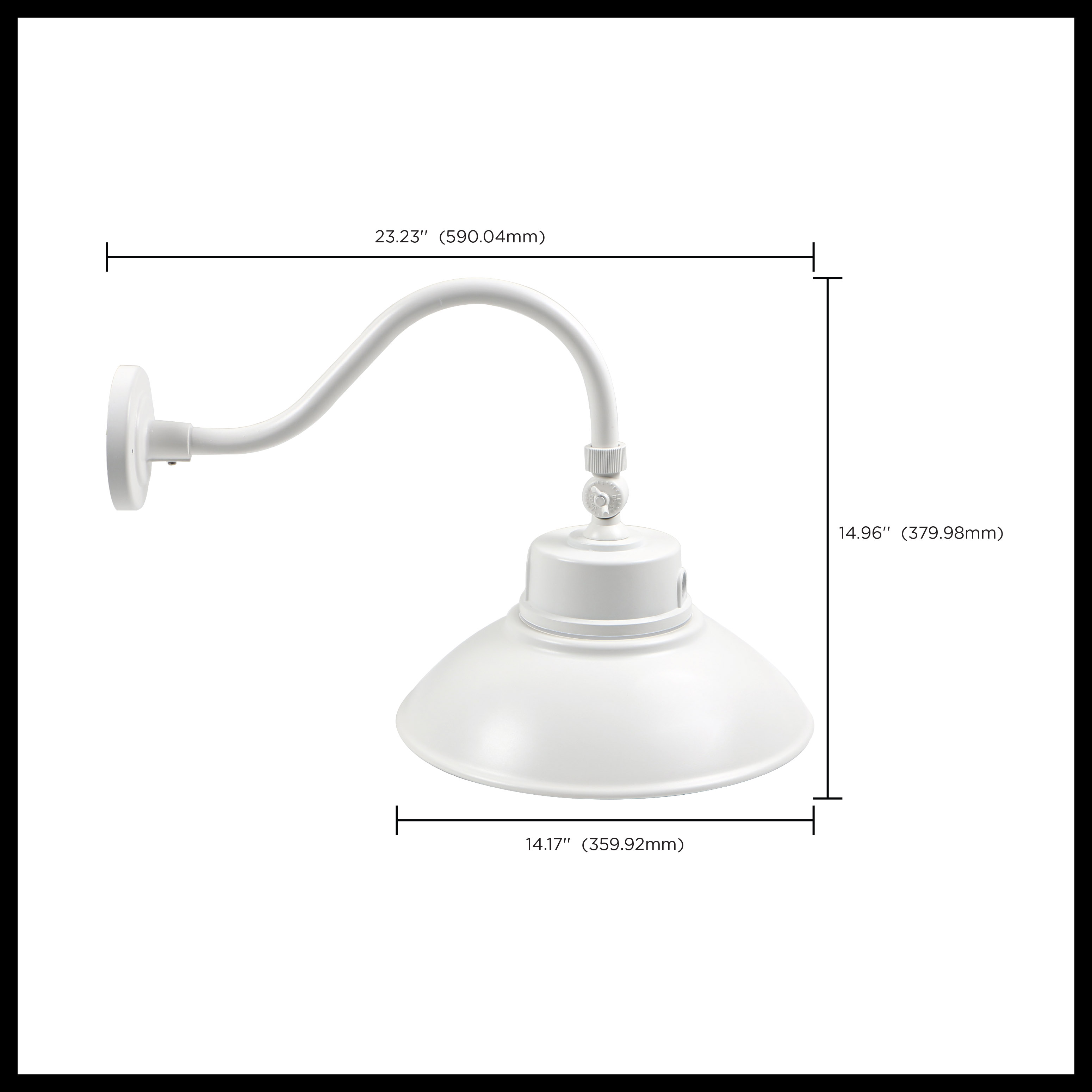

Diameter14.17
Dimmable Text0-10V Dimming
Extends (in)23.23
MaterialDie-cast Aluminum
Fixture TypeGooseneck
Includes16 Inch Mounting Arm
StatusActive
StyleTraditional
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion5.20%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyWhite
Additional InfoUV Powder Coated Finish
Amps0.250-0.108/0.333-0.144/0.417-0.181A
Mounting Diameter4.65
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
Lens MaterialPolycarbonate (PC)

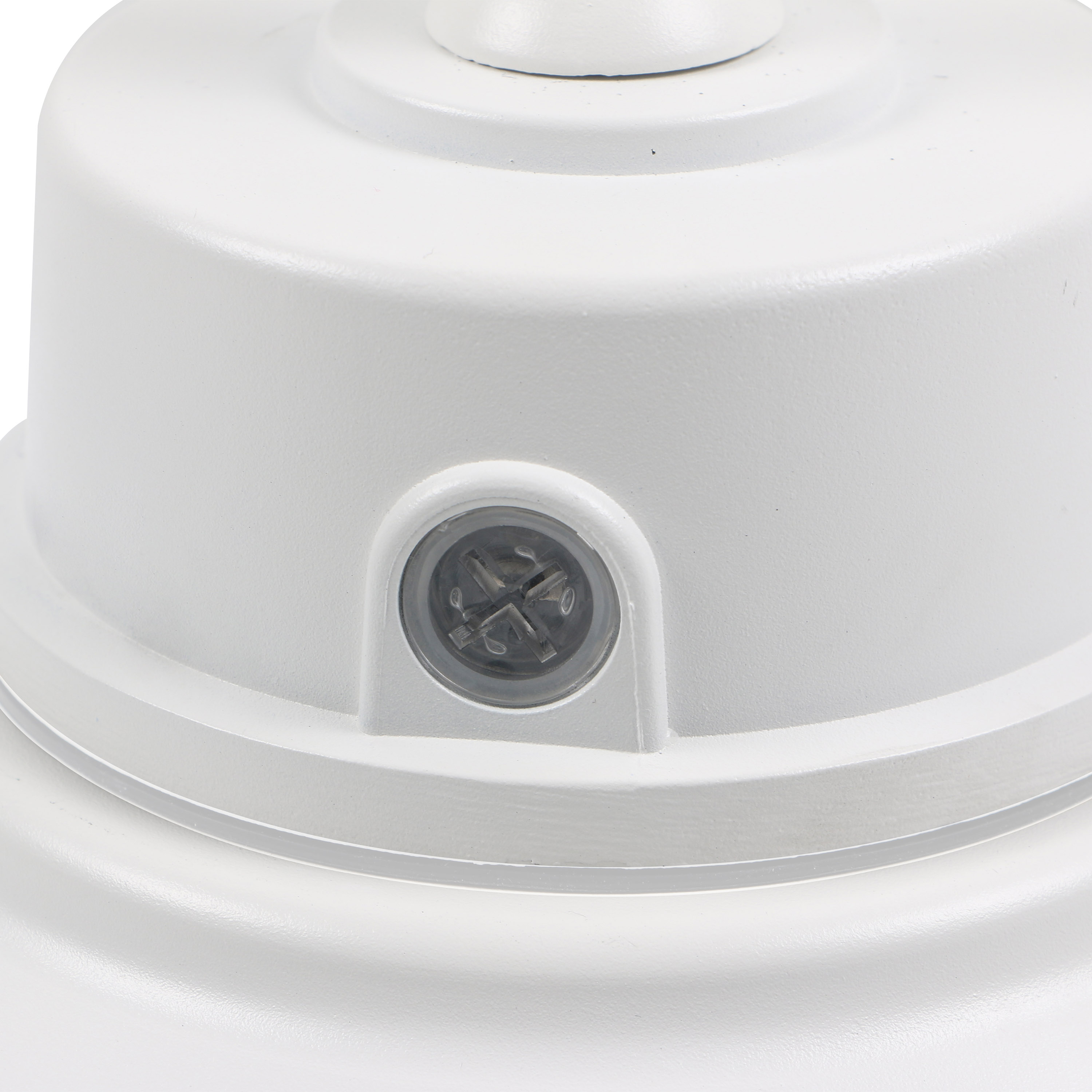

Photo CellHas Photocell
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent250W/300W/400W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)100
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +50C (+122F)
Lumens3300L-5500L
Volts120V-277V
Watts30W/40W/50W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Compliance
ADA CompliantFalse
Bug RatingB2-U2-G0
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-85IVYA
FCC CompliantTrue
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcETLus - Listed, cULus - Certified, cULus - Listed
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923656606
Case Cube1.9018
Case Height10.04
Case Length20.28
Case Quantity1
Case UPC10045923656603
Case Weight5.1
Case Width16.14
EA Cube1.9018
EA Height10.04
EA Length20.28
EA Quantity1
EA Weight5.1
EA Width16.14
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height14.96
Web Width14.17
