| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Diameter | 11.81 |
| Dimmable Text | 0-10V Dimming Only |
| Material | Die-cast Aluminum |

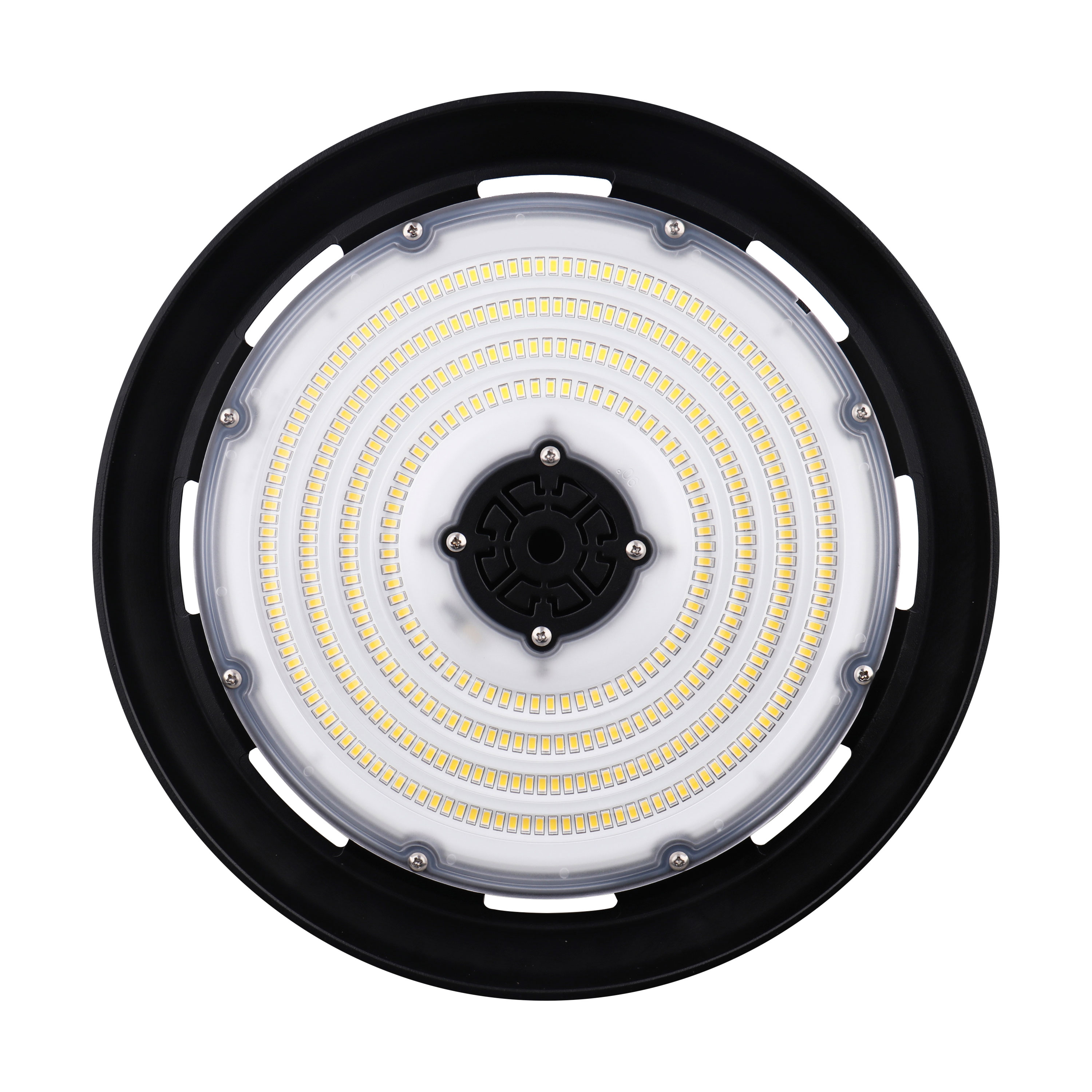

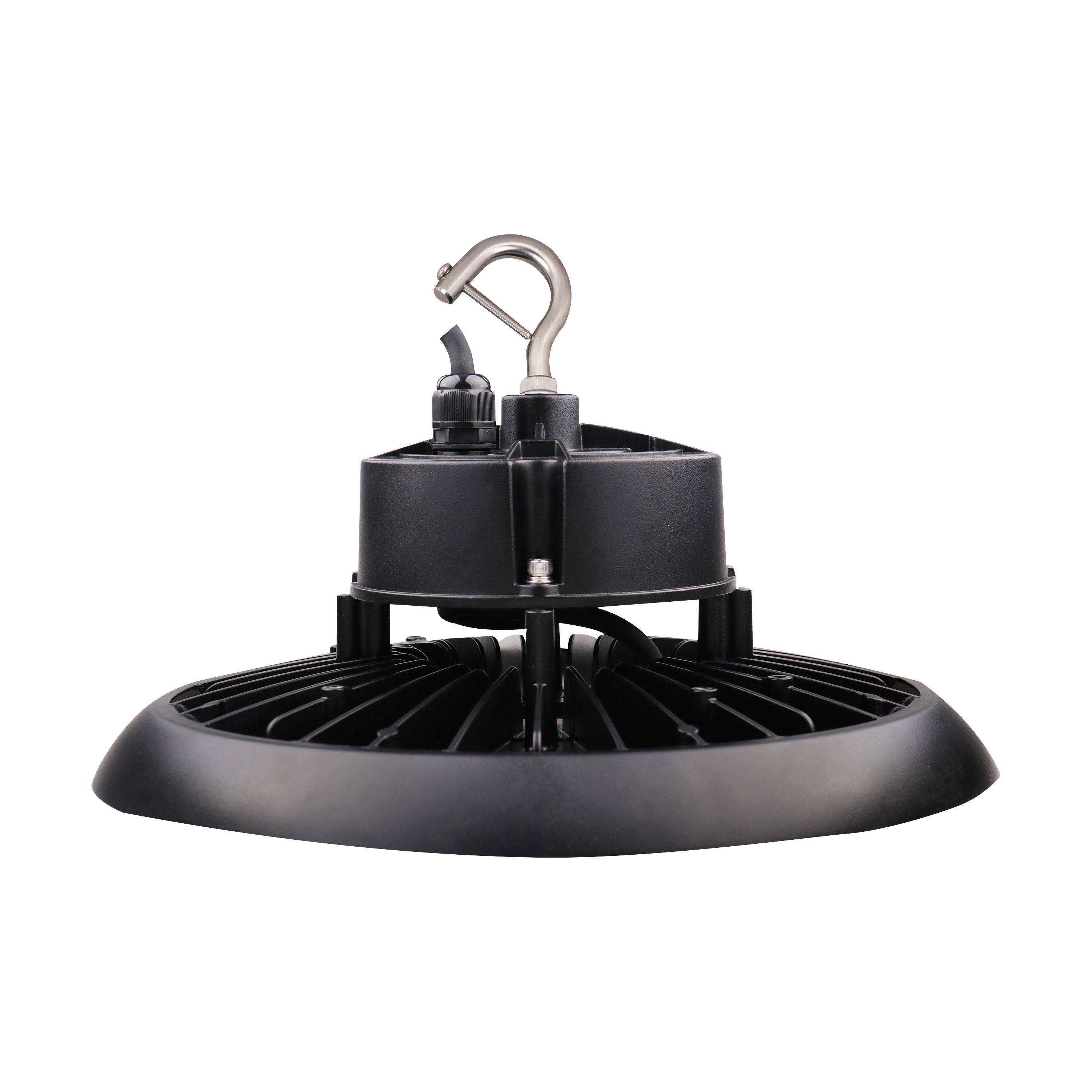

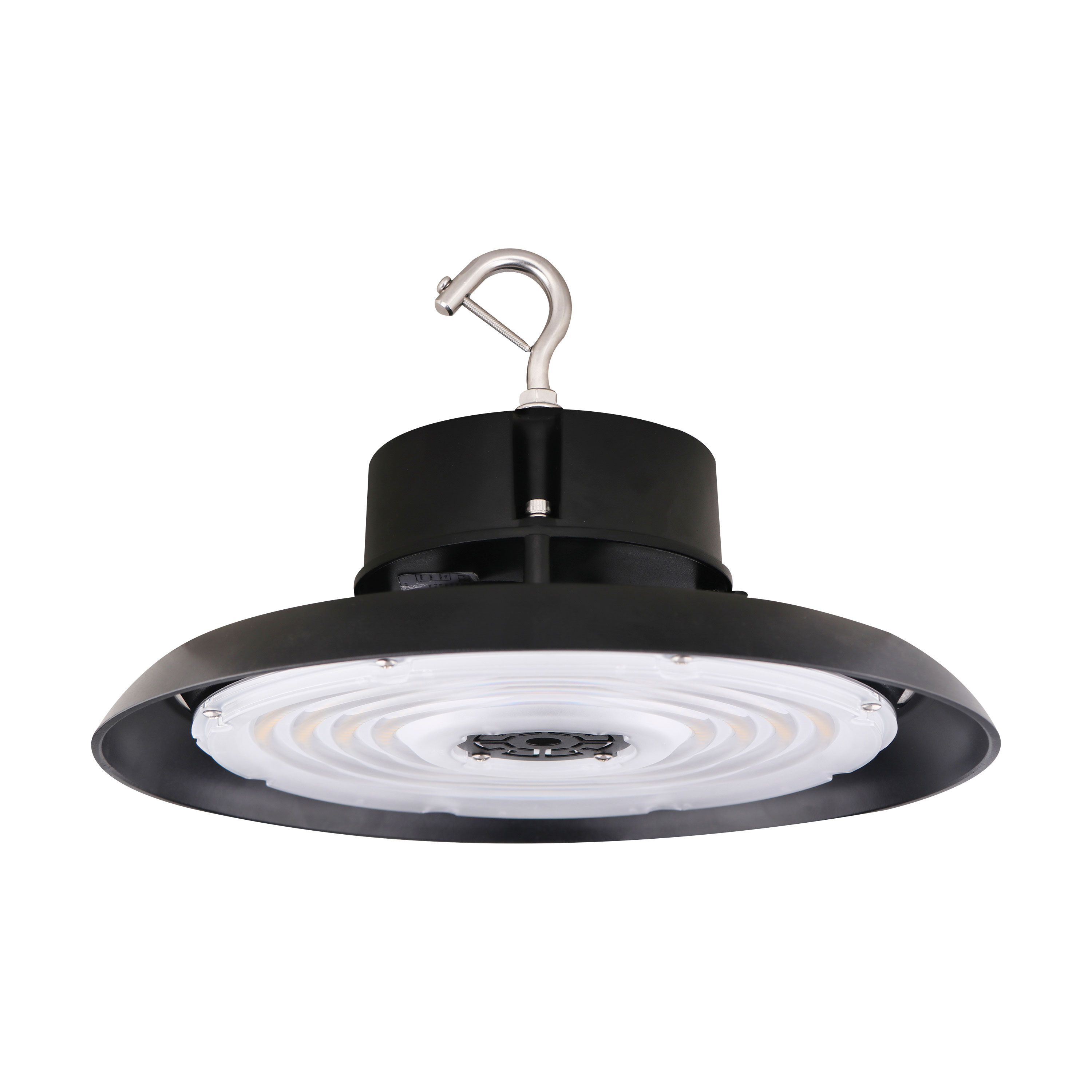

| Fixture Type | UFO Hi-Bay |
| Status | Discontinued |
| Style | Utility |
| Most Current Generation | 65-803R2 |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | 15% |
| Wire Length | 72.0 |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | Black |
| Amps | 0.542-0.313A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| SDS Class | LED_Fixture |
| Sloped Ceiling Compatible | No |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 1000W |
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 90 |
| Color Temp | Cool White |
| CRI | 80+ |
| Operating Temp | -40C (-40F) to +45C (+113F) |
| HID Equivalent | 400W |

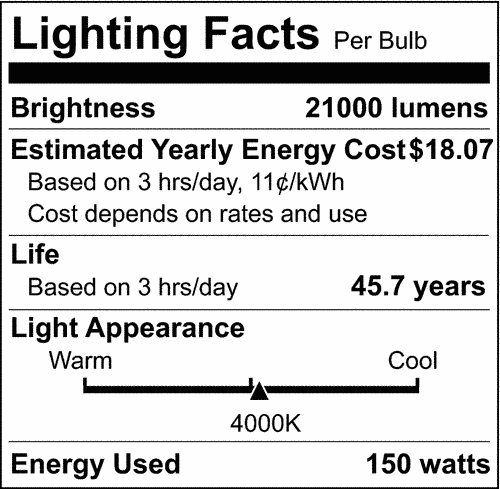

| Lumens | 21000L |
| Volts | 277V-480V |
| Watts | 150W |
| Lamp Base | Integrated |
|---|---|
| Finish | BLACK |
| Housing Color | Black |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
|---|---|
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| DLC ID | PLDPESZL2L1G |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923665875 |
|---|---|
| Case Cube | 0.8924 |
| Case Height | 7.68 |
| Case Length | 14.17 |
| Case Quantity | 1 |
| Case UPC | 10045923665872 |
| Case Weight | 6.83 |
| Case Width | 14.17 |
| EA Cube | 0.8924 |
| EA Height | 7.68 |
| EA Length | 14.17 |
| EA Quantity | 1 |
| EA Weight | 6.83 |
| EA Width | 14.17 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Height | 7.99 |
| Web Width | 11.81 |
