| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Candle Power | 5000.0 |
| Dimmable Text | Dimmable only via the built-in dimmer on the lamp. Not dimmable via wall switch |
| Lamp Filament | LED |
| Material | Aluminum |
| Fixture Type | Hi-Bay |
| Product Notes | Fixture has a built-in dimming control feature |
| Status | Discontinued |
| Style | Contemporary |
| Most Current Generation | S33114 |
| Surge Protection | Built-in surge protection - 6KV |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 1.083-0.469A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Material | Plastic |
| Lensed | True |
| Minimum Compartment Size | Length: 16.5 in. Width: 16.5 in. Height: 13 in. |
| Operating Position | Universal |
| Power Factor | 0.99/0.95 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 250W |
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 35000 |
| Beam Angle (degree) | 115 |
| Color Temp | Cool White |
| CRI | 80+ |
| Dimming Type | Step Dimming |
| Operating Frequency | 50-60Hz |
| Operating Temp | -40C (-40F) to +60C (+140F) |
| HID Equivalent | 400W |

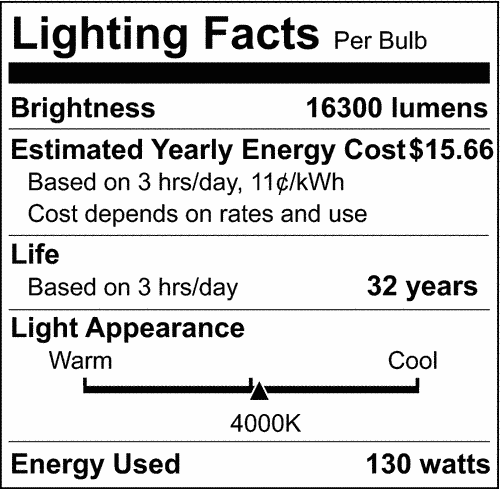

| Lumens | 16300L |
| Volts | 120V-277V |
| Watts | 130W |
| Lamp Base | Mogul Extended |
|---|---|
| Finish | Translucent White |
| Housing Color | White |
| ANSI Base | EX39 |
| Lamp Type | HB77 |
| MOD Lamps | 9.65 |
| MOL | 12.4 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923231148 |
|---|---|
| Case Cube | 3.2815 |
| Case Height | 13.98 |
| Case Length | 20.2 |
| Case Quantity | 4 |
| Case UPC | 10045923231145 |
| Case Weight | 16.98 |
| Case Width | 20.08 |
| EA Cube | 0.6855 |
| EA Height | 12.72 |
| EA Length | 9.65 |
| EA Quantity | 1 |
| EA Weight | 3.71 |
| EA Width | 9.65 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Length | 12.4 |
| Web Width | 9.65 |
