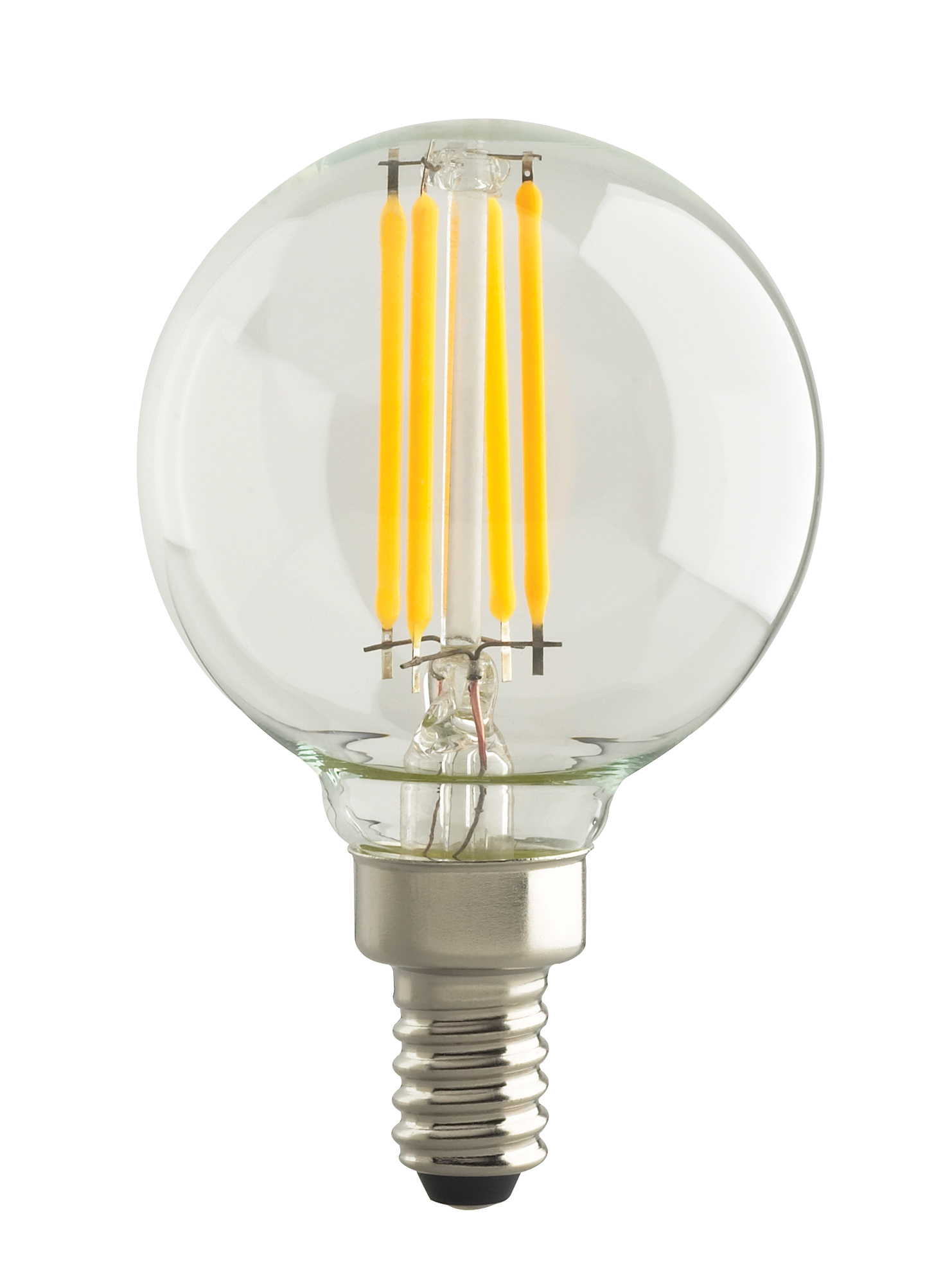

S29871

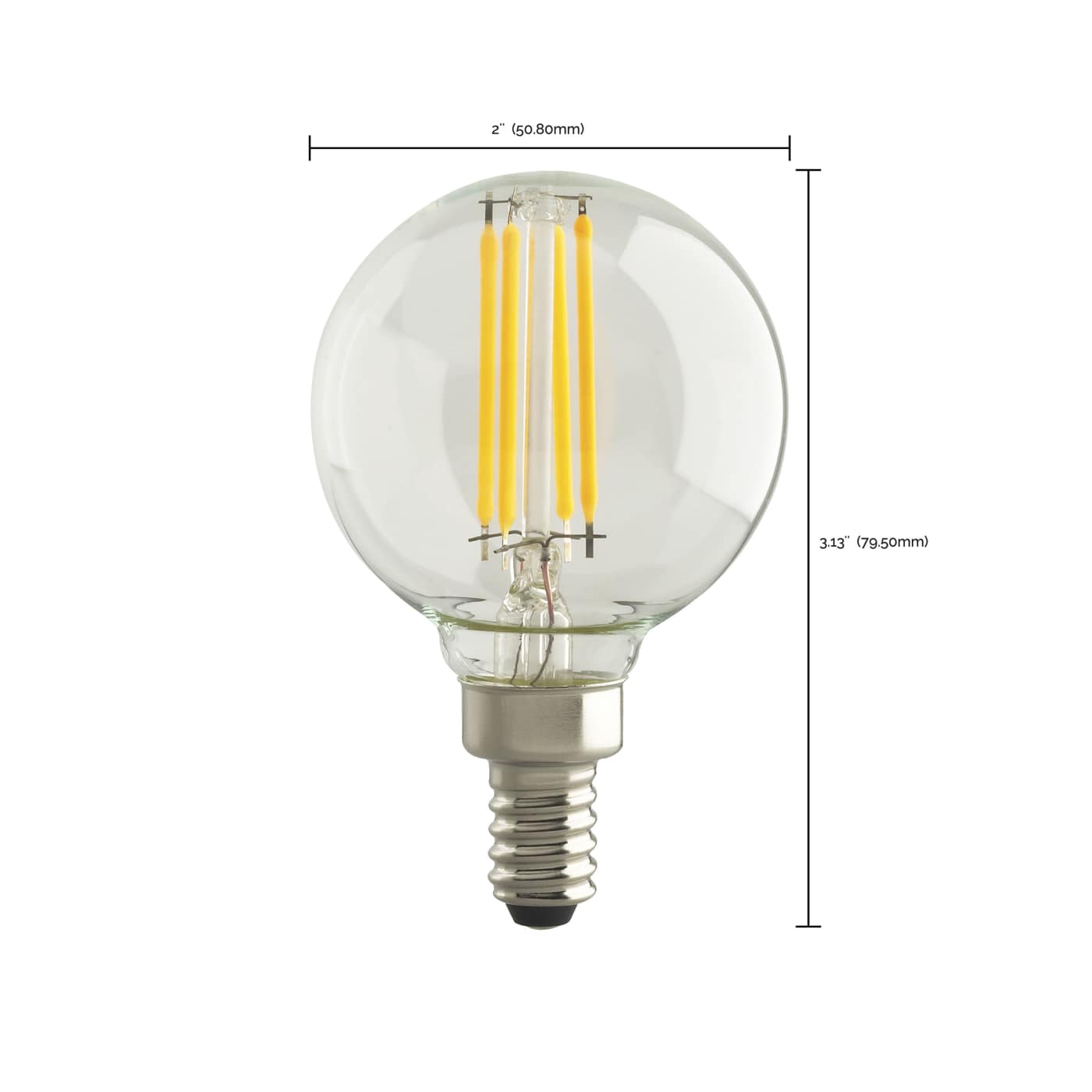

4G16.5/LED/CL/27K/120V/E12

Discontinued - Suggested Replacement: S21204
  • 4 Watt G16 1/2 LED Filament
  • Clear
  • Candelabra base
  • 2700K
  • 350 Lumens
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S29871 SpecificationsLED LAMPS & DOWNLIGHT RETROFITSS29871 Photometrics.ies
Tools
Lighting Layout Analysis For S29871
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4 Watt G16 1/2 LED Filament; Clear; Candelabra base; 2700K; 350 Lumens; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED Filament
MaterialPCB with Aluminum cap
Fixture TypeGlobe
StatusDiscontinued
Most Current GenerationS21204
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.033A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Dimming TypeReverse Phase
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens350L
Volts120v
Watts4W

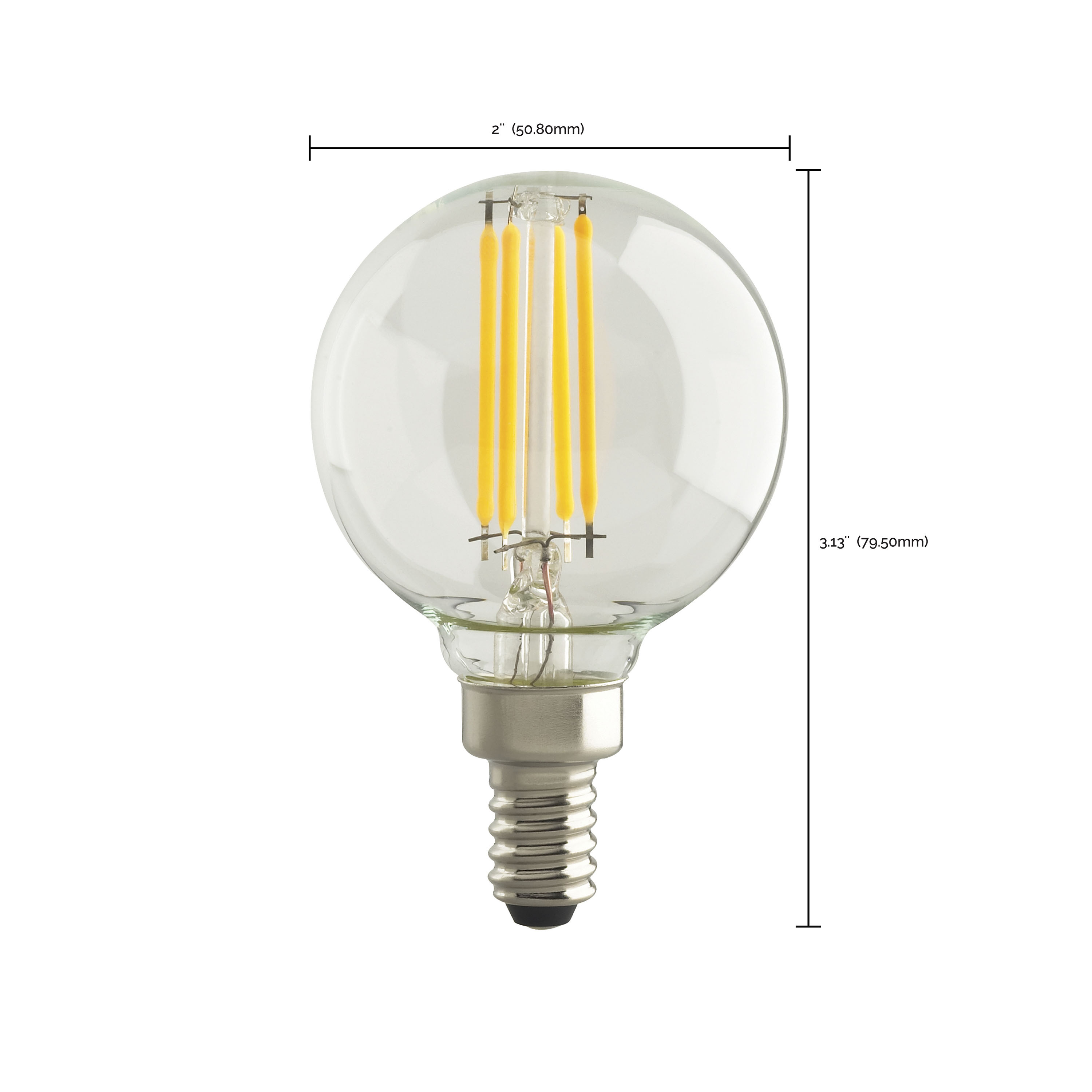

Physical
Lamp BaseCandelabra
FinishClear
ANSI BaseE12
Lamp TypeG16.5
MOD Lamps2.0
MOL3.13
Additional Info
Warranty2-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - <82 CRI
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923298714
Case Cube0.4345
Case Height5.31
Case Length14.37
Case Quantity24
Case UPC10045923298711
Case Weight2.76
Case Width9.84
EA Cube0.0102
EA Height3.74
EA Length2.17
EA Quantity1
EA Weight0.07
EA Width2.17
Inner Cube0.157
Inner Height4.13
Inner Length14.37
Inner Quantity6
Inner UPC20045923298718
Inner Weight0.55
Inner Width4.57
Pack TypeBox
Web Length3.13
Web Width2.0
