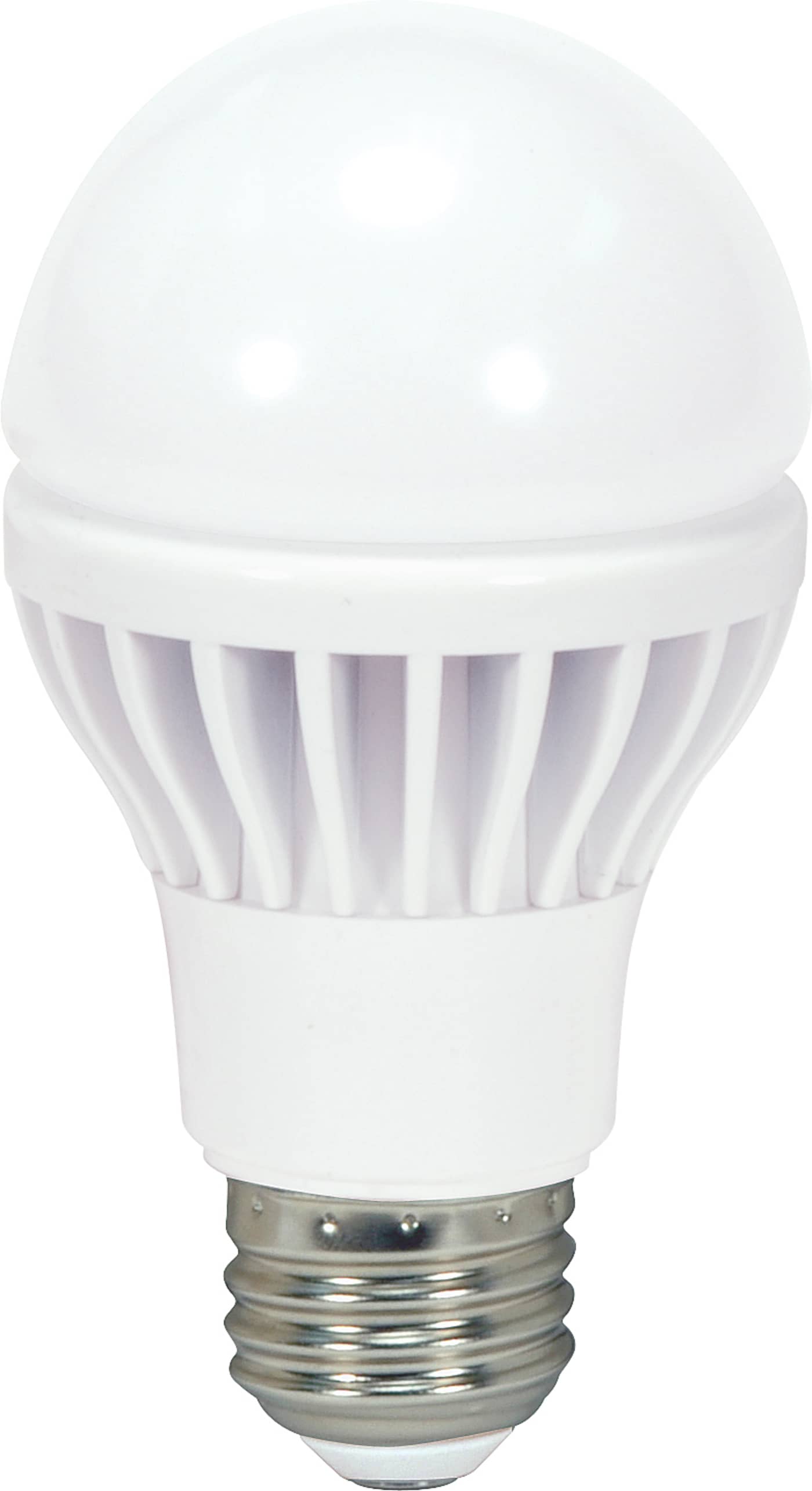

8A19/LED/5000K/120V/550L 2.0 - S8798
S8798

8A19/LED/5000K/120V/550L 2.0

Discontinued - Suggested Replacement: S29839
  • Discontinued - 8 watt
  • A19
  • 5000K
  • 150' beam spread
  • Medium base
  • 120 volts
hours_rated^25k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3

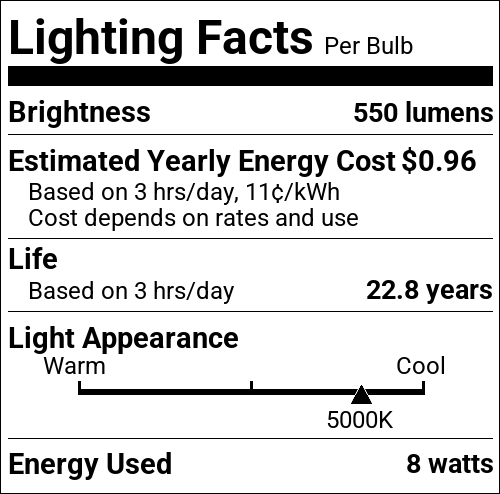

S8798 SpecificationsS8798 Lighting Facts Label
Description
Description
Discontinued - 8 watt; A19; 5000K; 150' beam spread; Medium base; 120 volts
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeType A
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.067A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated25000
Beam Angle (degree)150
Color TempNatural Light
CRI85+
Operating Temp-20C (-4F) to +45C (+113F)
Lumens550L
Volts120v
Watts8W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA19
MOD Lamps2.38
MOL4.75
Additional Info
Warranty5-Years
Documents
Compliance
FCC CompliantYes
ROHS CompliantYes
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
Packaging
UPC045923087981
Case Cube0.8343
Case Height12.2
Case Length12.4
Case Quantity24
Case UPC10045923087988
Case Weight11.79
Case Width9.53
EA Cube0.0217
EA Height4.92
EA Length2.76
EA Quantity1
EA Weight0.4
EA Width2.76
Inner Cube0.1608
Inner Height5.43
Inner Length8.66
Inner Quantity6
Inner UPC20045923087985
Inner Weight6.78
Inner Width5.91
Pack TypeBox
Web Length4.75
Web Width2.38
