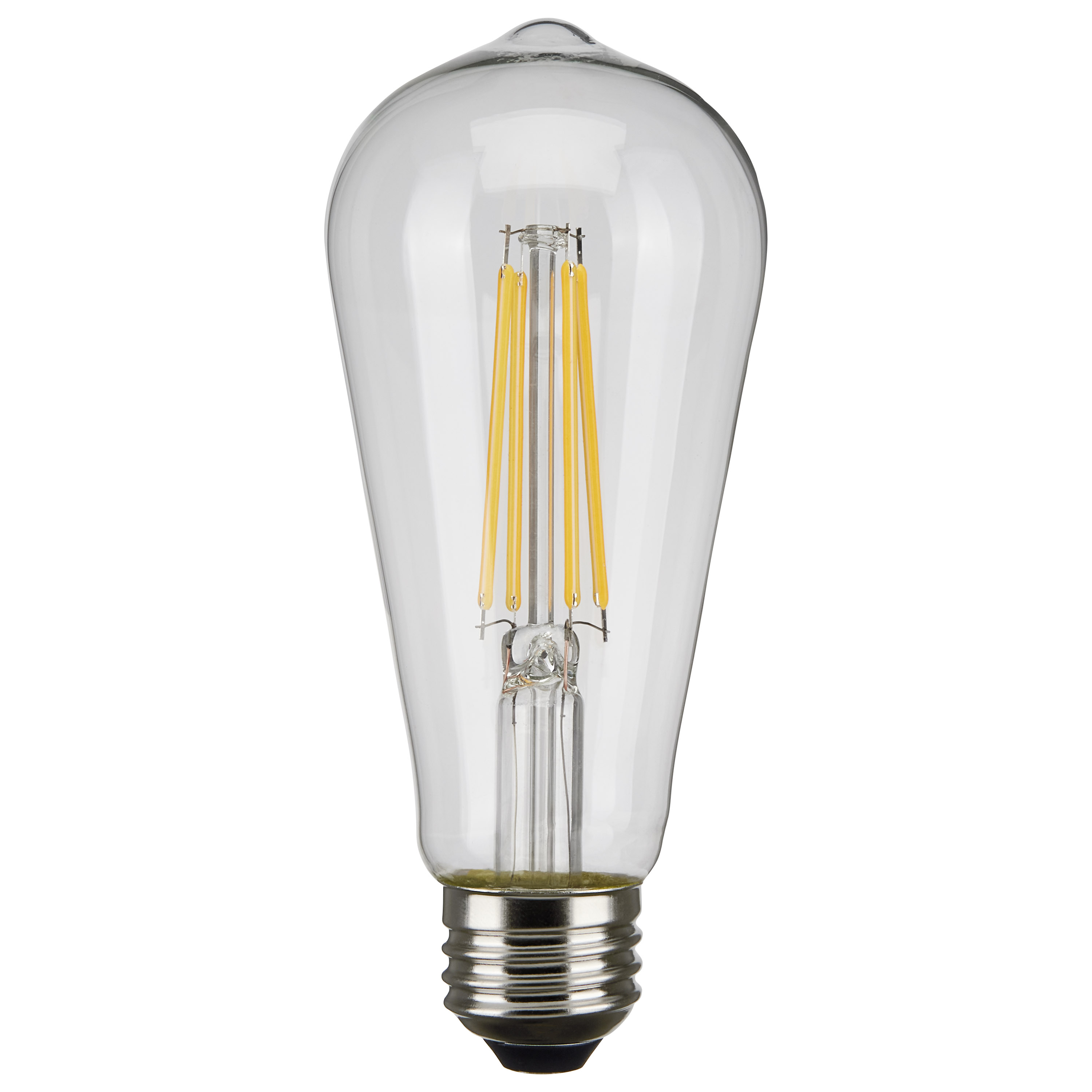

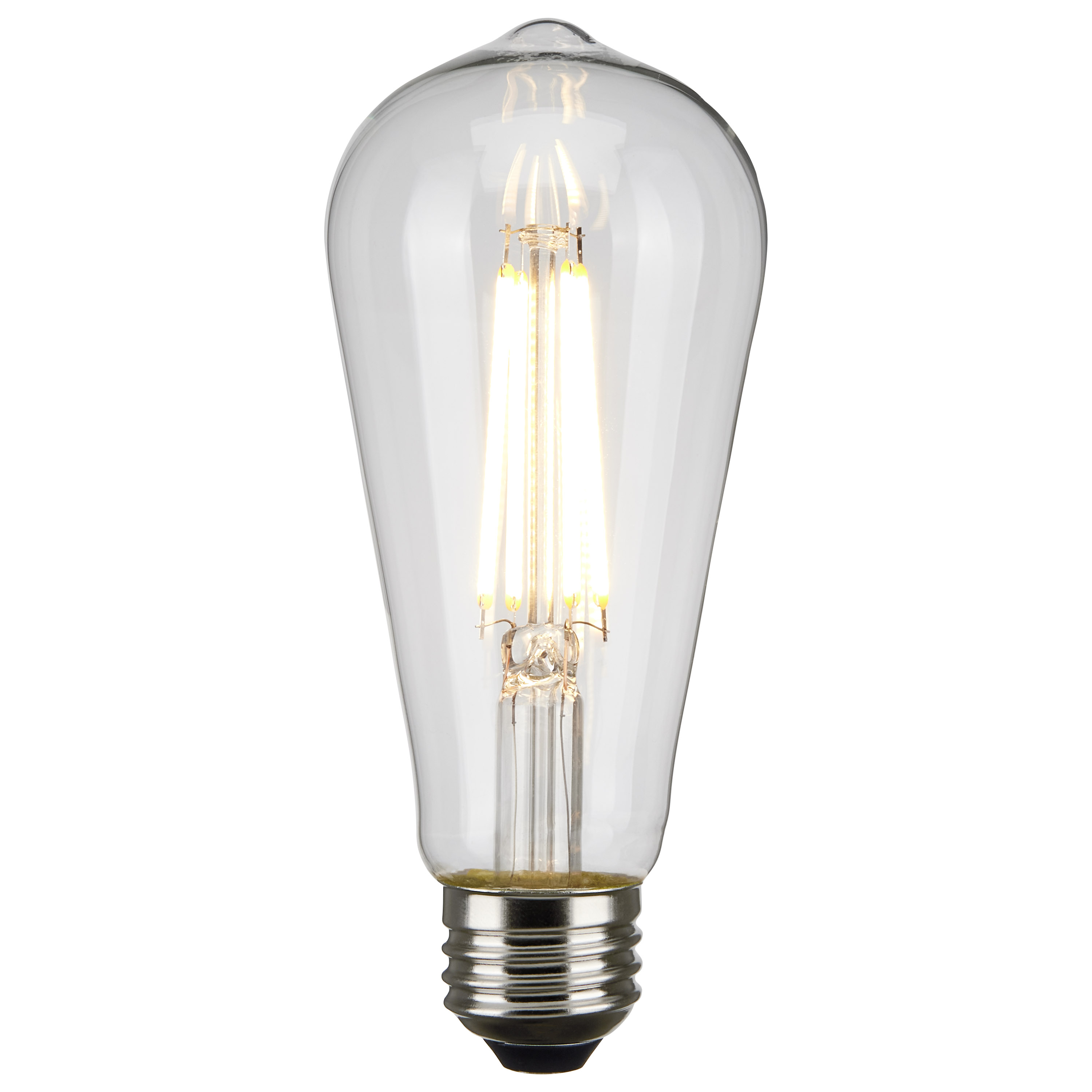

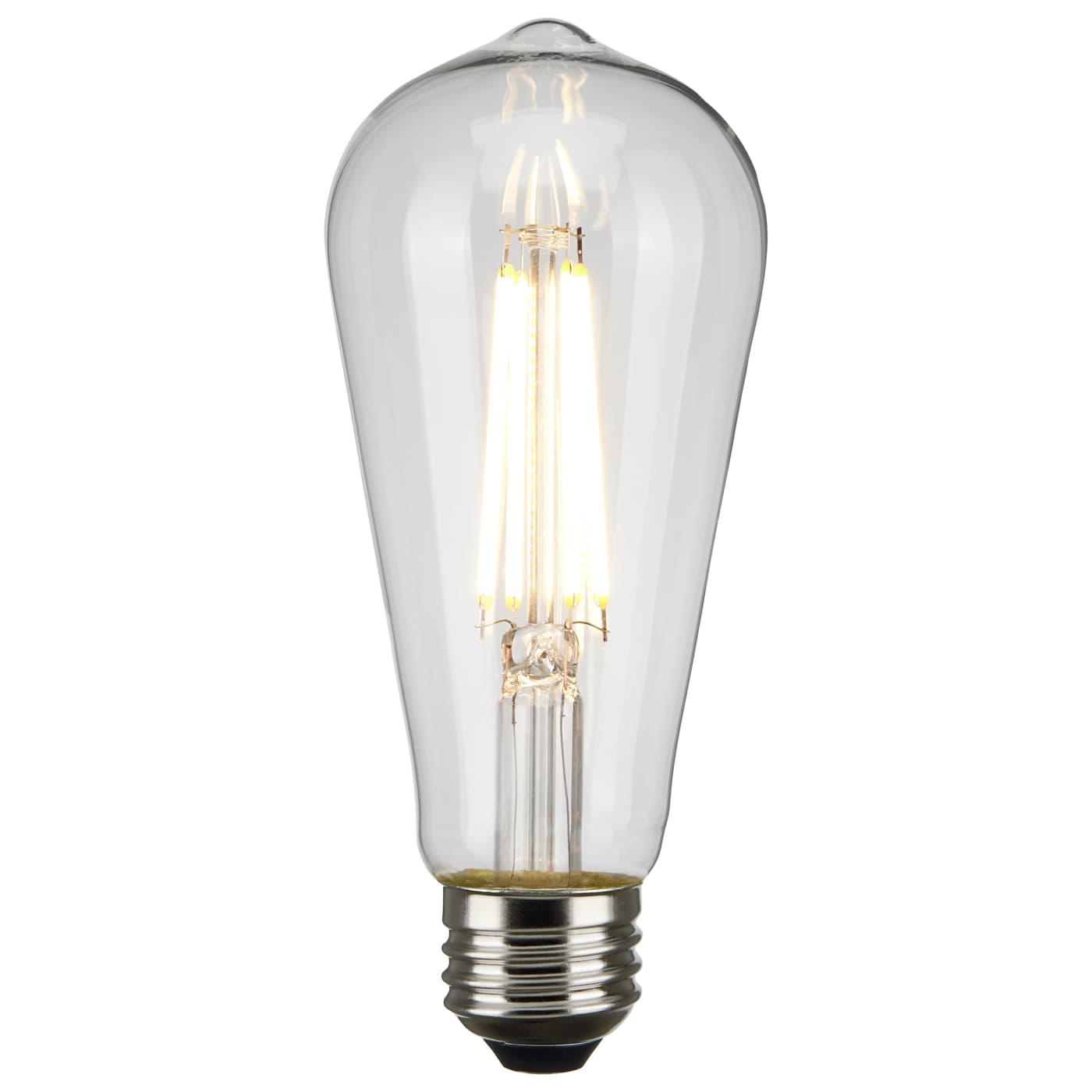

7ST19/CL/LED/E26/40K/120V - S8851
7ST19/CL/LED/E26/40K/120V - S8851
S8851

7ST19/CL/LED/E26/40K/120V

Discontinued - Suggested Replacement: S21362
  • 7 Watt ST19 LED Filament
  • Clear
  • Medium base
  • 4000K
  • 800 Lumens
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S8851 SpecificationsS8851 Photometrics.iesLED FILAMENT LAMPS JUNE 2022
Tools
Lighting Layout Analysis For S8851
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
7 Watt ST19 LED Filament; Clear; Medium base; 4000K; 800 Lumens; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED Filament
MaterialGlass / Metal
Fixture TypeST19
StatusDiscontinued
Most Current GenerationS21362
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.058A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempCool White
CRI80+
Dimming TypeReverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens800L
Volts120v
Watts7W
Physical
Lamp BaseMedium
FinishClear
ANSI BaseE26
Lamp TypeST19
MOD Lamps2.38
MOL5.5
Additional Info
Warranty2-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - <82 CRI
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923088513
Case Cube0.8138
Case Height8.07
Case Length15.87
Case Quantity24
Case UPC10045923088510
Case Weight4.81
Case Width10.98
EA Cube0.0197
EA Height6.1
EA Length2.36
EA Quantity1
EA Weight0.15
EA Width2.36
Inner Cube0.1543
Inner Height6.89
Inner Length7.56
Inner Quantity6
Inner UPC20045923088517
Inner Weight1.02
Inner Width5.12
Pack TypeBox
Web Length5.5
Web Width2.38
