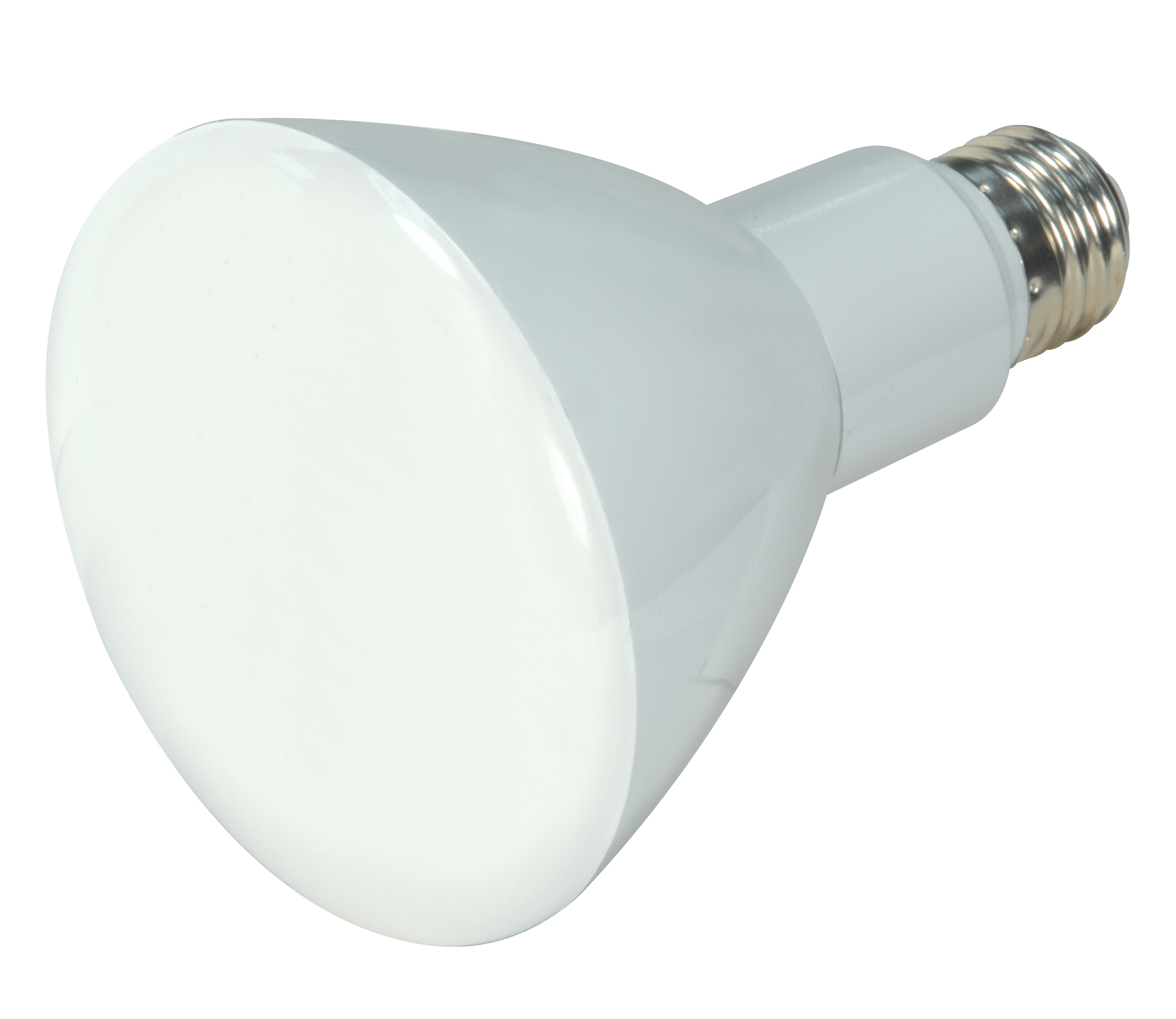

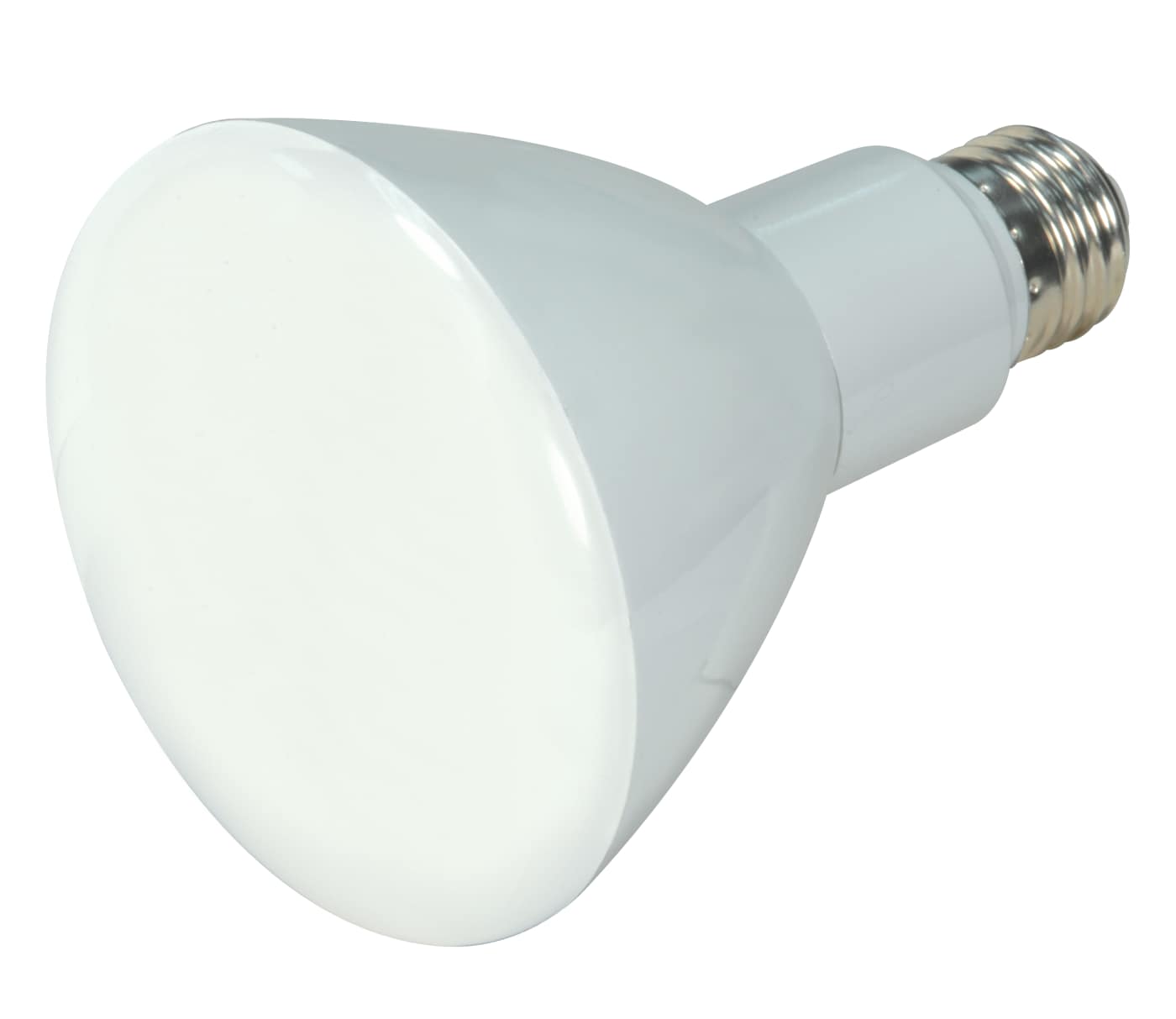

10BR30/LED/3000K/800L/120V/D - S9134
S9134

10BR30/LED/3000K/800L/120V/D

Discontinued - Suggested Replacement: S9621
  • Discontinued - 10 watt
  • BR30 LED
  • 108' beam spread
  • 3000K
  • Medium base
  • 120 volts
  • Dimmable
dimmable^dimmable^2
hours_rated^25k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3

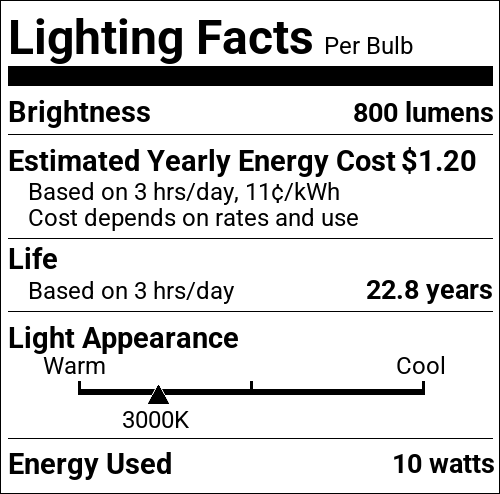

S9134 SpecificationsSatco 10W BR30 LED reflectors 80 CRIIntroducing the new and improved Satco BR30 DittoS9134 Lighting Facts Label
Description
Description
Discontinued - 10 watt; BR30 LED; 108' beam spread; 3000K; Medium base; 120 volts; Dimmable
Products Specs
General
CompanySATCO
Dimmable TextForward Phase
Lamp FilamentLED
Fixture TypeReflector
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.083A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent65W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)108
Color TempWarm White
CRI80+
Dimming Type120V only, Phase cut
Operating Temp-20C (-4F) to +45C (+113F)
Lumens800L
Volts120v
Watts10W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorGray
ANSI BaseE26
Lamp TypeBR30
MOD Lamps3.75
MOL5.19
Additional Info
Warranty5-Years
Documents
Compliance
FCC CompliantYes
ROHS CompliantYes
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
Packaging
UPC045923091346
Case Cube0.8839
Case Height7.01
Case Length17.13
Case Quantity12
Case UPC10045923091343
Case Weight7.78
Case Width12.72
EA Cube0.0475
EA Height5.51
EA Length3.86
EA Quantity1
EA Weight0.53
EA Width3.86
Inner Cube0.3365
Inner Height5.91
Inner Length12.13
Inner Quantity6
Inner UPC20045923091340
Inner Weight3.52
Inner Width8.11
Pack TypeBox
Web Length5.19
Web Width3.75
