S9142

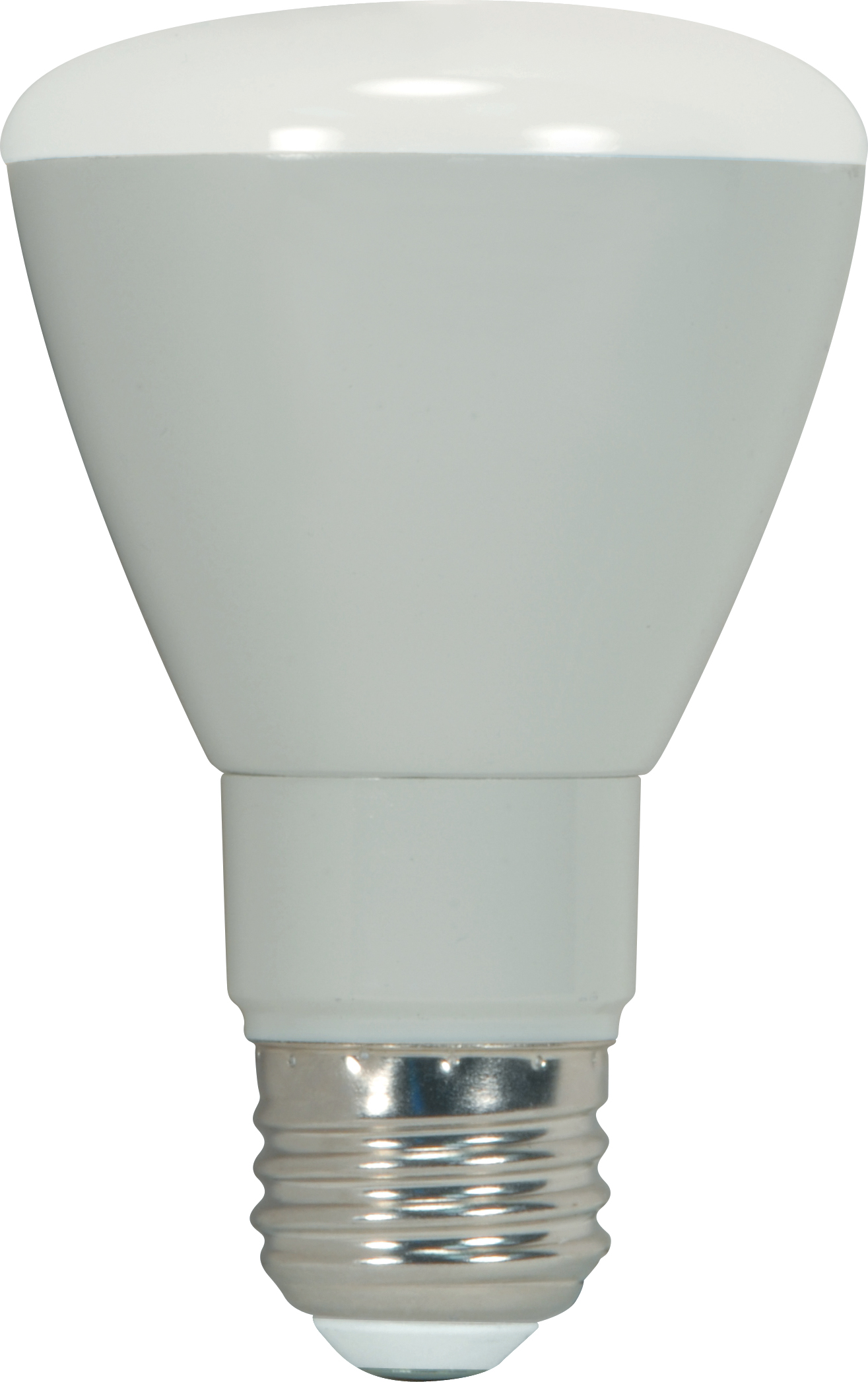

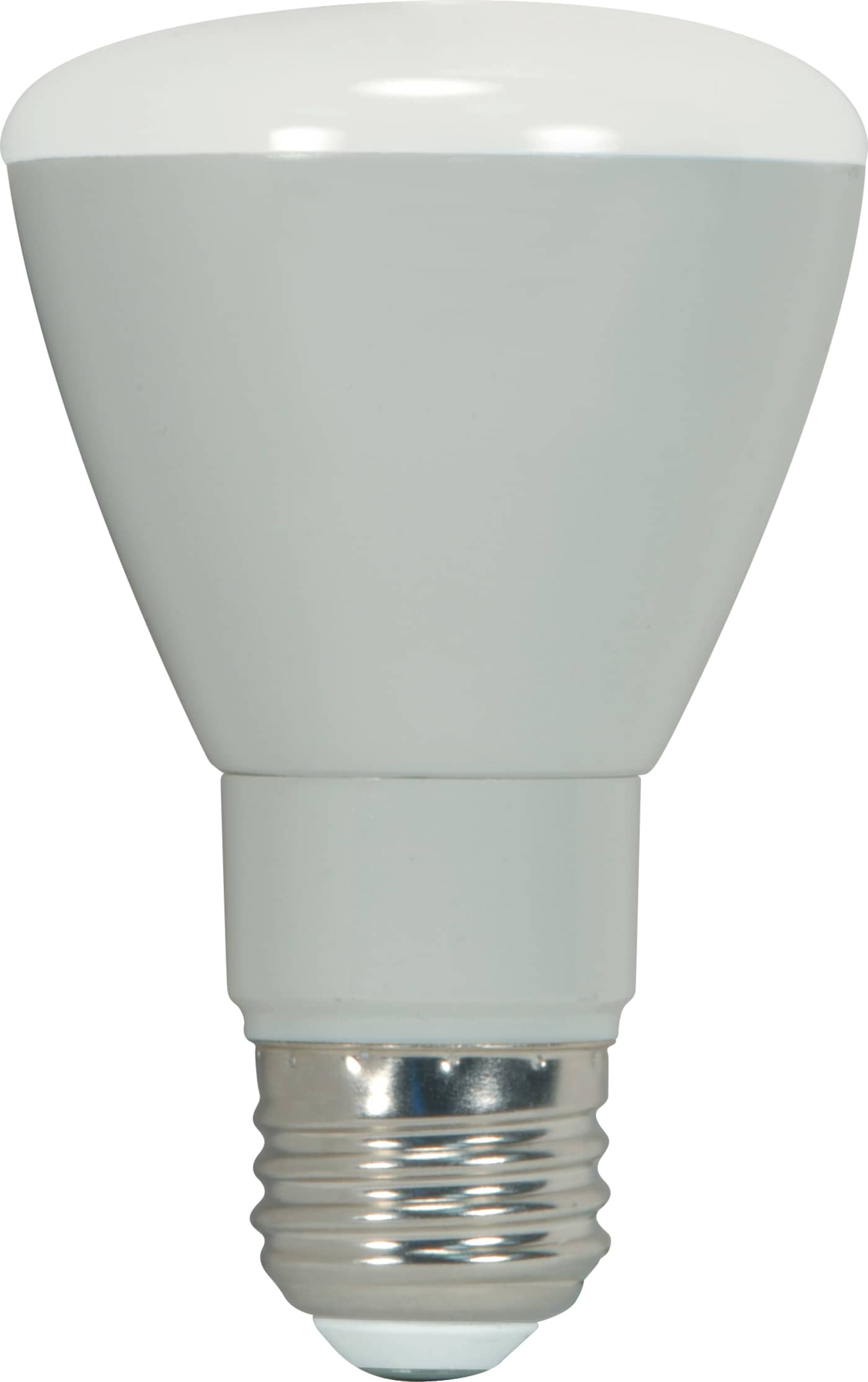

7R20/LED/4000K/560L/120V/D

Discontinued - Suggested Replacement: S9632
  • Discontinued - 7 watt
  • LED R20
  • 4000K
  • 106' beam spread
  • Medium base
  • 120 volts
  • dimmable
dimmable^dimmable^2
hours_rated^25k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S9142 SpecificationsIntroducing the new and improved Satco 7W R20 Ditto
Description
Description
Discontinued - 7 watt; LED R20; 4000K; 106' beam spread; Medium base; 120 volts; dimmable
Products Specs
General
CompanySATCO
Candle Power190.0
Lamp FilamentLED
MaterialAluminum / Plastic
Fixture TypeReflector
StatusObsolete
Most Current GenerationS9632
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.058A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
LensedTrue
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)106
Color TempCool White
CRI80+
Dimming TypeForward Phase or Reverse Phase
Operating Temp-20C (-4F) to +45C (+113F)

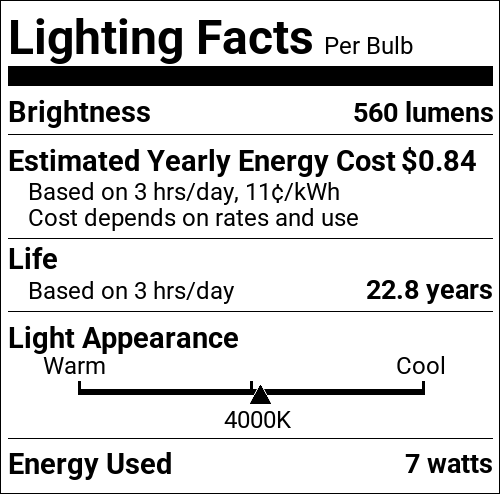

Lumens560L
Volts120v
Watts7W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorGray
ANSI BaseE26
Lamp TypeR20
MOD Lamps2.5
MOL3.94
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsNon-Compliant - <82 CRI
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
NV StatusLawful for sale
ROHS CompliantYes
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923091421
Case Cube0.6531
Case Height10.43
Case Length12.05
Case Quantity24
Case UPC10045923091428
Case Weight6.7
Case Width8.98
EA Cube0.0166
EA Height4.25
EA Length2.6
EA Quantity1
EA Weight0.24
EA Width2.6
Inner Cube0.125
Inner Height4.65
Inner Length8.31
Inner Quantity6
Inner UPC20045923091425
Inner Weight1.57
Inner Width5.59
Pack TypeBox
Web Length3.94
Web Width2.5
