S29596

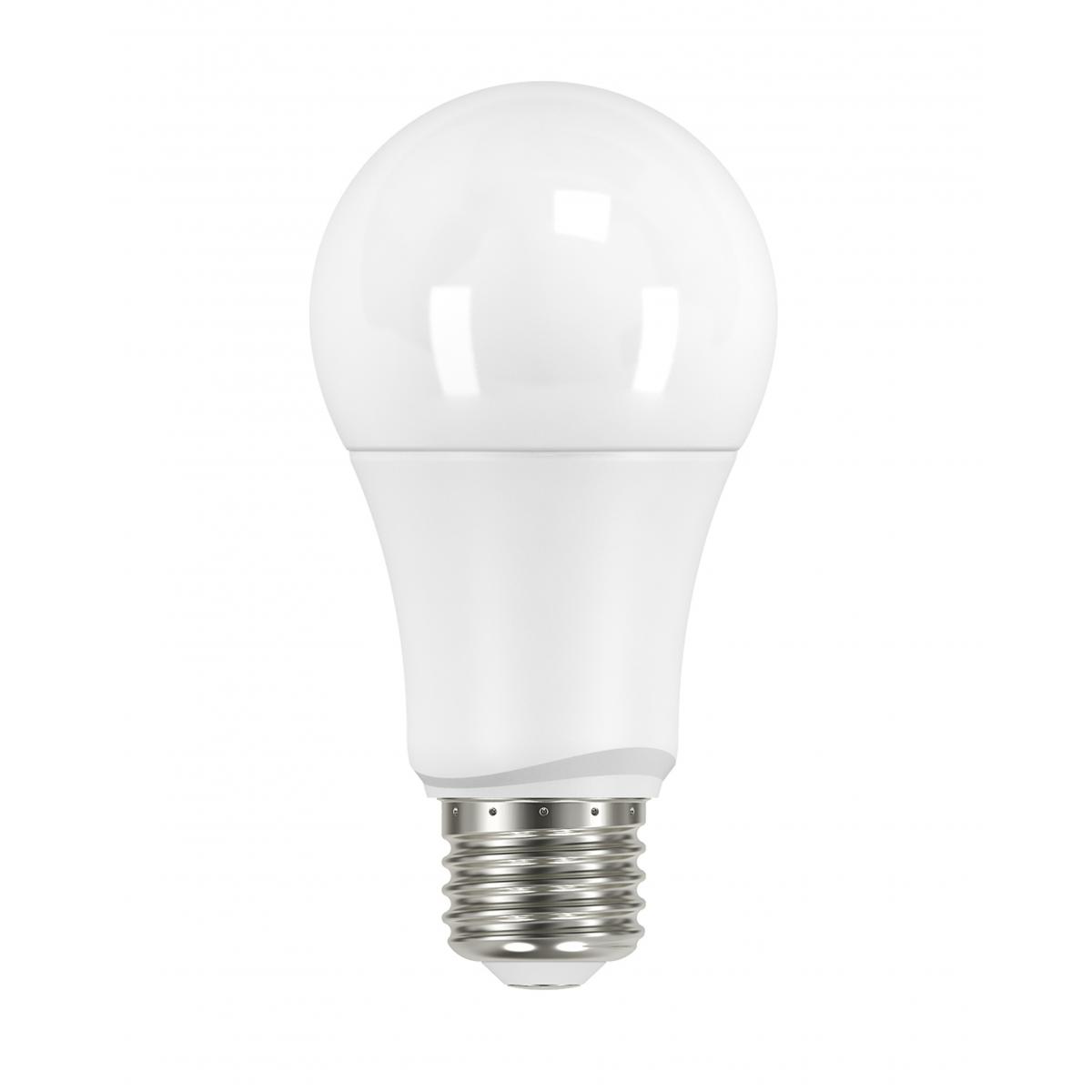

9.5A19/LED/27K/ND/120V/4PK

  • 9.5 Watt
  • A19 LED
  • Frosted
  • 2700K
  • Medium base
  • 220 deg. Beam Angle
  • 120 Volt
  • Non-Dimmable
  • 4-Pack
location_rating^damp^1
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29596 SpecificationsSA2215 LED A19 60W Replacement 4pk PI-10-03-24SA2000-3 LO RES LED Lamp Reference Guide - LIT 4 21
Tools
Lighting Layout Analysis For S29596
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9.5 Watt; A19 LED; Frosted; 2700K; Medium base; 220 deg. Beam Angle; 120 Volt; Non-Dimmable; 4-Pack
Products Specs
General
CompanySATCO
CA RegulationsNon-Compliant - <82 CRI
Lamp FilamentLED
Fixture TypeType A
StatusDiscontinued
StyleTraditional
Most Current GenerationS39596
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.079A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
LensedTrue
Operating PositionUniversal
Power Factor0.6
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv13W
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)2700K
DimmableNon-Dimmable
Hours Rated15000
Beam Angle (degree)220
Color TempWarm White
CRI80+
Operating Temp-25C (-13F) to +45C (+113F)
Lumens800L
Volts120v
Watts9.5W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA19
MOD Lamps2.38
MOL4.31
Additional Info
Warranty2-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA T20 Compliant SubstituteS28560
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923295966
Case Cube0.9617
Case Height10.04
Case Length15.87
Case Quantity12
Case UPC10045923295963
Case Weight6.94
Case Width10.43
EA Cube0.064
EA Height4.53
EA Length9.84
EA Quantity1
EA Weight0.55
EA Width2.48
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length4.31
Web Width2.38
