S29941 12T8/LED/48-850/DR-DM

S29941

12T8/LED/48-850/DR-DM

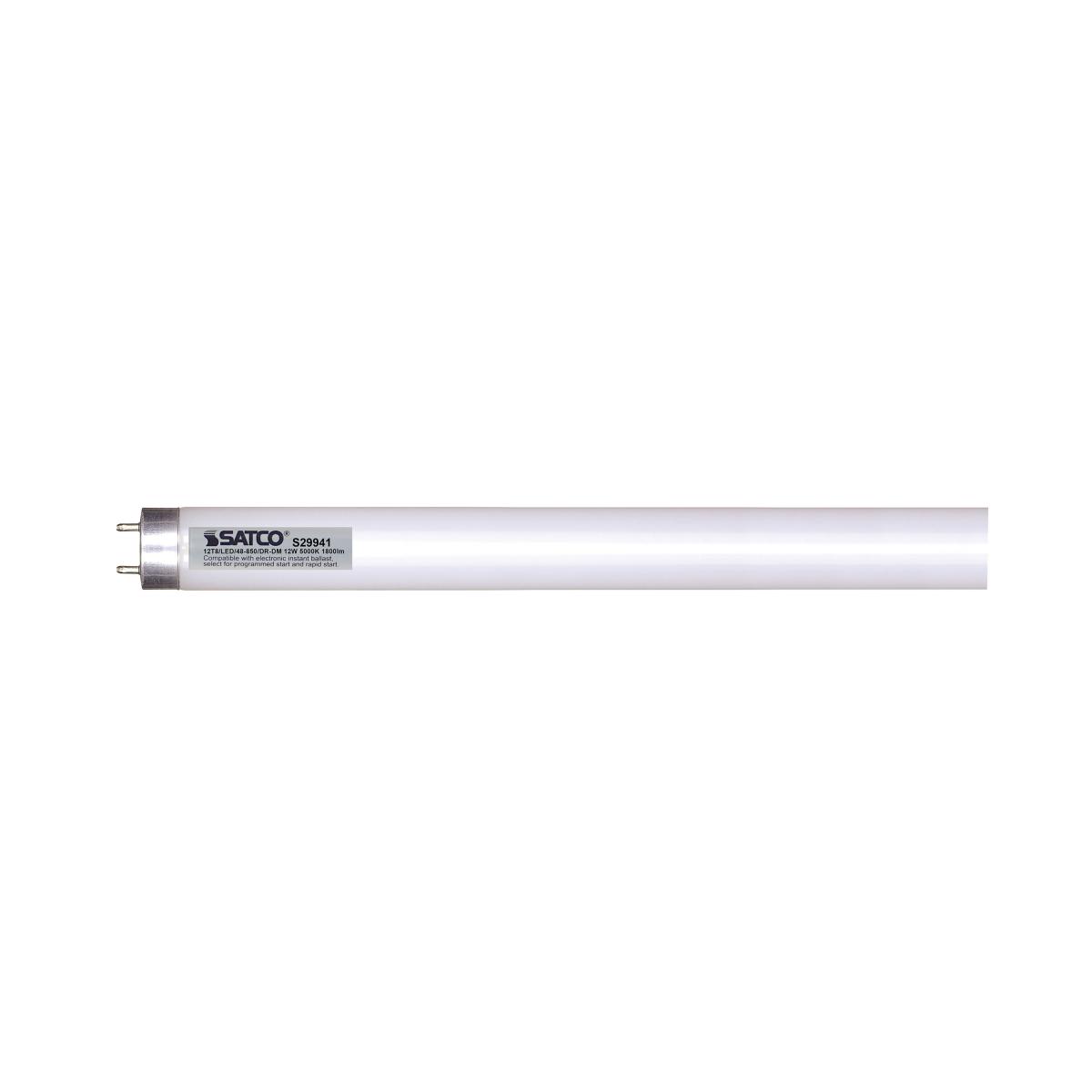

12 Watt T8 LED; Medium bi-pin base; 5000K; 50000 Average rated hours; 1800 Lumens; Dimmable; Type A; Ballast dependent


Lights

S29941

12T8/LED/48-850/DR-DM

12 Watt T8 LED; Medium bi-pin base; 5000K; 50000 Average rated hours; 1800 Lumens; Dimmable; Type A; Ballast dependent

Specifications

General
StatusDiscontinued
Watts12W
Incandescent Equivalent60W
Fluorescent Equivalent25W-32W
Ballast TypeType A
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishGloss
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1800L
Beam Spread210
DimmableYes-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts12W
Incandescent Equivalent60W
Fluorescent Equivalent25W-32W
Ballasting RequirementsBallast required. Direct Replacement- for use on Instant Start, Rapid Start, Emergency, and Dimming ballasts with no rewiring required. May not be compatible with every ballast. Refer to the ballast compatability chart.
Ballast TypeType A
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1800L
Beam Spread210
DimmableYes-Dimmable
Dimming NoteOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Power Factor0.9
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL48
MOD1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss
Lens FinishGloss
Additional Information
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923299414
Each Quantity1
Each Length (in.)48.00
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)0.60
Each Cube (CuFt.)0.0336
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923299411
Case Quantity10
Case Length (in.)49.60
Case Width (in.)8.30
Case Height (in.)4.30
Case Weight (lb.)6.40
Case Cube (CuFt.)1.0244
×
×

Ballast Compatibility

Name Type View
T8 LED Chart N LED T8 View
T8 LED Emergency Chart N LED T8 View
×

Precautions

No precautions available at this time.

×
