Discontinued – Suggested Replacement: S49946

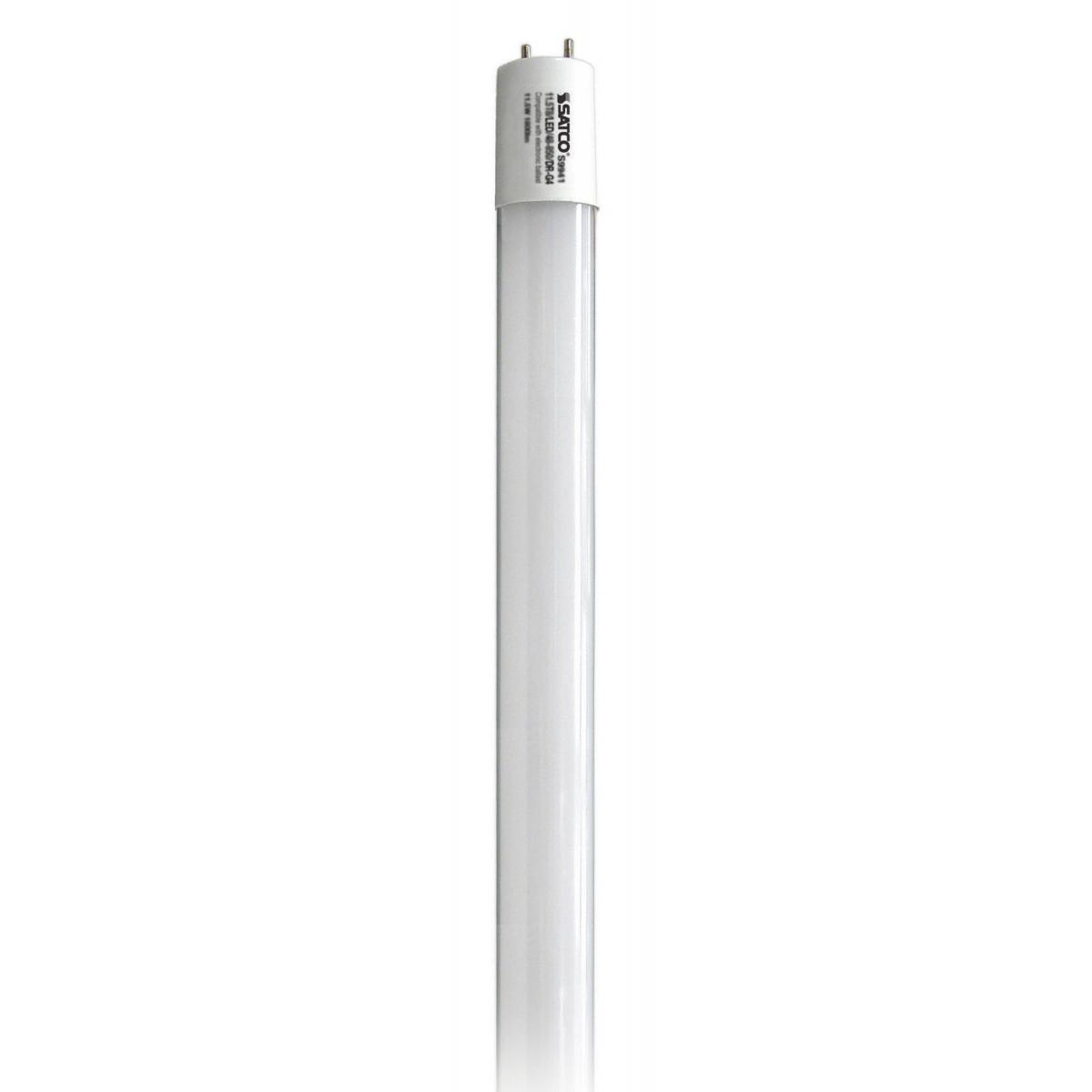

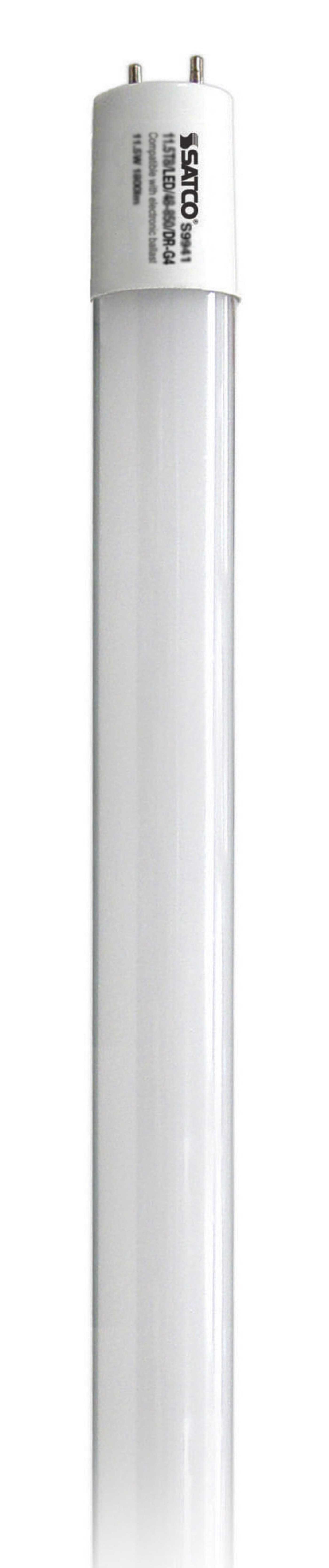

S9946 8T8/LED/24-830/DR

S9946

8T8/LED/24-830/DR

8 Watt T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 1200 Lumens; Type A; Ballast dependent


Lights

S9946

8T8/LED/24-830/DR

8 Watt T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 1200 Lumens; Type A; Ballast dependent

Specifications

General
StatusDiscontinued
SubstituteS49946
Watts8W
Incandescent Equivalent60W
Fluorescent Equivalent17W
Ballast TypeType A
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length24
FinishGloss White
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1200L
Beam Spread220
DimmableNon-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts8W
Incandescent Equivalent60W
Fluorescent Equivalent17W
Ballasting RequirementsBallast required
Ballast TypeType A
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1200L
Beam Spread220
DimmableNon-Dimmable
Power Factor0.96
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL24
MOD1
Nominal Length24
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
Lens FinishGloss White
Additional Information
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923099465
Each Quantity1
Each Length (in.)23.80
Each Width (in.)1.00
Each Height (in.)1.00
Each Weight (lb.)0.28
Each Cube (CuFt.)0.0138
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923099462
Case Quantity10
Case Length (in.)24.40
Case Width (in.)6.30
Case Height (in.)3.00
Case Weight (lb.)3.40
Case Cube (CuFt.)0.2669
×
×

Ballast Compatibility

Name Type View
Emergency Ballast IOTA LED T8 View
T8 LED Chart C LED T8 View
T8 LED Chart H LED T8 View
T8 LED Emergency Chart H LED T8 View
×

Precautions

No precautions available at this time.

×
