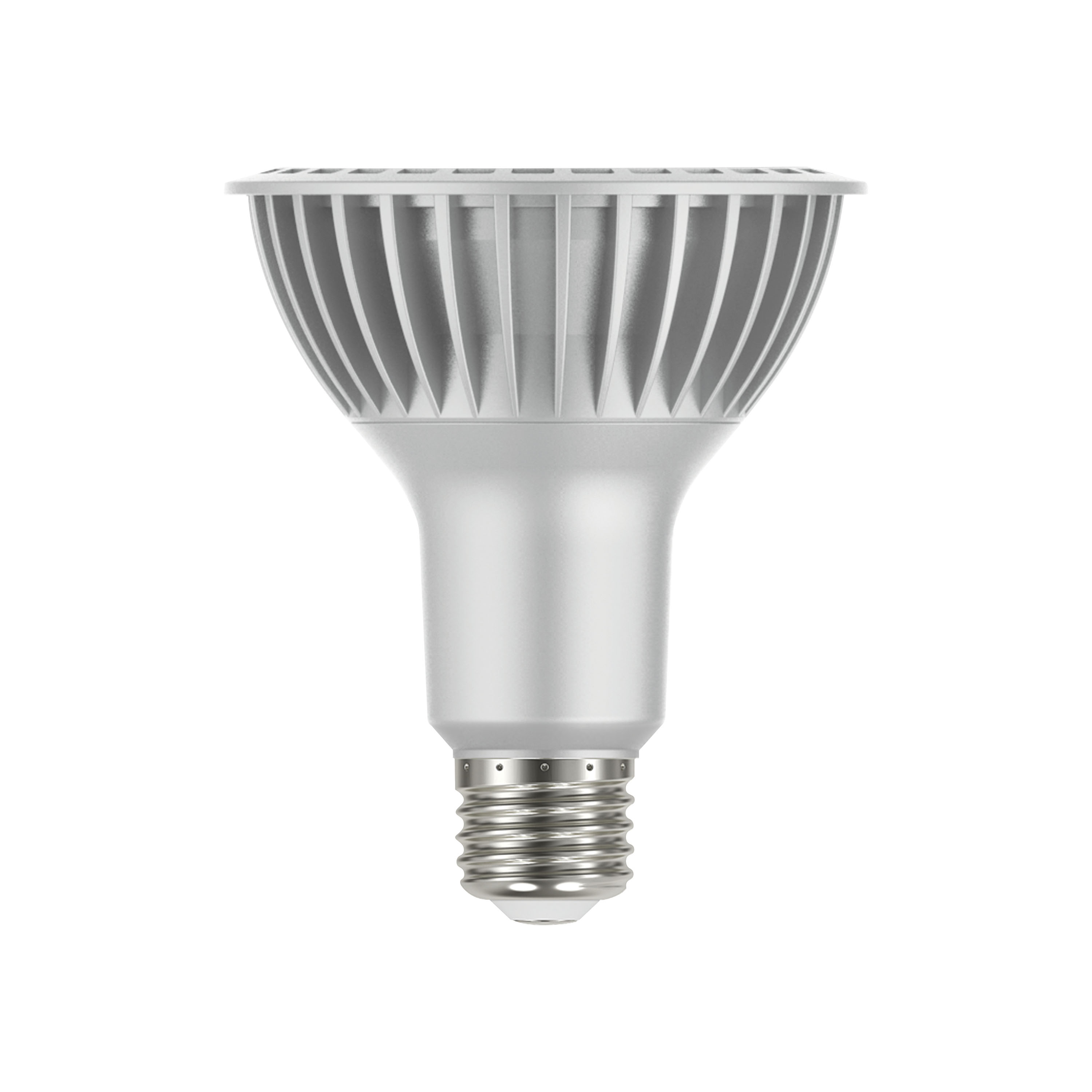

S22241

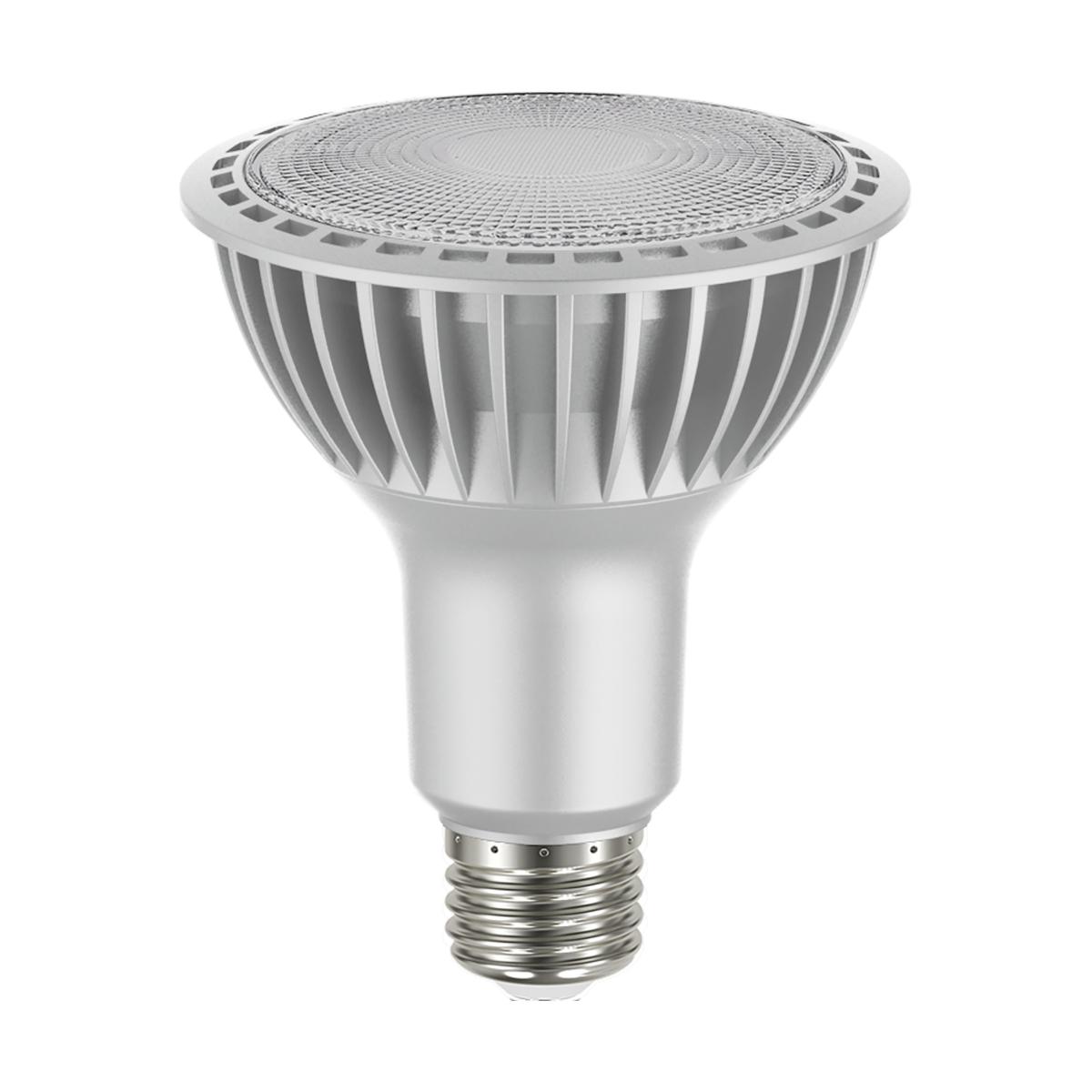

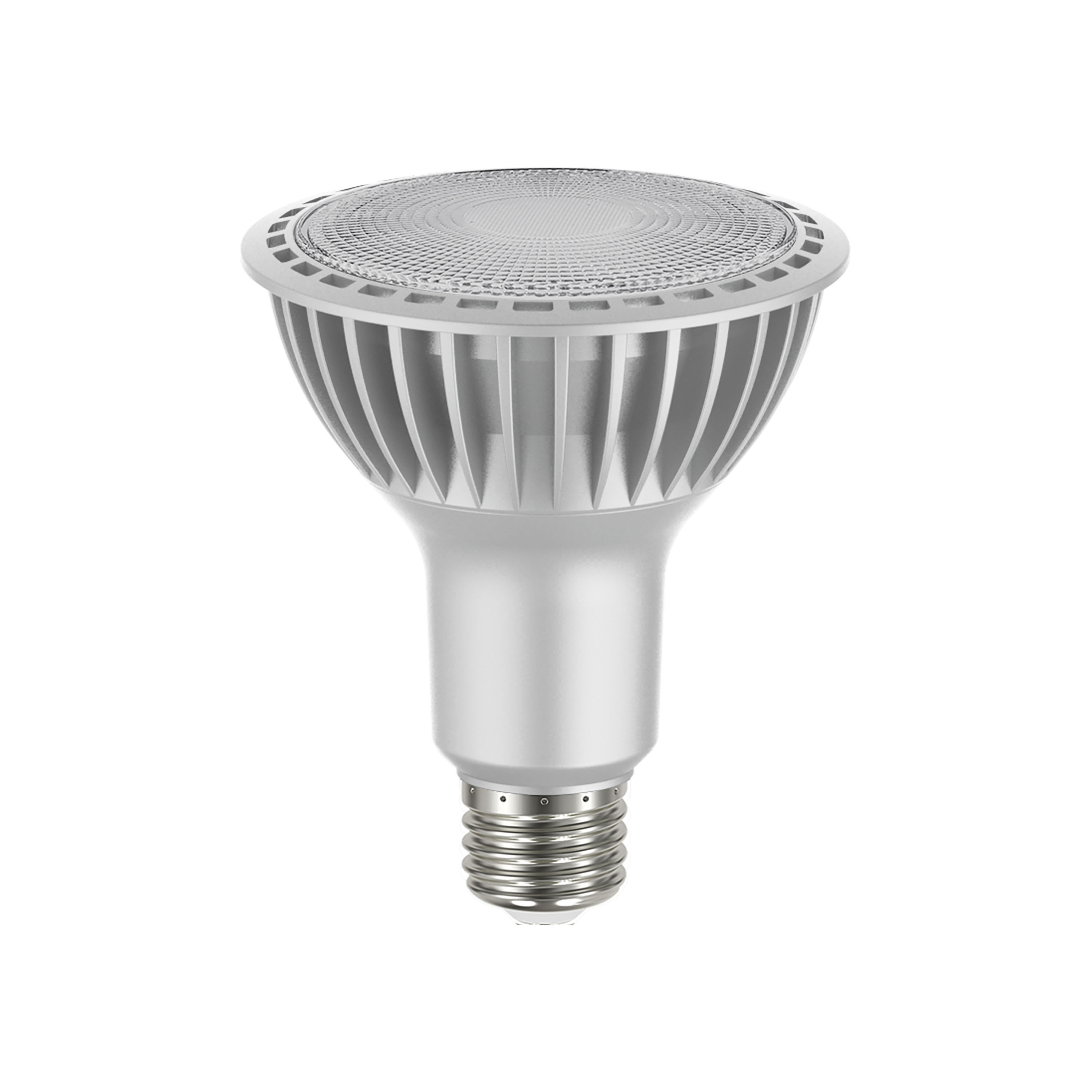

20.5PAR30LN/LED/930/HL/120V/FL

Discontinued - Suggested Replacement: S32240
  • 20.5 Watt PAR30 High Lumen LED
  • Long Neck
  • 3000K
  • Medium base
  • 120 Volt
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^40^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S22241 SpecificationsS22241 Photometrics.iesNEW! HIGH LUMEN LED PAR LAMPS
Tools
Lighting Layout Analysis For S22241
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
20.5 Watt PAR30 High Lumen LED; Long Neck; 3000K; Medium base; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED
MaterialAluminum / Plastic
Fixture TypePAR
Spot TypeFL - Flood
StatusDiscontinued
StyleUtility
Most Current GenerationS32240
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilySilver
Amps0.171A
Has CameraFalse
IOT EnabledFalse
Lens FinishSilver
Lens MaterialPlastic (PS)
LensedTrue
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated25000

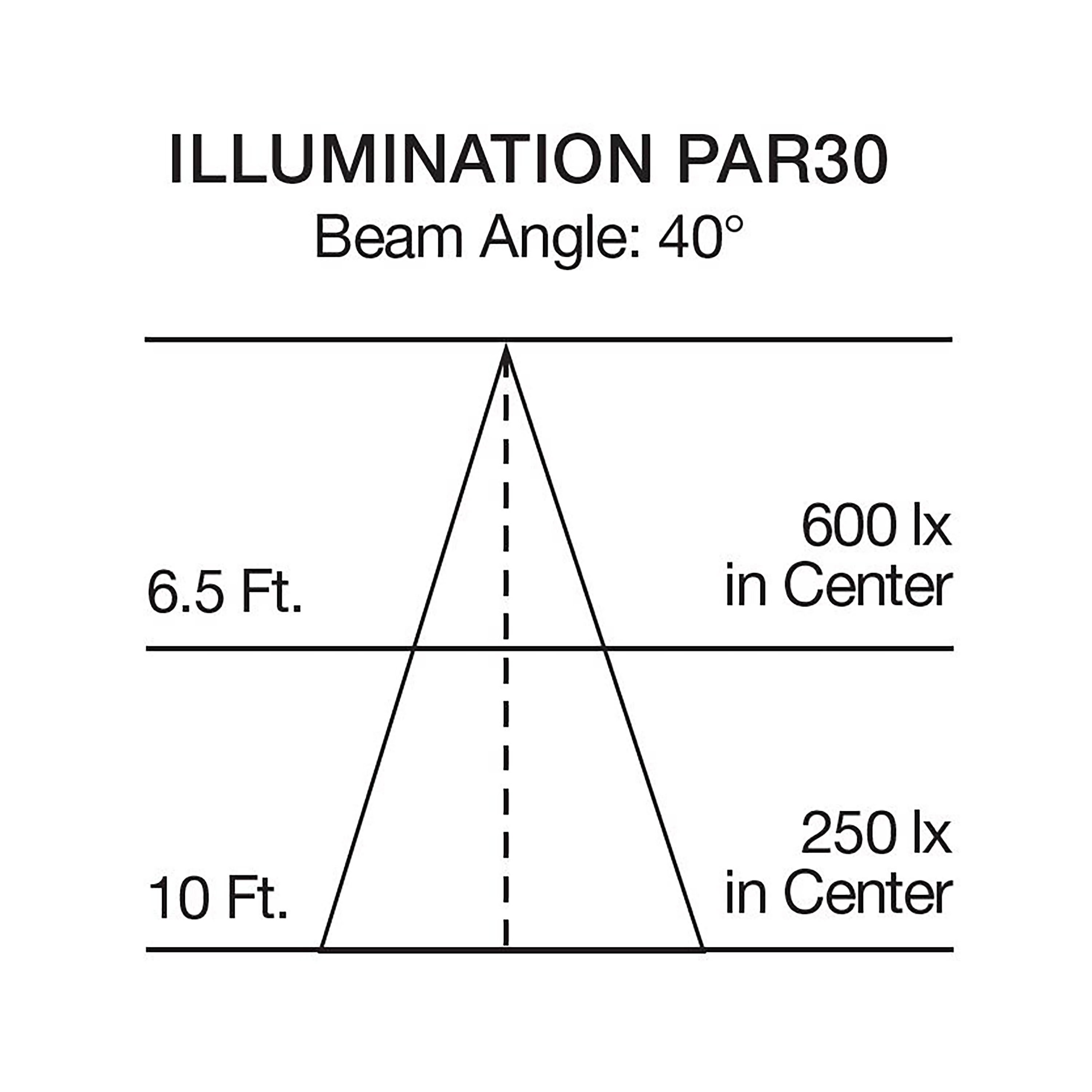

Beam Angle (degree)40
Color TempSoft White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)

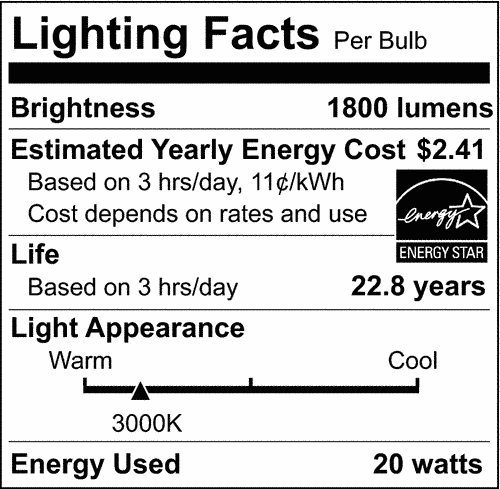

Lumens1800L
Volts120v
Watts20.5W
Physical
Lamp BaseMedium
FinishSILVER
Housing ColorGray
ANSI BaseE26
Lamp TypePAR30LN

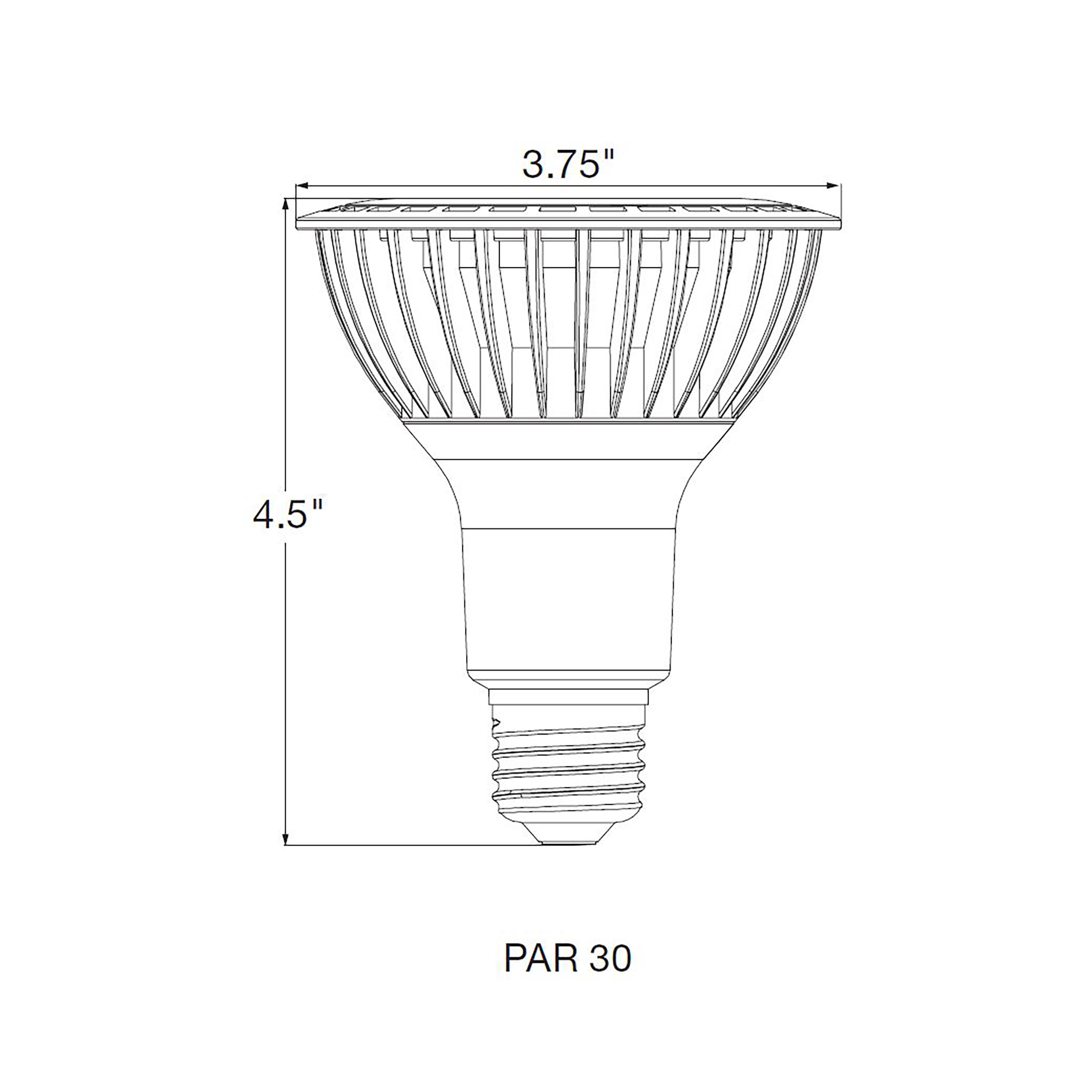

MOD Lamps3.75
MOL4.45
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
FCC CompliantTrue
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanCalifornia T24 Listed
DLC ApprovedFalse
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923222412
Case Cube0.721
Case Height5.91
Case Length16.73
Case Quantity12
Case UPC10045923222419
Case Weight9.49
Case Width12.6
EA Cube0.0444
EA Height4.94
EA Length3.94
EA Quantity1
EA Weight0.67
EA Width3.94
Inner Cube0.2869
Inner Height5.12
Inner Length12.0
Inner Quantity6
Inner UPC20045923222416
Inner Weight4.29
Inner Width8.07
Pack TypeBox
Web Length4.45
Web Width3.75
