S23113

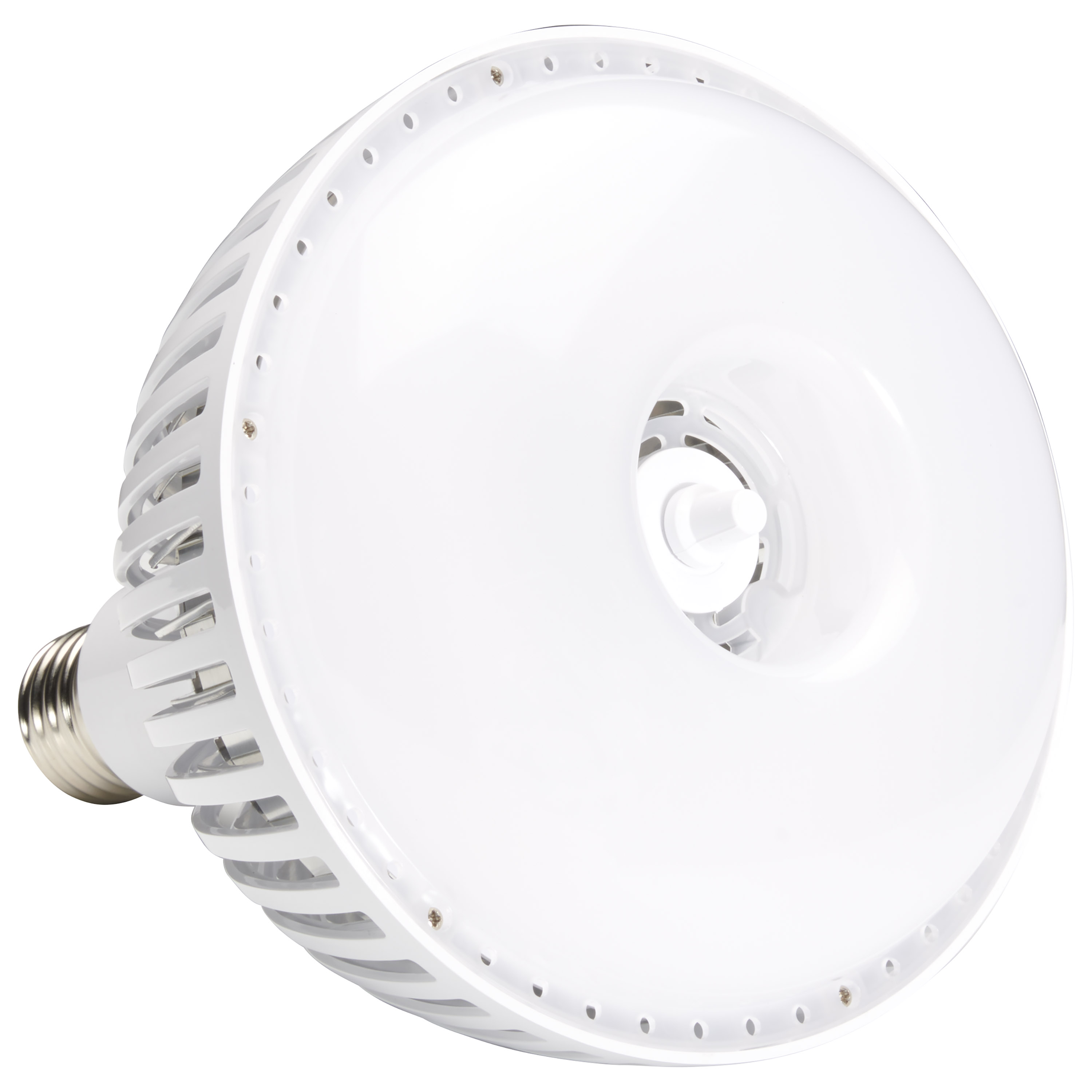

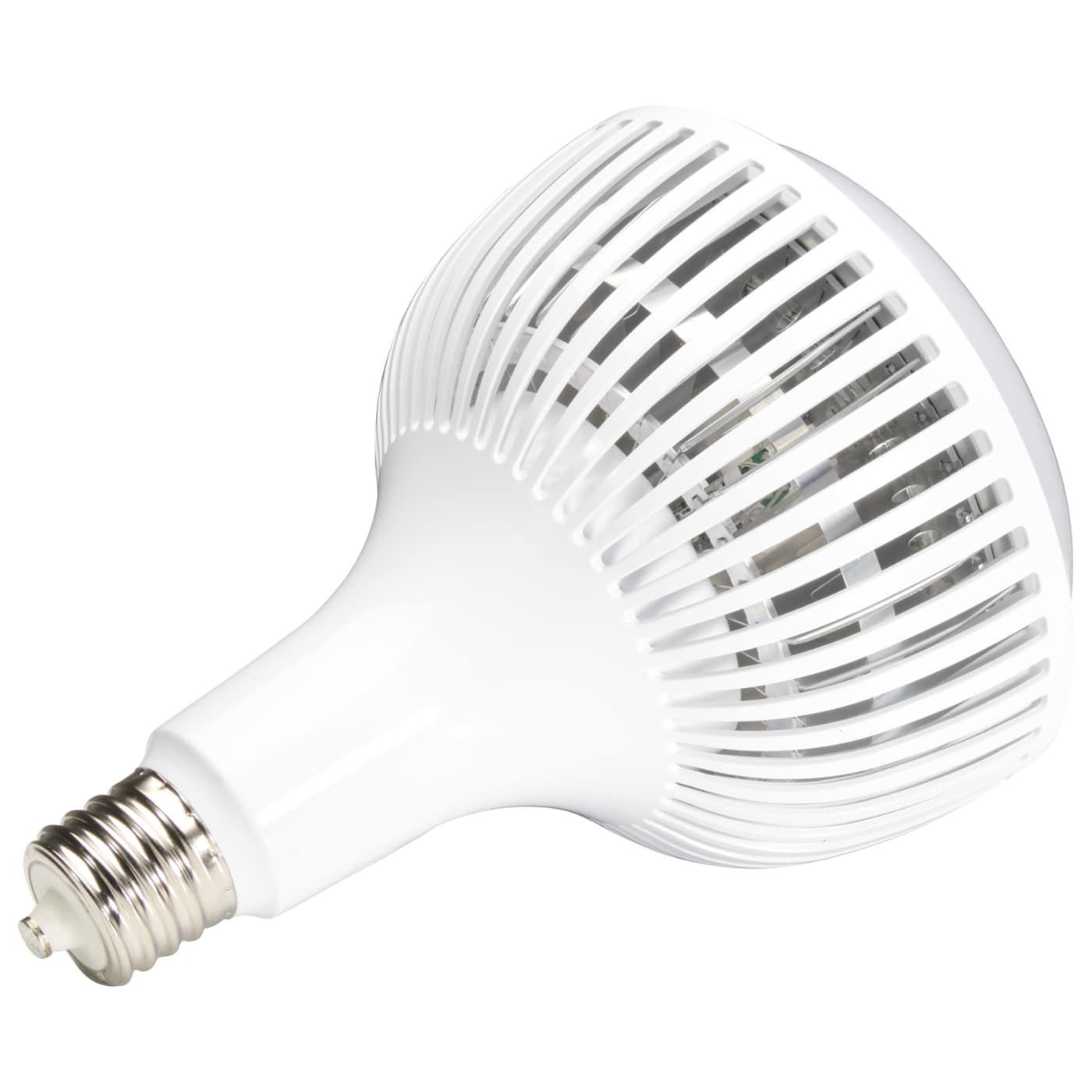

80W/LED/HID-HB/5K/120-277V

Discontinued - Suggested Replacement: S33113
  • 80 Watt - LED HID Replacement
  • 5000K
  • Mogul extended base
  • Type B Ballast Bypass
  • 120-277 Volt
  • Dimmable
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^35k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S23113 SpecificationsS23113 Instructions.pdfSA2536 Hi-Pro HighBay PI Sheet 3 19.pdf
Description
Description
80 Watt - LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt; Dimmable
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Candle Power3000.0
Dimmable TextStep Dimming; Only dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls.
Lamp FilamentLED
MaterialAluminum
Fixture TypeHi-Bay

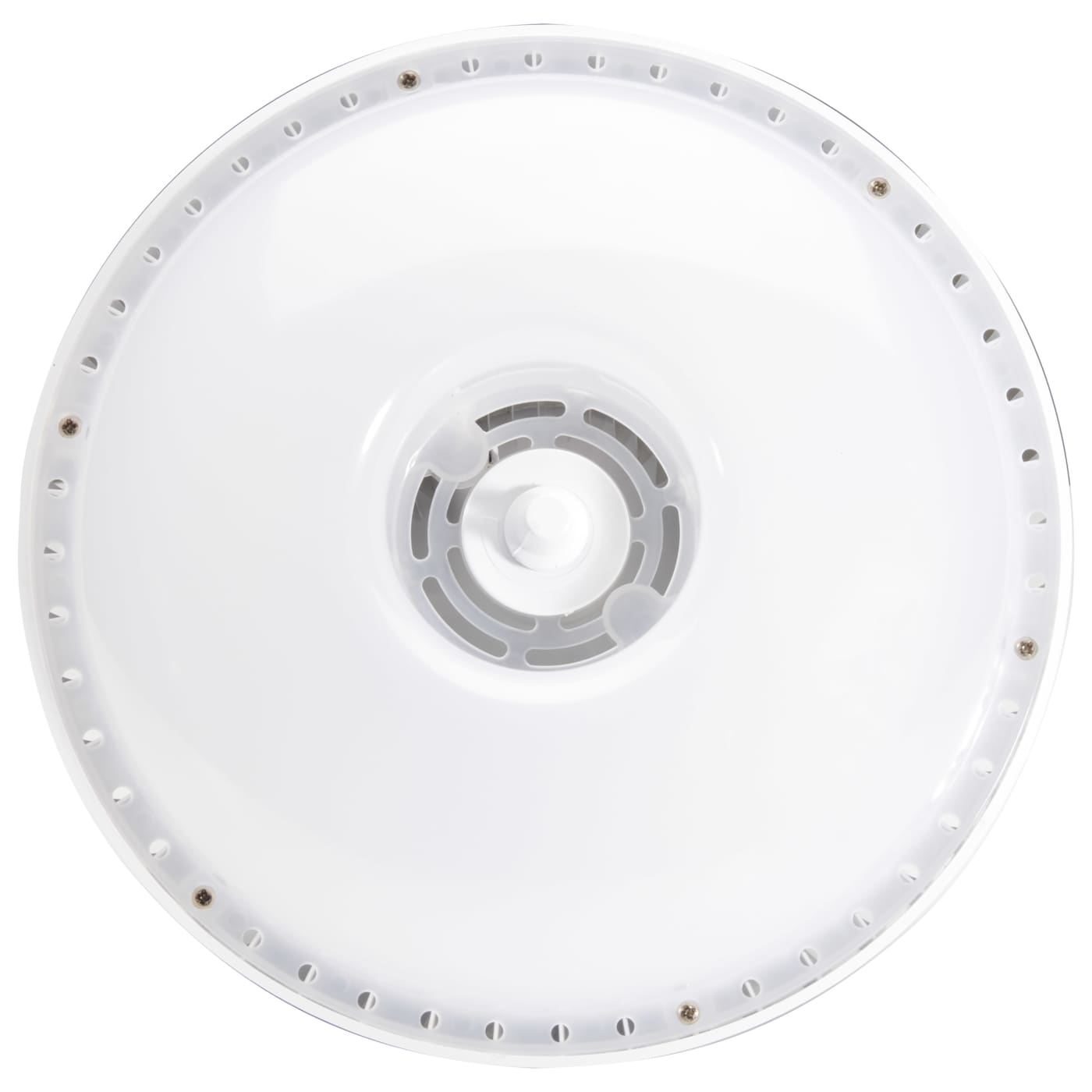

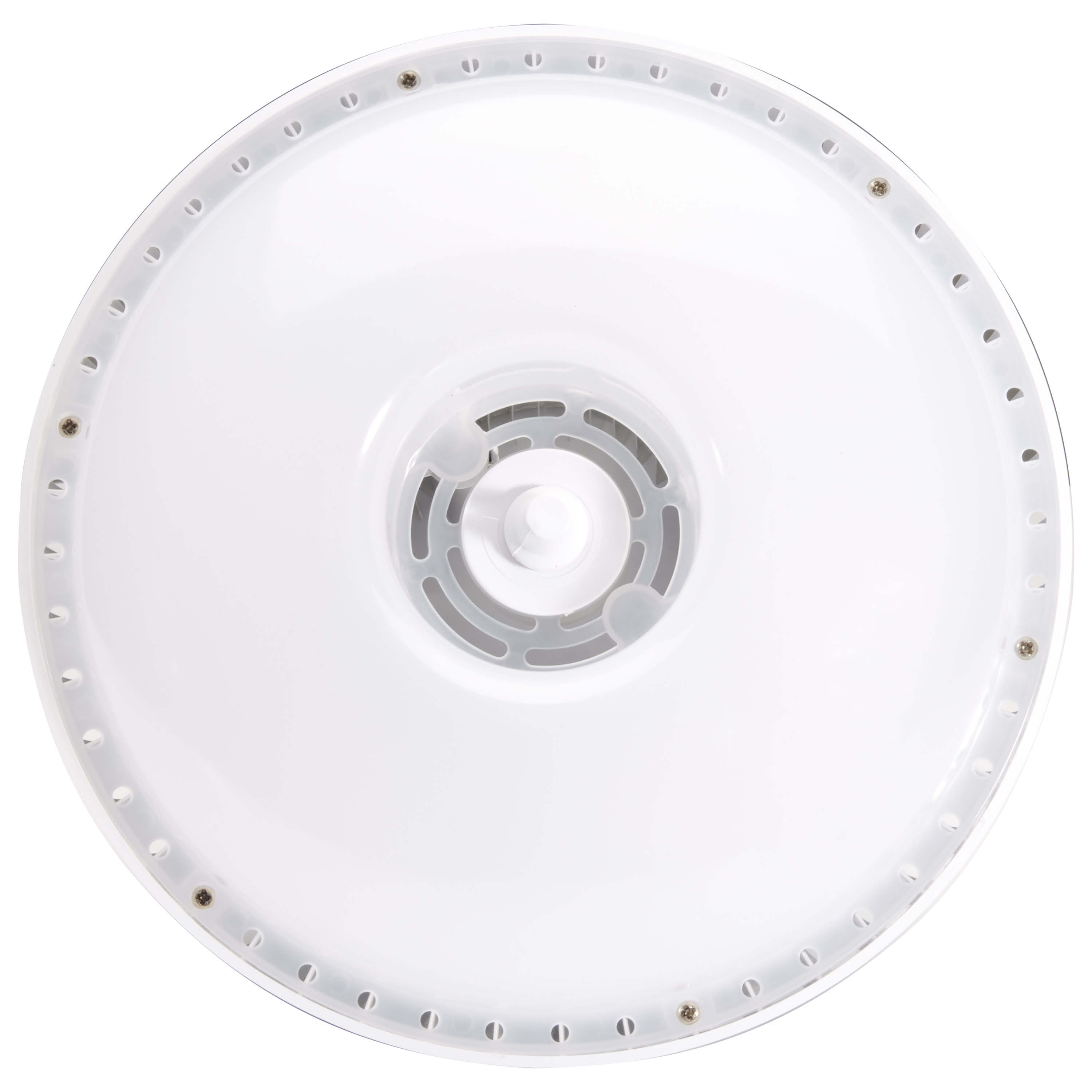

Product NotesFixture has a built-in dimming control feature
StatusObsolete
StyleContemporary
Surge ProtectionBuilt-in surge protection - 6KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.667-0.2889A
Has CameraNo
IOT EnabledNo
Lens MaterialPlastic
LensedYes

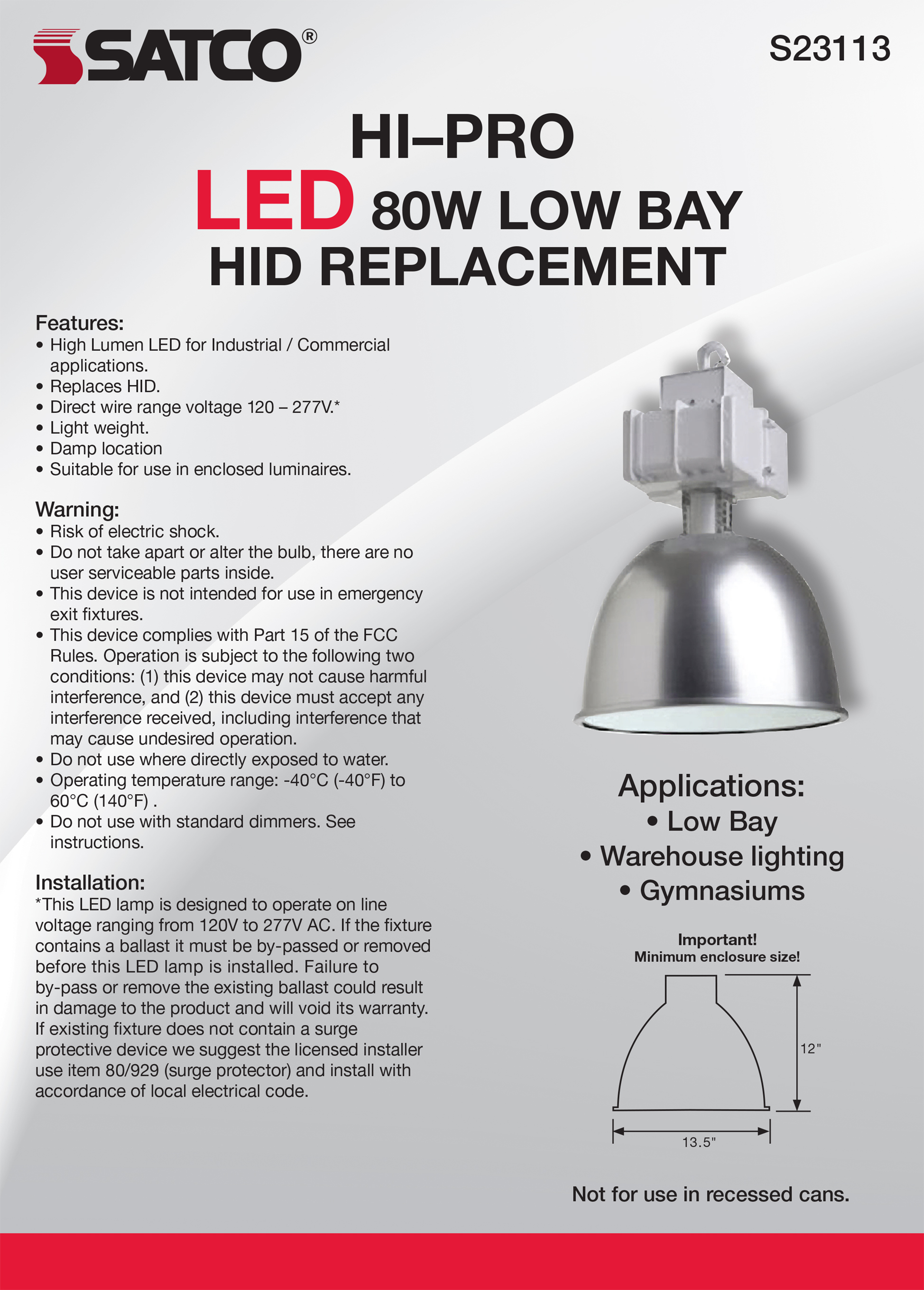

Minimum Compartment SizeLength: 13.5 in. Width: 13.5 in. Height: 12 in.
Operating PositionUniversal
Power Factor0.98/0.92
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent400W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated35000

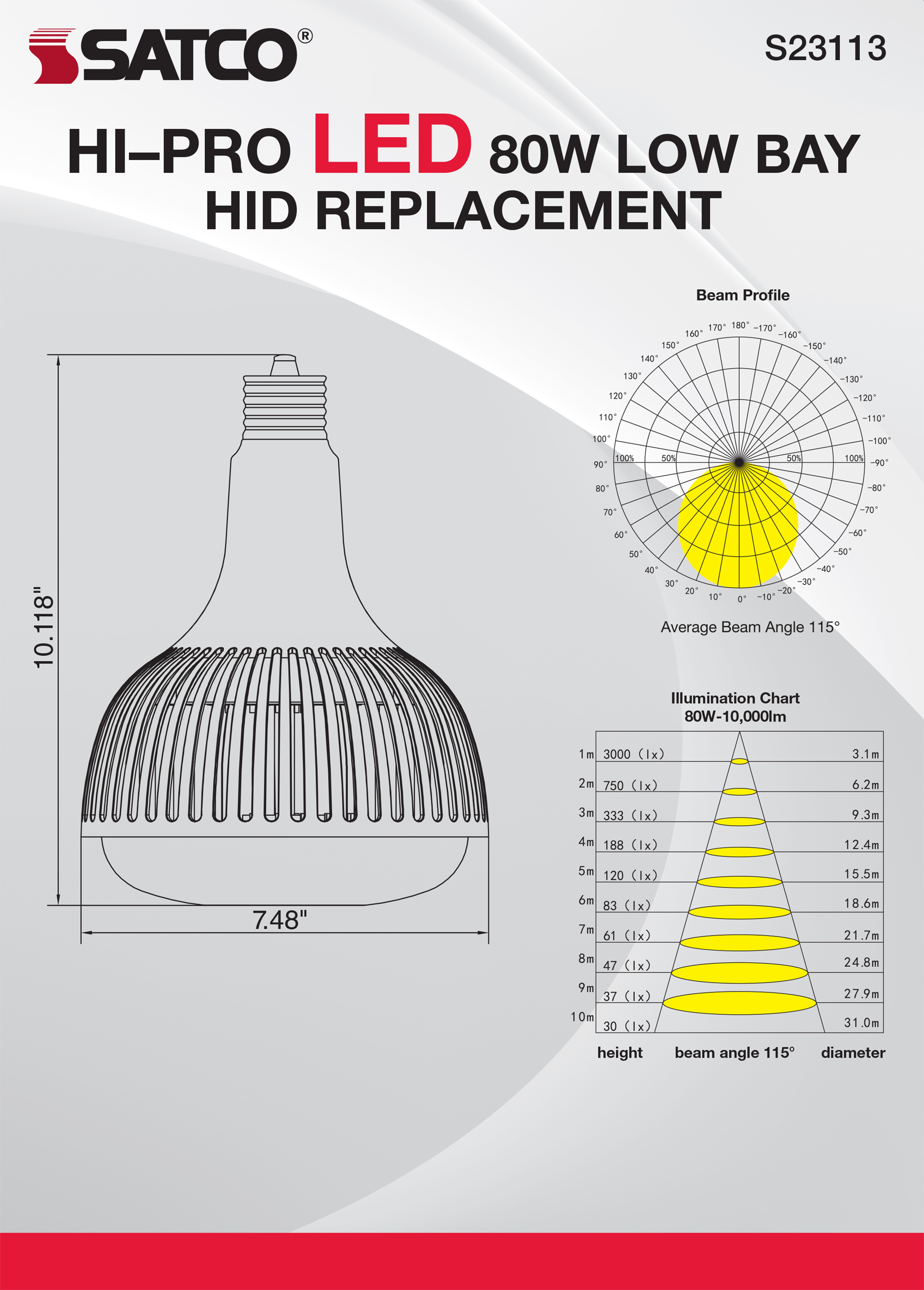

Beam Angle (degree)115
Color TempNatural Light
CRI80+
Dimming TypeOnly dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls., Step Dimming
Operating Frequency50-60Hz
Operating Temp-40C (-40F) to +60C (+140F)
HID Equivalent250W

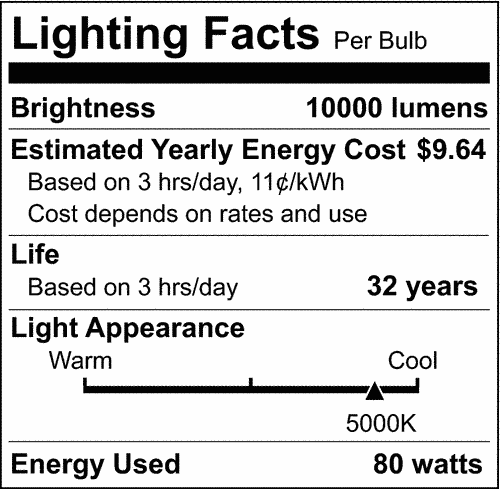

Lumens10000L
Volts120V-277V
Watts80W
Physical
Lamp BaseMogul Extended
FinishTranslucent White
Housing ColorWhite
ANSI BaseEX39
Lamp TypeHB60

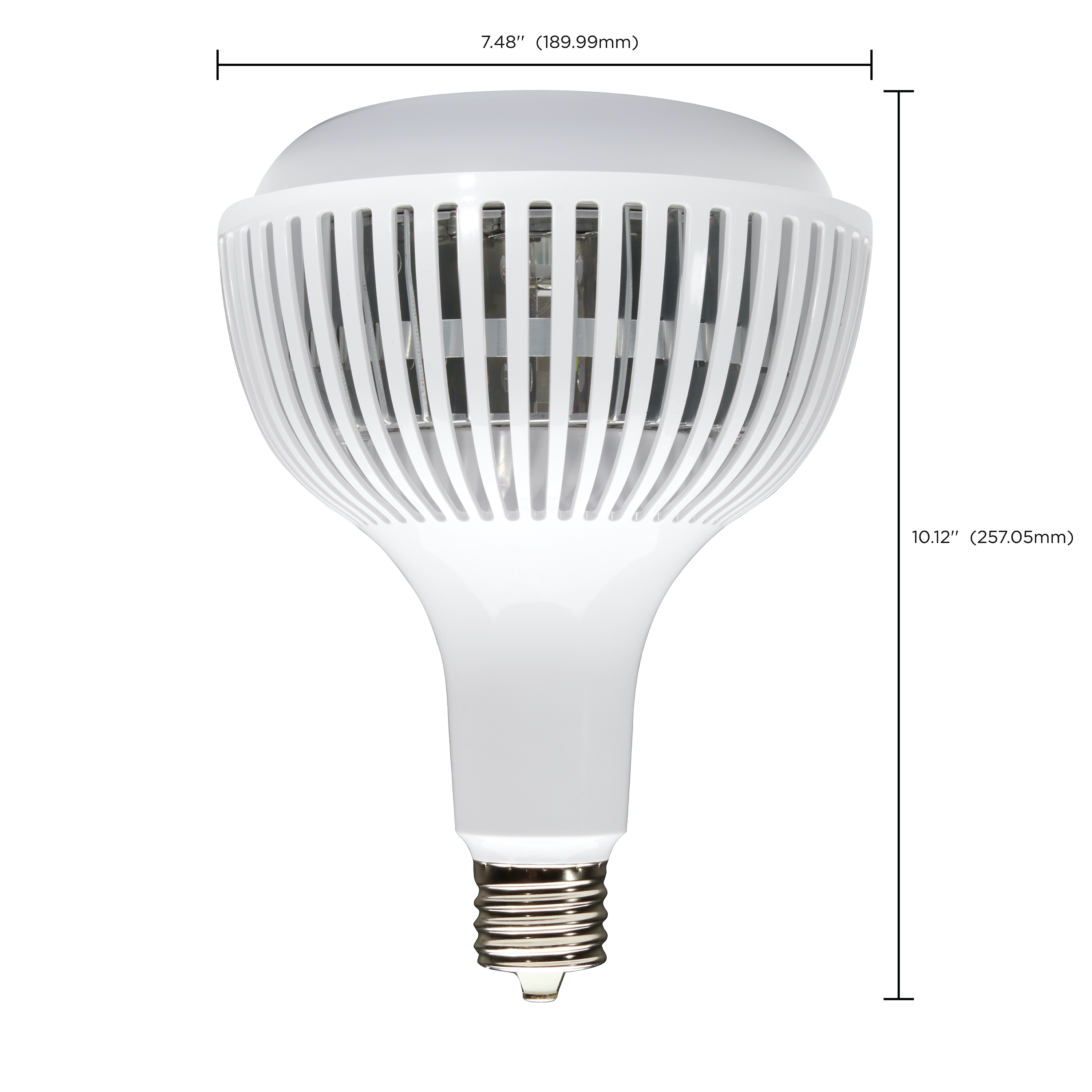

MOD Lamps7.48
MOL10.12
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923231131
Case Cube1.6909
Case Height11.69
Case Length15.87
Case Quantity4
Case UPC10045923231138
Case Weight10.36
Case Width15.75
EA Cube0.3377
EA Height10.43
EA Length7.48
EA Quantity1
EA Weight2.2
EA Width7.48
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length10.12
Web Width7.48
