A Bluetooth mesh, hub-free wireless control solution with embedded motion and daylight sensors in many in-stock fixtures.

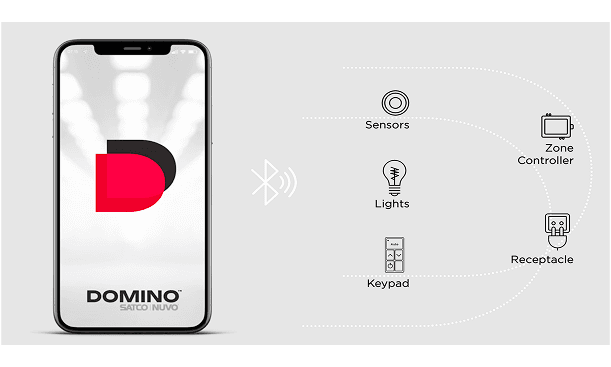

SATCO | NUVO’s Domino™ NLC is a Bluetooth® mesh, hub-free wireless control solution with embedded motion and daylight sensors in many in-stock fixtures. With additional components like external controllers, keypads, and sensors Domino will be able to control not just SATCOINUVO lighting but virtually any lighting fixture.
Capabilities extend beyond simple occupancy/vacancy, daylight harvesting, scheduling and scene setting for both interior and exterior fixtures, to advanced IoT analytics platforms that can track occupancy status for space utilization, wayfinding and even critical asset tracking.
Backed up by world class SATCO technical support and service with Domino enabled product in stock we are now the best solution available for commercial lighting controls.
Meets ALL energy code and DLC requirements to qualify for maximum available energy incentives

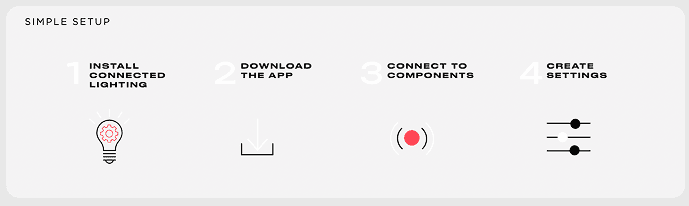

Intuitive app with user prompts to guide set up and use
Mesh sensors simplifies installation and saves time
Multi-function expanded configurations solve virtually any control application
128-bit AES signal encryption ensures maximum system security
Unlimited number of zones for any size facility with project-level coordination and enhanced IoT analytics for space utilization, way finding and critical asset tracking capabilities
Less expensive system and set up with all items available in stock
By world-class SATCO Service and Support
2.4 GHz Bluetooth Mesh hubless system topography with encrypted signals
Hubless technology eliminates a potential point of failure and also enables enhanced addressable control of individual fixtures

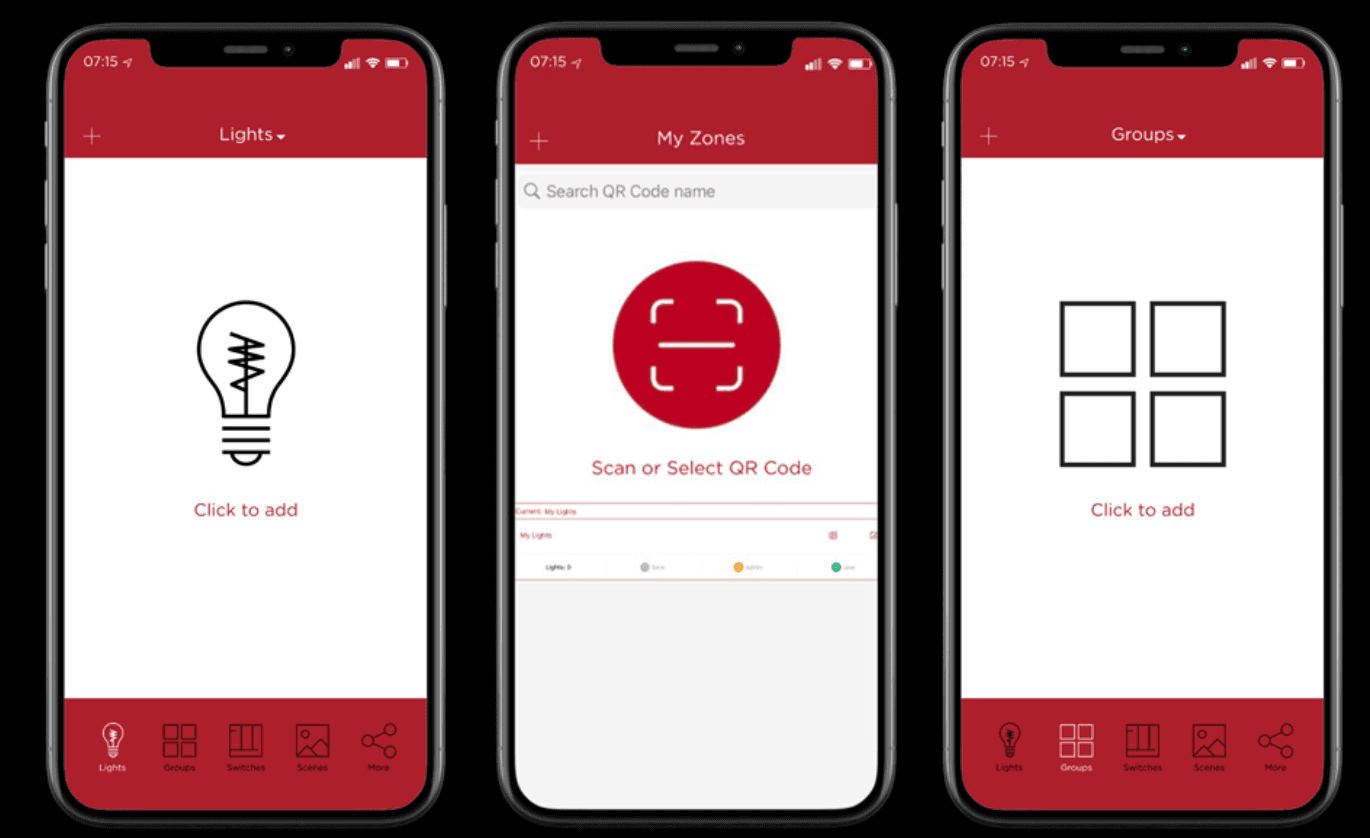

Enhanced app design includes prompts for system updates and helpful project management tools (DOMINO Commander for more than 100 components)—helps you keep all elements up to date on firmware
Emergency zone controllers to meet UL 924 requirements
No Wi-Fi needed for initial setup
Embedded motion and daylight sensors in most luminaire types for interior and exterior applications
Expert CLSD product specialists available for service and support
Long-life battery-operated keypads for true wireless operation
Occupancy/Vacancy Sensing to shut off lighting in unoccupied spaces
Daylight harvesting—dimming light near window spaces and under skylights based on ambient natural light levels
Manual controls—keypads that can switch different loads of lights on and off, dim individual or groups of lights, set scenes, and control CCT if desired
Scheduling—set off times for interior or exterior spaces based on hours of operation
Control receptacles for automatic shutoff (to meet new energy code requirements)

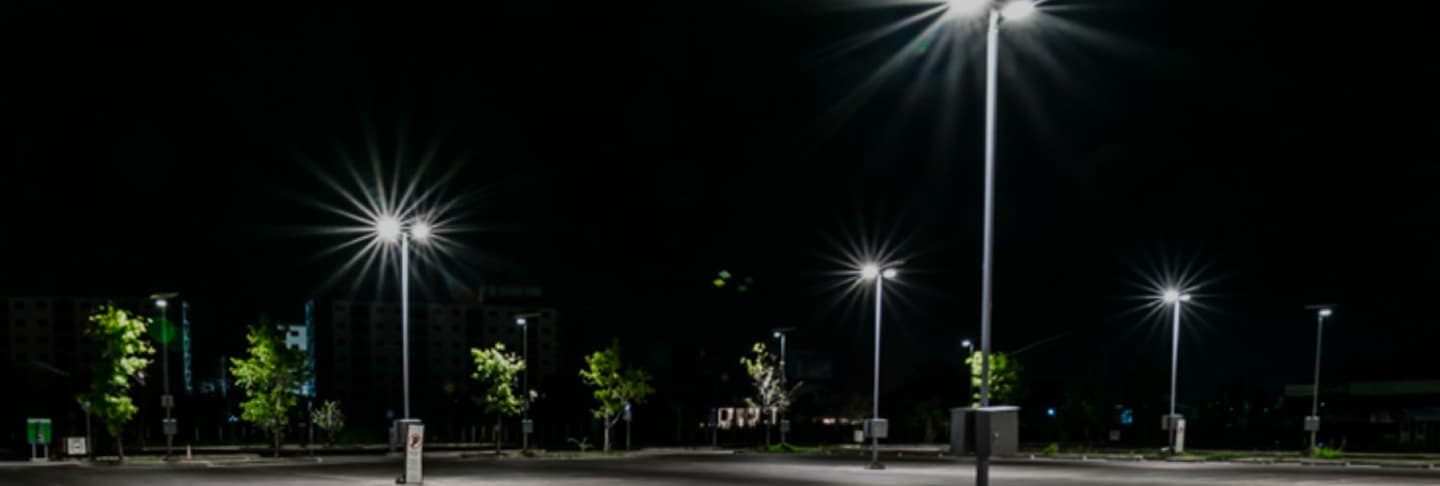

Exterior photosensor and motion sensing control for site lighting
Addressable control of individual fixtures
Energy usage monitoring and reporting
Battery backed-up real-time clock for power outages
Circadian rhythm programming for CCT controllable fixtures
DOMINO™ app provides a confirming QR code showing system is programmed
Integration with external (HVAC/BMS/EMS) systems for setback control or energy monitoring
Enable integration with enterprise-wide software for advanced IoT analytics such as space utilization reporting, wayfinding, and critical asset tracking
Typically not – the 87-401 is an exception as it is a “Bolt-on” Domino sensor and control node which can switch and dim a connected 0-10V dimmable fixture, but otherwise fixtures need to be Domino capable in order to use our sensors.
Yes, Domino has wirelessly connected control modules that can dim all standard 0-10 V and phase dimmed luminaires, from most any manufacturer from 120-347V.
No, Domino is supported as a singular closed system for lighting controls and does not work with other manufacturer’s control systems.
No Domino is a completely separate commercial based lighting control system that works independently from Starfish.
No, Domino is primarily a commercial grade lighting control system designed to meet all energy code requirements. (Use Starfish for residential applications)
Domino control components designed to provide a working system solution MUST be commissioned / programmed in order to work and function as intended. Domino components that are not commissioned properly WILL NOT WORK, so commissioning is required.
No, Domino can be completely commissioned on a local level with no WiFi or cloud connecton as the communications protocol is Bluetooth Mesh (another 2,4 GHz frequency)
Yes, we are very competitive with all major lighting control solutions in the market. Our wireless system greatly reduces labor install costs and reduces installation materials required. Our luminaire program with embedded sensors simplifies the fixture install process and requires no additional labor to prepare the fixture connection to the control network. Additionally, no other system components such as hubs/gateways are required to enable system functionality.
We supply Domino fixtures with embedded sensors as one complete component vs most of our competitors who supply “sensor-ready” fixtures which I like to refer to as “fixtures with holes in them”. This simplifies the process greatly in terms of ordering and faster delivery. To see the full list of our competitive advantages see the Domino Sales PPT.
DOMINO™ luminaires offer limitless configuration possibilities, allowing you to create custom lighting solutions for any application. You can create zones with up to 100 nodes, group fixtures for flexible control, and set up lighting scenes with the DOMINO app or connected wall switches.
The system also includes occupancy/vacancy sensors with adjustable light levels and time-off controls, advanced daylight harvesting technology, and task/trim tuning for optimized light levels. You can even set up schedules to match your specific needs and save energy.
Div 26 Specifications
