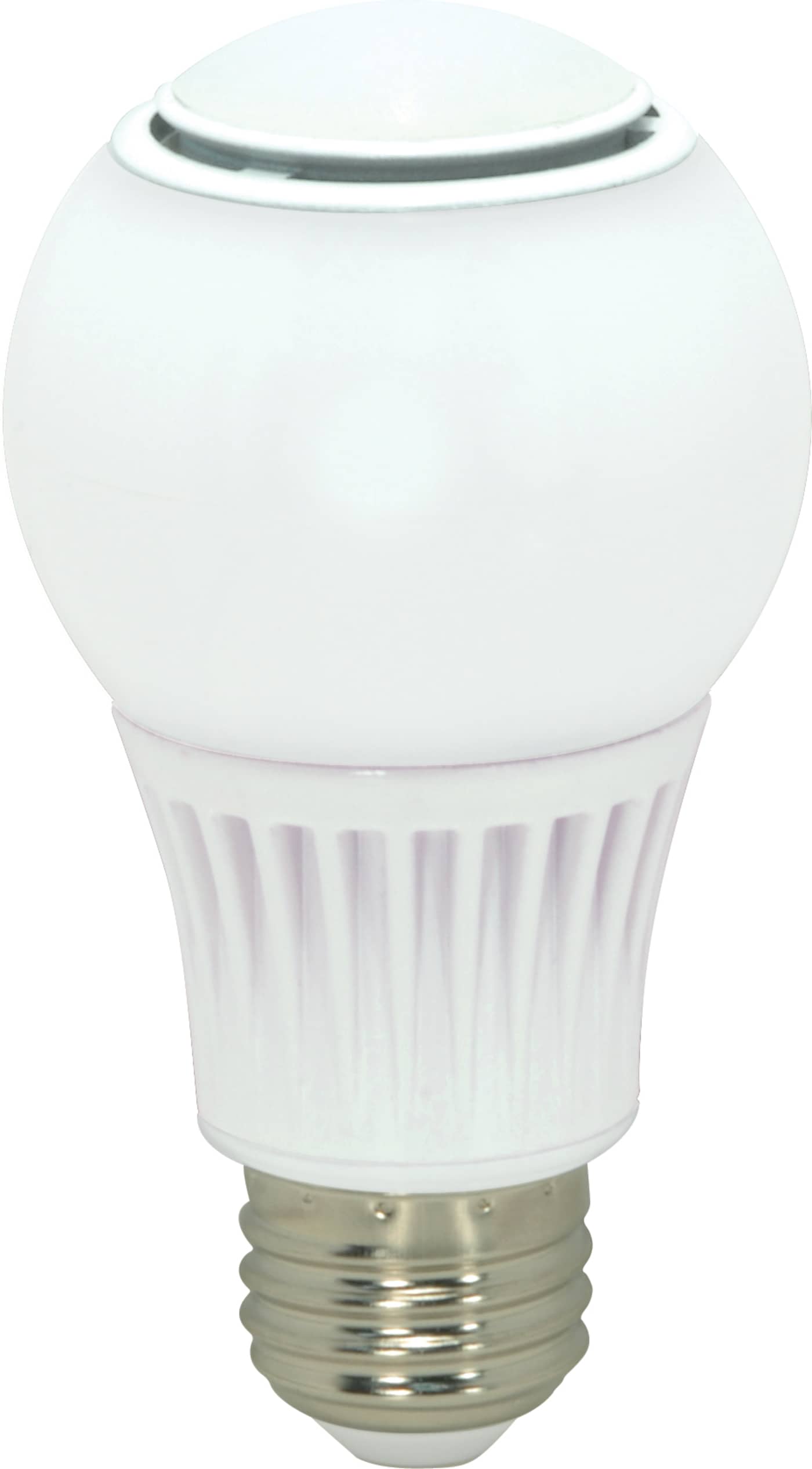

9.8A19/OMNI/LED/5000K/120V - S9036
S9036

9.8A19/OMNI/LED/5000K/120V

Discontinued
  • Discontinued - 9.8 watt
  • A19 LED
  • 5000K
  • Medium base
  • 360' beam spread
  • 120 volts
dimmable^dimmable^2
hours_rated^25k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3

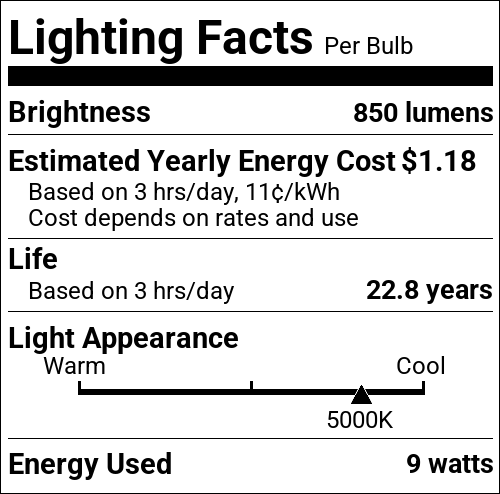

S9036 SpecificationsS9036 Lighting Facts Label
Description
Description
Discontinued - 9.8 watt; A19 LED; 5000K; Medium base; 360' beam spread; 120 volts
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeType A
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.082A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)360
Color TempNatural Light
CRI80+
Dimming Type120V only, Phase cut
Operating Temp-4F to +113F (-20C to +45C)
Lumens850L
Volts120v
Watts9.8W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA19
MOD Lamps2.38
MOL4.5
Additional Info
Warranty5-Years
Documents
Compliance
FCC CompliantYes
ROHS CompliantYes
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
Packaging
UPC045923090363
Case Cube0.7305
Case Height11.42
Case Length12.2
Case Quantity24
Case UPC10045923090360
Case Width9.06
EA Cube0.0269
EA Height6.1
EA Length2.76
EA Quantity1
EA Weight0.4
EA Width2.76
Inner Cube0.157
Inner Height5.31
Inner Length8.66
Inner Quantity6
Inner UPC20045923090367
Inner Width5.9
Pack TypeBox
Web Length4.5
Web Width2.38
